Hygipod IPS configurations designed for WC environments, combining robust sanitaryware options with fully integrated plumbing system.

Hygipod IPS configurations designed for WC environments, combining robust sanitaryware options with fully integrated plumbing system.

A half height janitorial unit and slophopper integrated plumbing system
1

Choose Your Configuration

Select from a range of Hygipod IPS sanitaryware configurations to suit your application.

CustomiseHygipod IPS Configurator
Choose your unit type
WC

Features

Infection prevention

Infection prevention

Hygipod offers superior infection prevention vs. IPS panels and is easy to clean.

Highly configurable

Highly configurable

Each unit arrives factory-assembled and air pressure-tested, reducing on-site installation risk.

PVC finishes

PVC finishes

With 45+ colours and finishes, Hygipod enhances the look and feel of any project.

Easy maintenance

Easy maintenance

With lockable hinged panels instead of snap panels, maintenance is simple and secure.

Quick installation

Quick installation

Thanks to prefabrication and a bracket system, a basin can be installed in just 45 minutes.

Fast lead times

Fast lead times

From sign-off, Hygipod IPS is built and delivered in 2–3 weeks with sanitaryware included.

Type

Alternative widths and depths available.

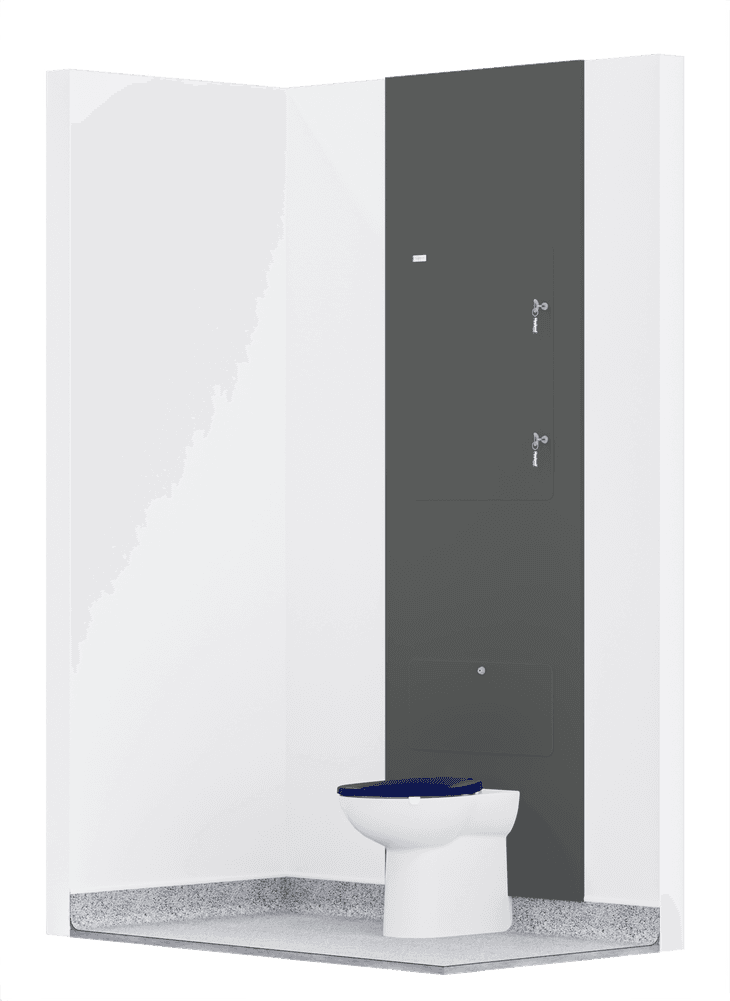

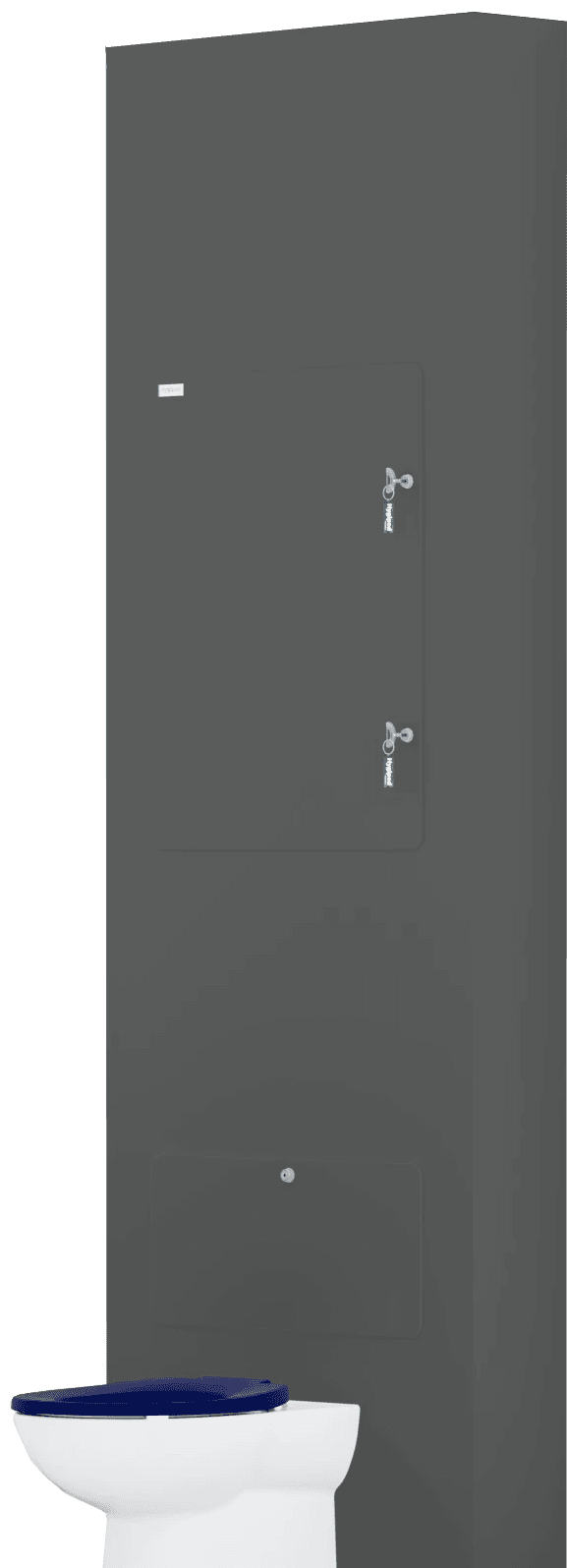

Flat configurations provide a surface-mounted IPS solution with a minimal depth of 15 mm, offering a clean, hygienic finish with minimal projection from the wall.

Flat

Type

Alternative widths and depths available.

Flat configurations provide a surface-mounted IPS solution with a minimal depth of 15 mm, offering a clean, hygienic finish with minimal projection from the wall.

Flat

Height Options

Various Heights Available

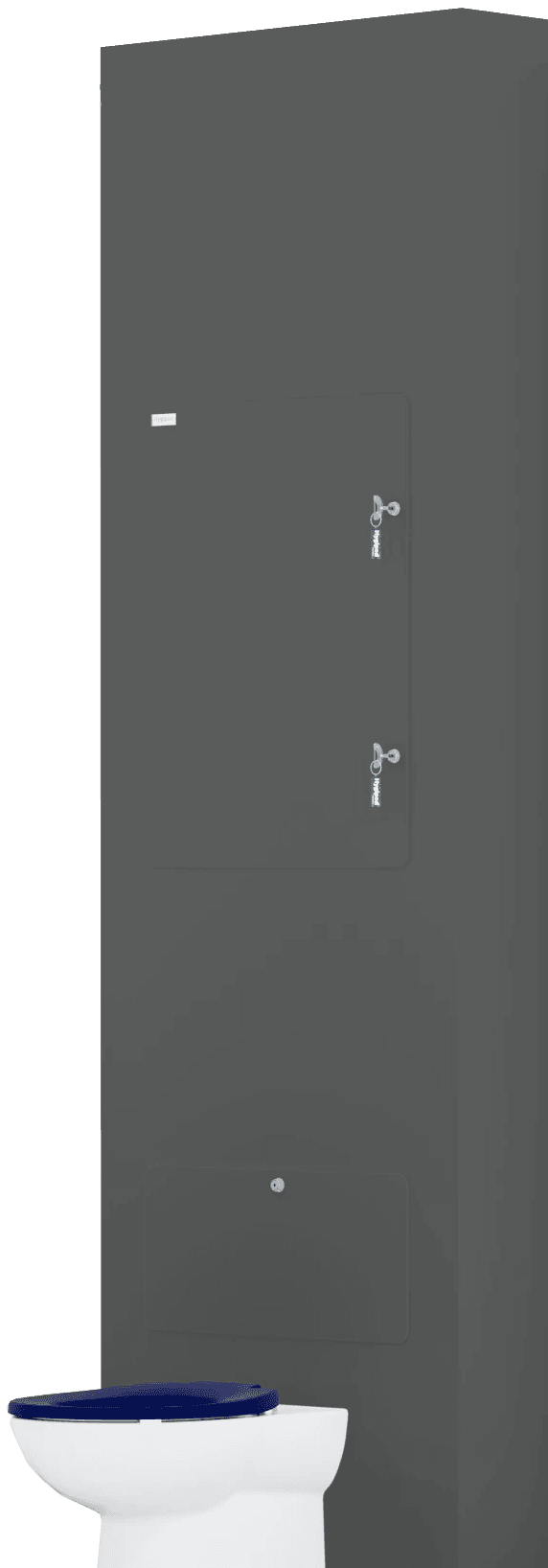

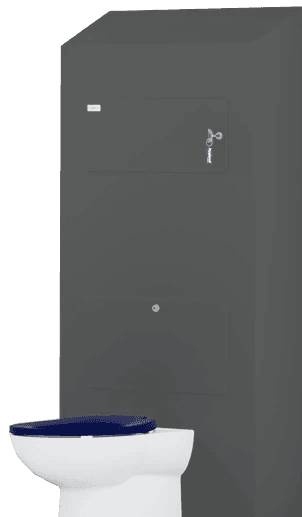

The Hygipod IPS Standard WC is available in through-ceiling, up-to-ceiling, and half-height with sloping top configurations, while the Doc M WC is available in through-ceiling and up-to-ceiling only. Through-ceiling units extend 50–100 mm above the ceiling line with a ceiling trim finish, up-to-ceiling units terminate flush at the soffit, and the half-height option features an angled sloping top to discourage item placement and support hygiene compliance.

Up to Ceiling
Half Height
Through Ceiling

Hygipod IPS panels are manufactured from single PVC sheets up to 3000 mm for solid colours and 2440 mm for Essence finishes. Where these heights are exceeded, a horizontal joint is introduced at the upper section to maintain a consistent, hygienic finish.

Height Options

Various Heights Available

The Hygipod IPS Standard WC is available in through-ceiling, up-to-ceiling, and half-height with sloping top configurations, while the Doc M WC is available in through-ceiling and up-to-ceiling only. Through-ceiling units extend 50–100 mm above the ceiling line with a ceiling trim finish, up-to-ceiling units terminate flush at the soffit, and the half-height option features an angled sloping top to discourage item placement and support hygiene compliance.

Up to Ceiling
Half Height
Through Ceiling

Hygipod IPS panels are manufactured from single PVC sheets up to 3000 mm for solid colours and 2440 mm for Essence finishes. Where these heights are exceeded, a horizontal joint is introduced at the upper section to maintain a consistent, hygienic finish.

Height Options

Various Heights Available

The Hygipod IPS Standard WC is available in through-ceiling, up-to-ceiling, and half-height with sloping top configurations, while the Doc M WC is available in through-ceiling and up-to-ceiling only. Through-ceiling units extend 50–100 mm above the ceiling line with a ceiling trim finish, up-to-ceiling units terminate flush at the soffit, and the half-height option features an angled sloping top to discourage item placement and support hygiene compliance.

Up to Ceiling
Half Height
Through Ceiling

Hygipod IPS panels are manufactured from single PVC sheets up to 3000 mm for solid colours and 2440 mm for Essence finishes. Where these heights are exceeded, a horizontal joint is introduced at the upper section to maintain a consistent, hygienic finish.

Standard WC
Standard WC

Sanitaryware

A selection of compatible sanitaryware

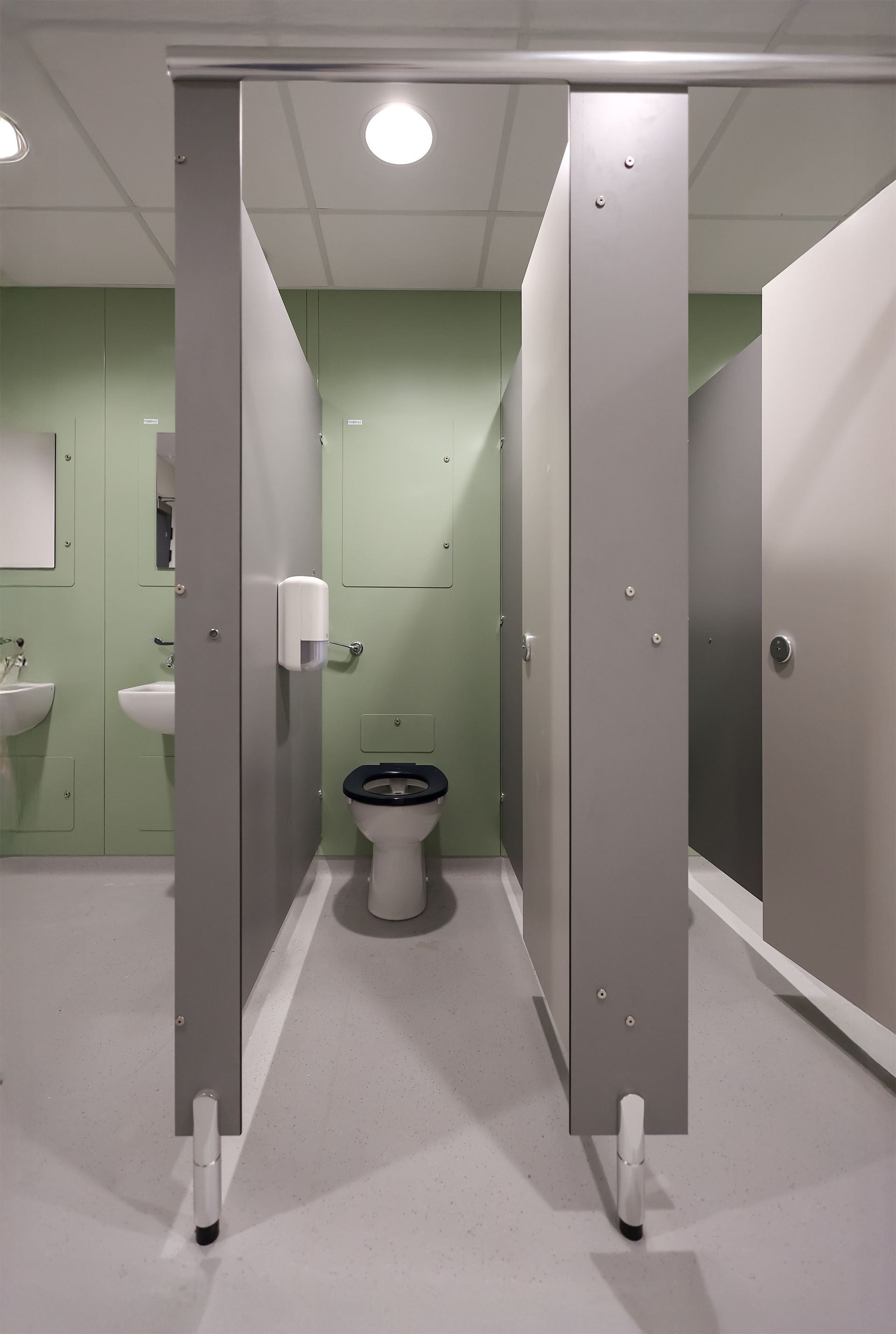

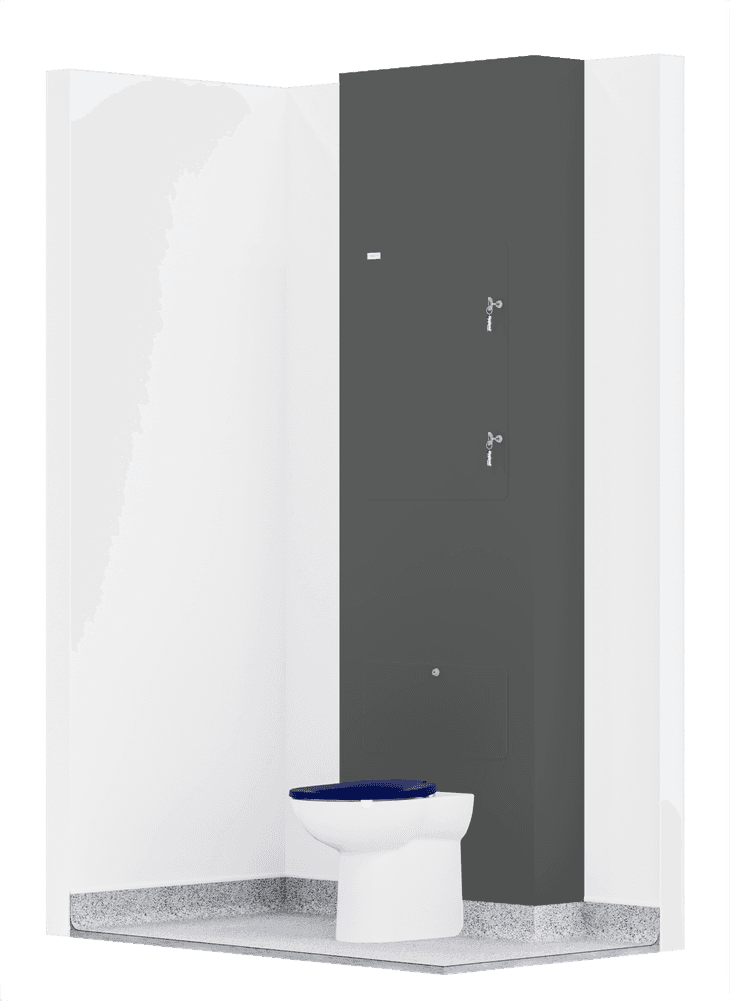

Designed for standard WC facilities in healthcare environments, the Hygipod IPS standard WC provides a safe, hygienic solution for wards, patient areas, and staff facilities.

Standard WC
Standard WC

Sanitaryware

A selection of compatible sanitaryware

Designed for standard WC facilities in healthcare environments, the Hygipod IPS standard WC provides a safe, hygienic solution for wards, patient areas, and staff facilities.

Hygipod plinth
Hygipod plinth
Direct to Floor
Direct to Floor
Prefinished plinth
Prefinished plinth

Hygipod IPS offers three floor interface options to suit different installation requirements. These include a Trovex-supplied plinth for a hygienic, coved floor finish, direct-to-floor installation onto existing surfaces, and a prefinished plinth for a clean, finished appearance without floor coving.

1

Choose configuration

Select from a range of Hygipod IPS sanitaryware configurations to suit your application.

2

Customise IPS

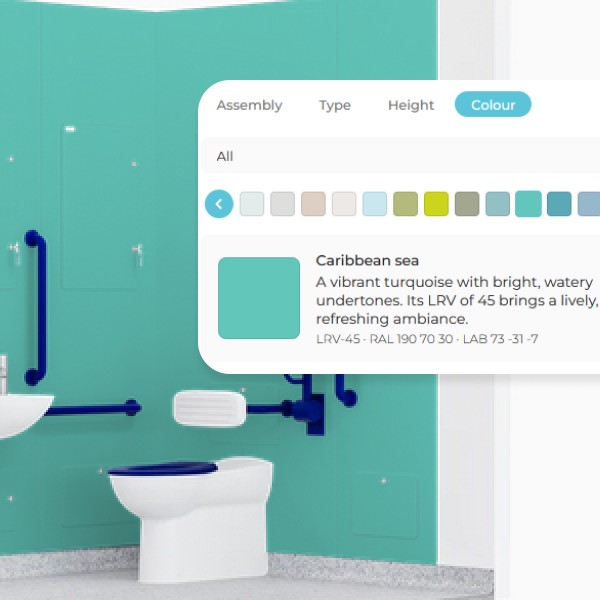

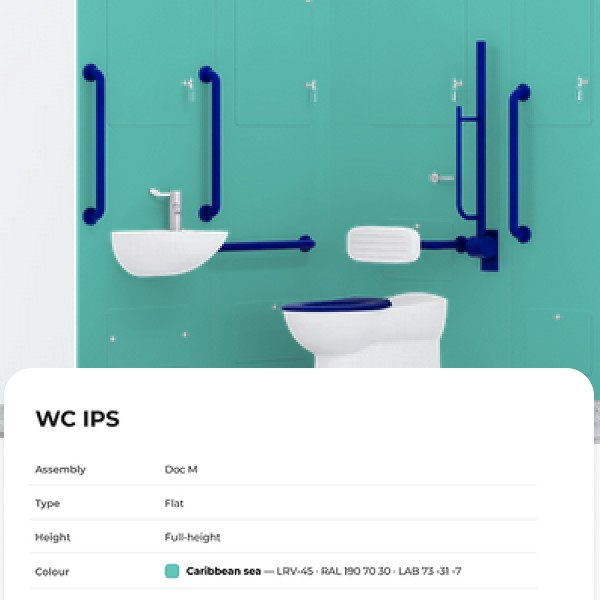

Adjust mounting type, height, and panel colour to match your project requirements and design preferences.

3

Share design

Export your configured design to share with colleagues or submit directly to receive a detailed quote for your project.

Integrated plumbing system

WC FAQs

WC FAQs

There are three options. The Hygipod plinth is the most common, supplied by Trovex and installed before floor finishes, allowing vinyl flooring to cove up to it for a hygienic seal at floor level. Direct to floor suits projects where the floor finish already exists, though it's not recommended where the ceiling is solid. The prefinished plinth is similar to the Hygipod plinth but laminated in Trovex PVC, providing a finished appearance where vinyl coving isn't required.

Yes. As well as full-height options that run to or through the ceiling, the Hygipod IPS is available in two half-height variants: flat top and sloping top. Both can be manufactured to any height to suit the installation. The sloping top option is commonly specified at 1,450mm and is designed to discourage items being placed on top of the unit, supporting hygiene compliance.

The Hygipod IPS comes in five configurations: flat, flush, single-return, double-return, and wall-to-wall. All share the same seamless, easy-clean PVC finish and compliant design. The standard width is 750mm across most configurations, with the wall-to-wall option spanning between opposing walls at a project-specific width. Alternative widths and depths are available across the range.

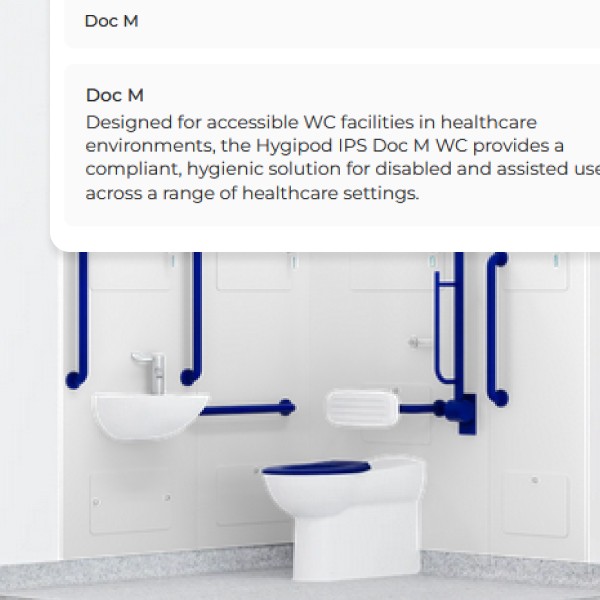

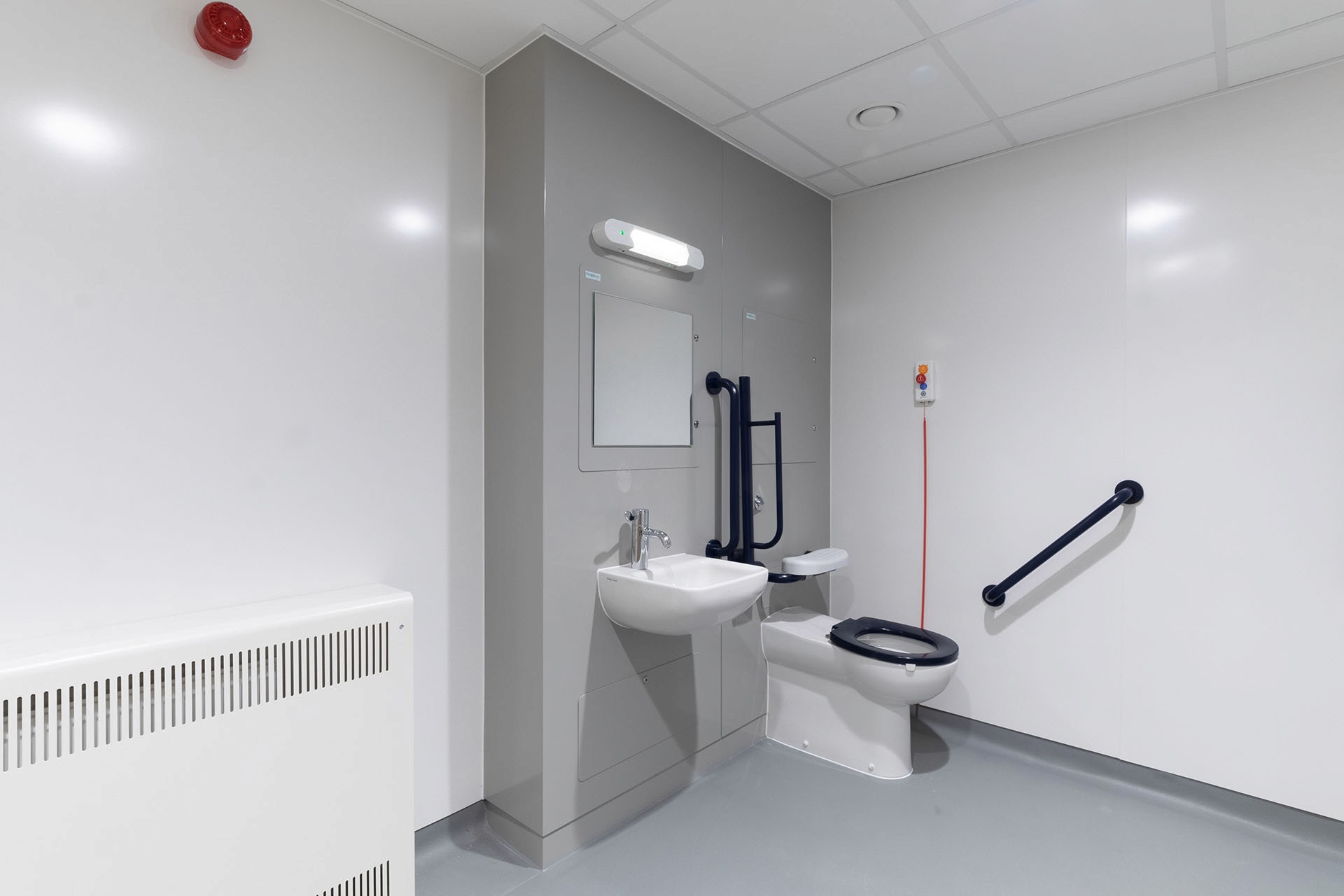

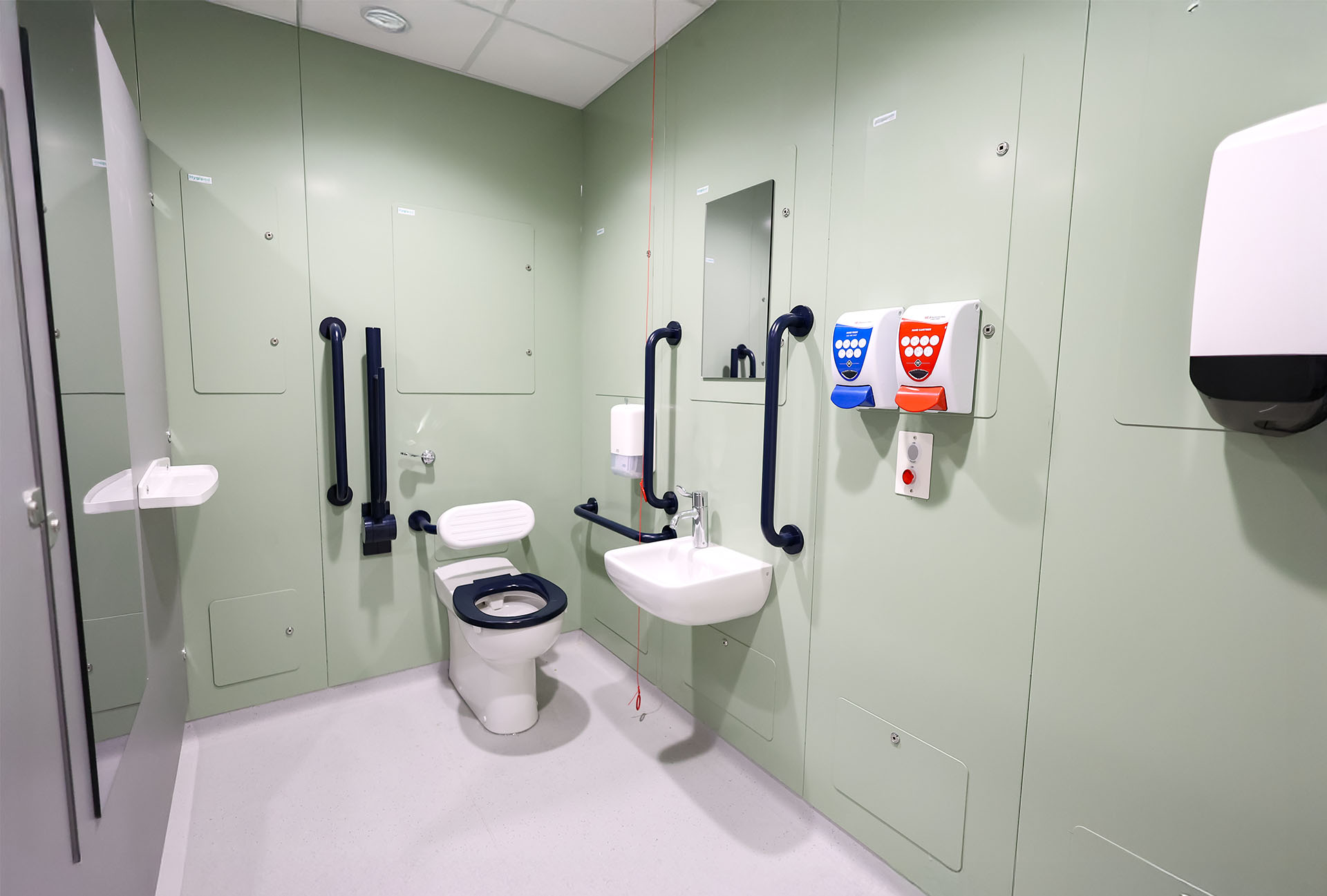

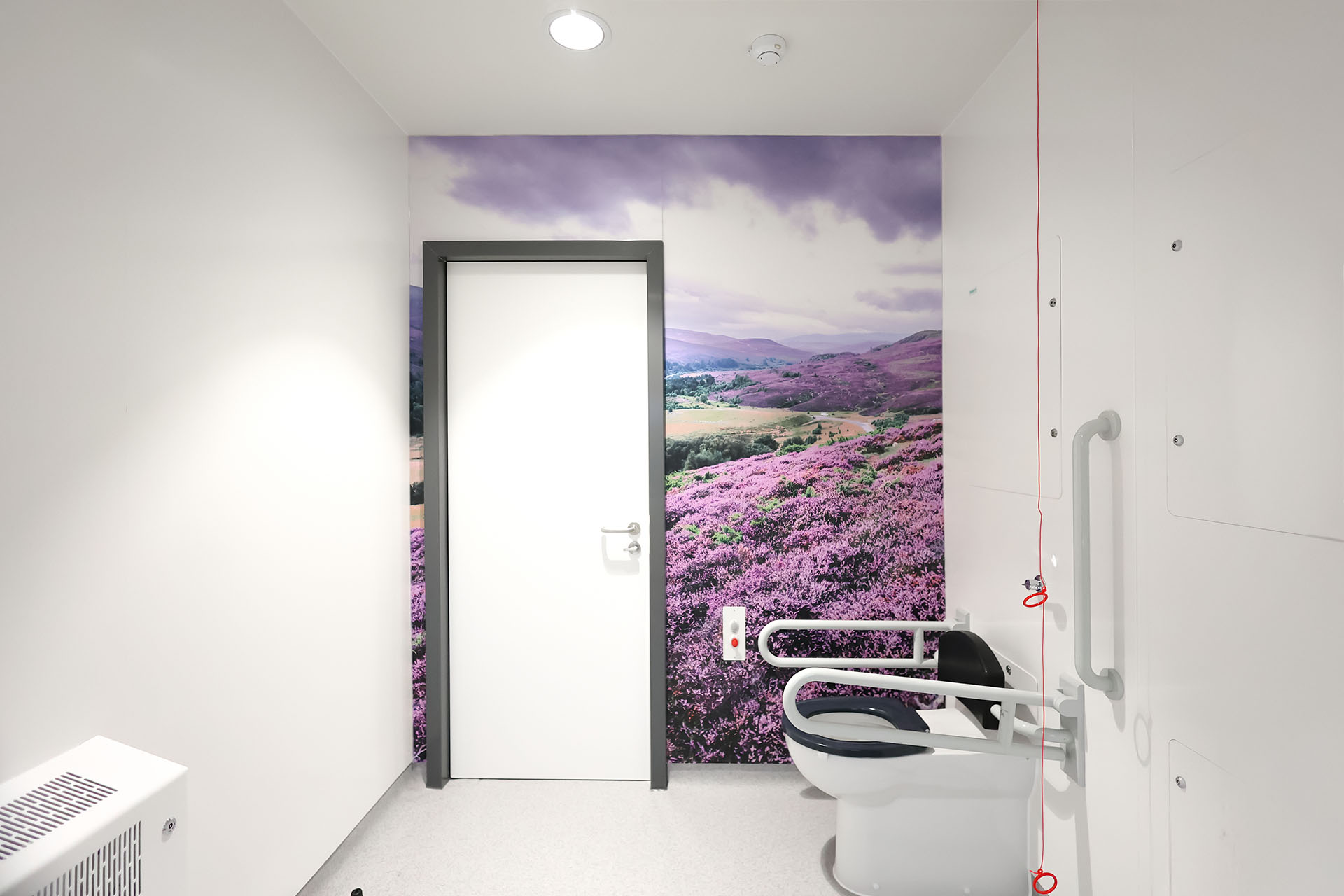

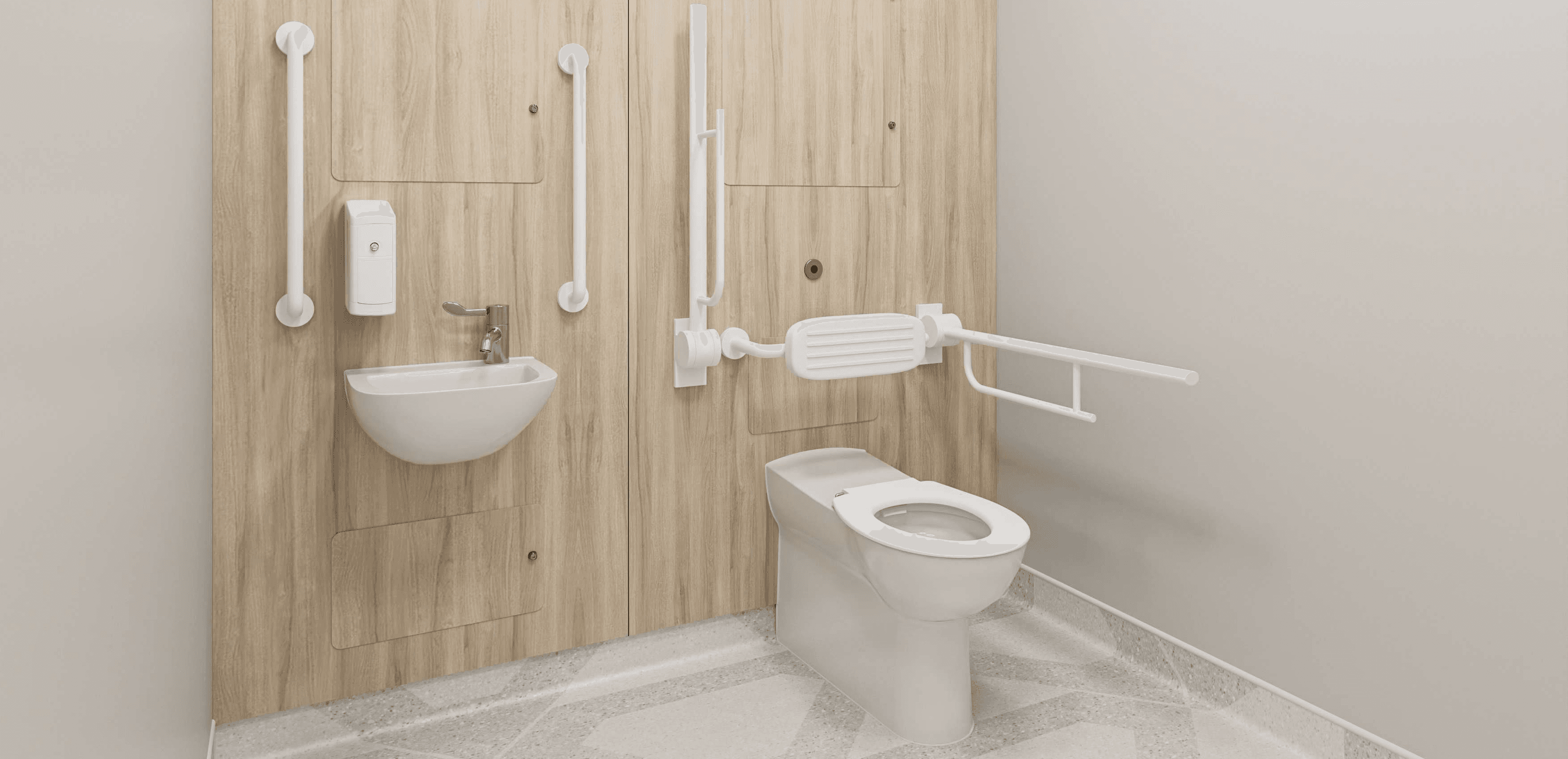

The Hygipod IPS WC is available in two variants to suit both standard and accessible requirements. The Standard WC provides a safe, hygienic solution for general WC facilities across wards, patient areas and staff facilities. The Doc M variant is designed for accessible WC provision, delivering a compliant, hygienic solution for disabled and assisted use across a range of healthcare settings. Both are supplied pre-plumbed and pre-tested, reducing on-site work and supporting infection prevention from installation through to daily use.
