Hygiscreen is Trovex's internal glazed screen system combining fire-rated toughened glass with PVC-wrapped frames for hygienic observation windows. Built on the Hygidoor platform, available in 45+ colours.

Are blinds available with Hygiscreen?

Yes, integrated venetian blinds are available for NFR (non-fire-rated) screens only, using clear double glazed units with integral blinds.

What are the glazing options?

Option A: Clear 15mm single glazed fire-resisting safety glazing (NFR, FD30 or FD60). Option B: Clear double-glazed unit with integral venetian blinds (NFR only).

What colours and finishes are available?

Frames available in Diamond White as standard, or any colour from Trovex Ambience, Radiance, Resilience, or Essence ranges - 45+ options. PVC-wrapped architrave is 60mm wide.

Are x-ray protection options available?

Yes, Hygiscreen can be specified with x-ray protection including lead-lined frames and lead-glass for radiology and imaging departments.

What frame depths are available?

Frames are manufactured to suit your specific partition thickness using standard Hygidoor structural plywood frame with PVC wrapping and factory-cut beadings.

Where can I download Hygiscreen technical resources?

BIM files, installation guides, CAD drawings, NBS specifications, and 3D DWG files are available in the Resource Library. Contact Trovex for custom requirements.

Hygiscreen – Hygienic Internal Windows & Screens for Healthcare

Q: What fire ratings are available?

Hygiscreen is available in NFR, FD30, and FD60 options. Fire-rated screens use 15mm single glazed fire-resisting safety glazing.

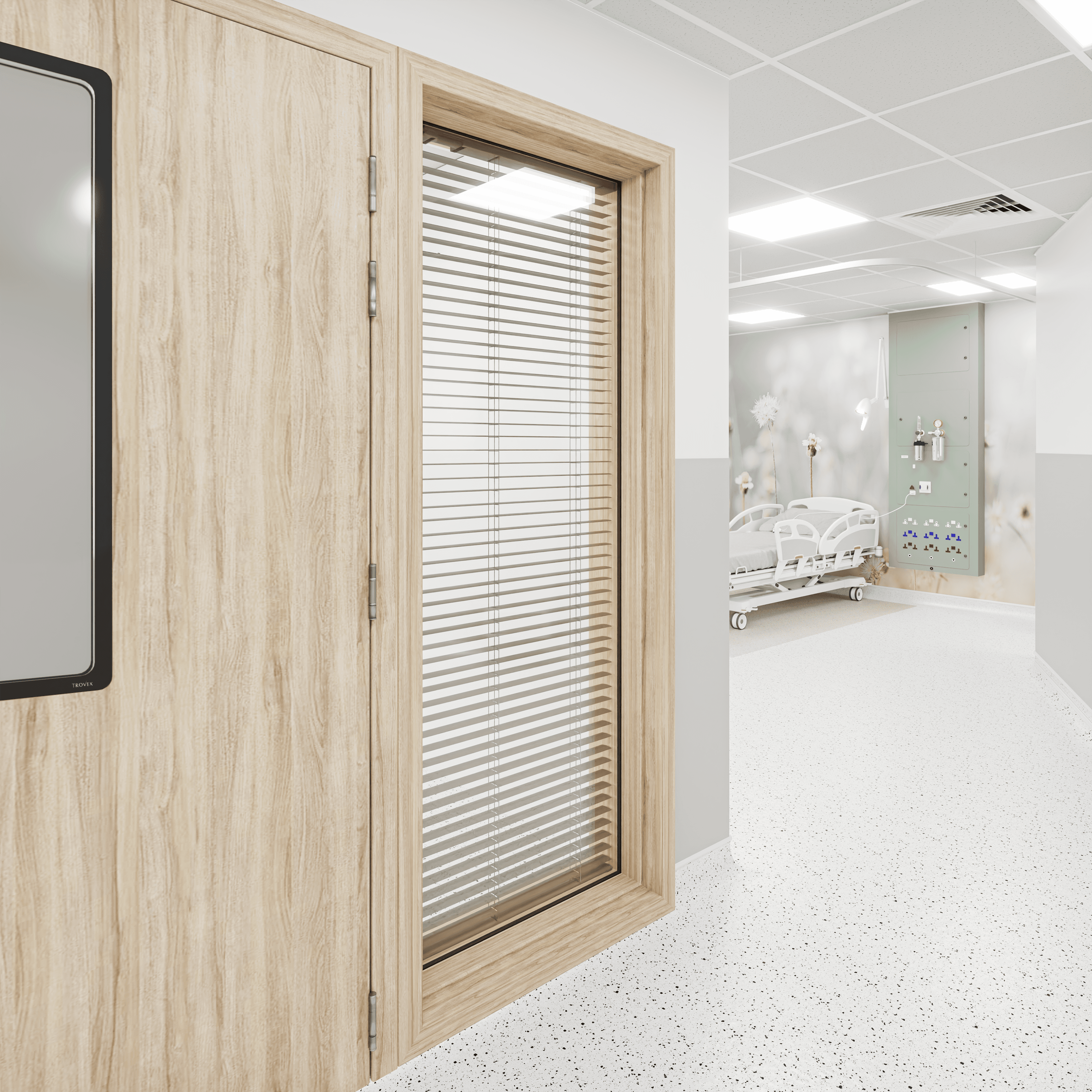

Designed for healthcare, Hygiscreen is a durable, hygienic internal window with fire-rated vision panels and PVC-wrapped frame ideal for infection control.

Request a quote

Hygiscreen window between Hygidoors with diamond PVC wall cladding

Features

Why choose Hygiscreen?

Infection prevention

A hygienic PVC window that’s easy to clean, with minimal joins for infection control.

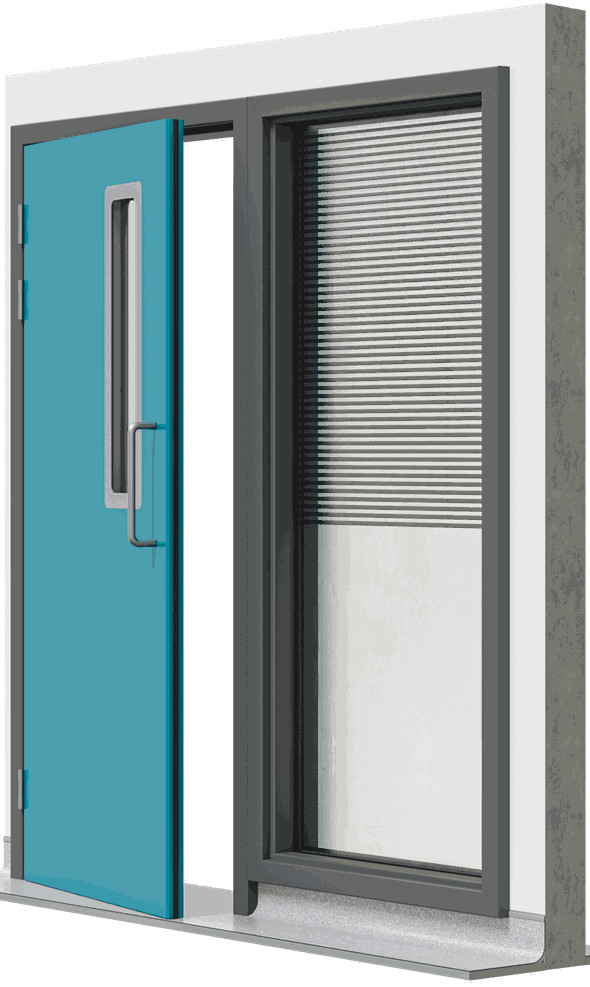

One product family

Combine Hygiscreen with Trovex systems for a safer, fully hygienic ward interior finish.

PVC finishes

Available in 45+ colours and finishes, Hygiscreen enhances any project’s appearance.

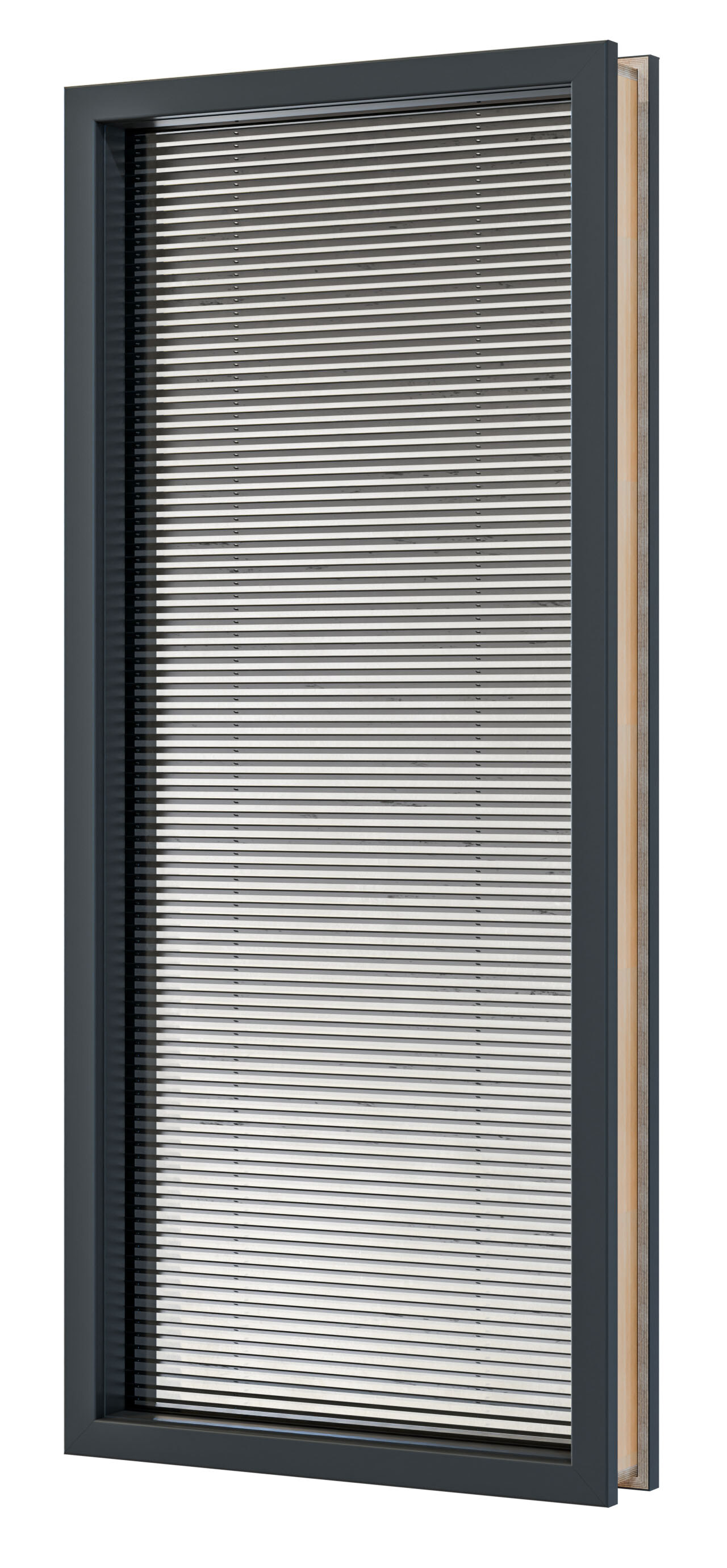

Internal blinds

Available with or without internal blinds for patient and staff privacy.

Quick installation

Built on the Hygidoor platform for quick installation using prefabricated frames.

Made in the UK

Proudly designed and manufactured in the UK by Trovex for assured quality.

Components

In a typical pack

Hygiscreen pre-assembled frame with temporary bracing

Frame with bracing

Pre-assembled timber frame with temporary bracing to ensure installation is aligned.

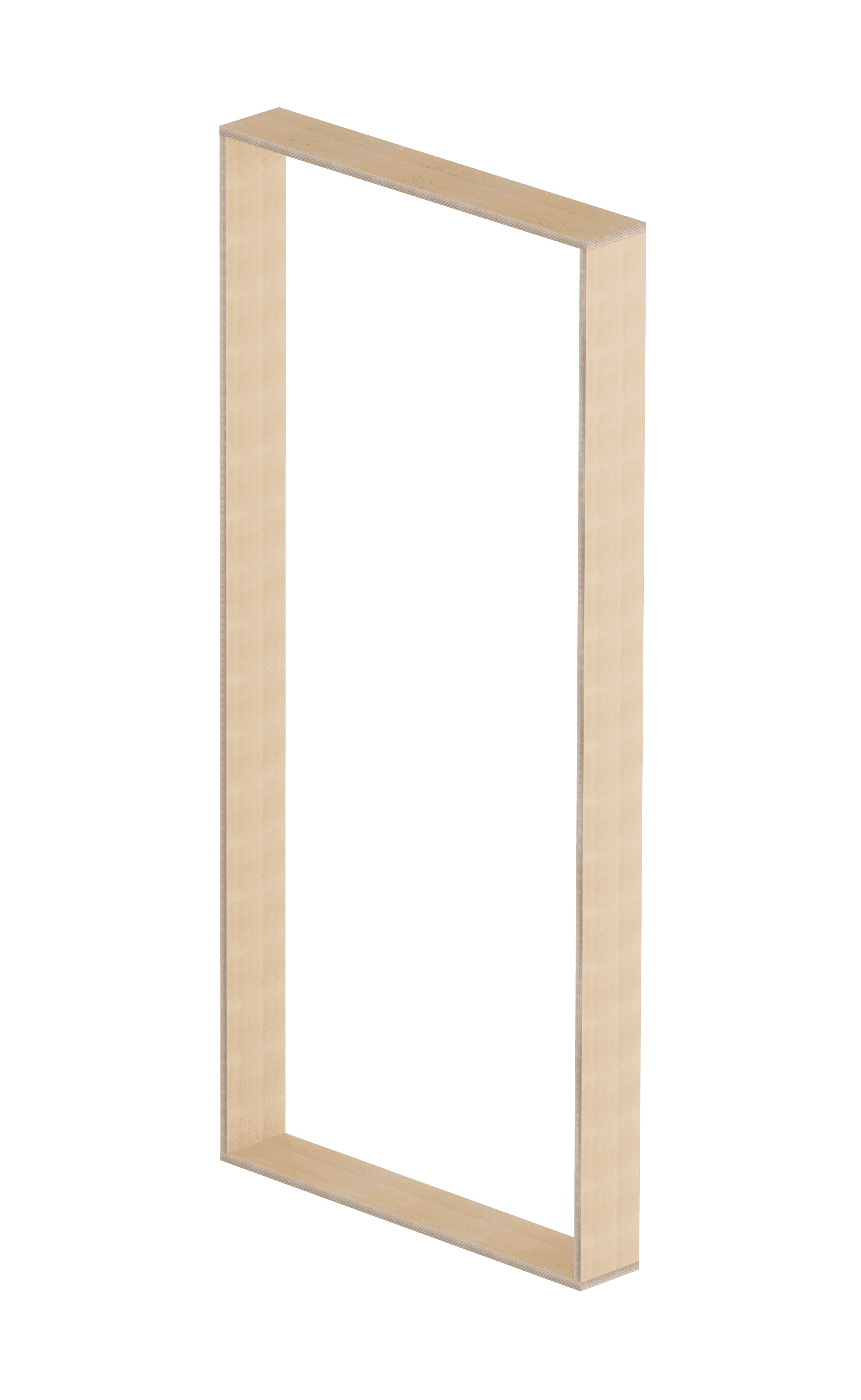

Hygiscreen frame

Timber mounting frame designed to receive the Hygiscreen glass panel and perimeter architraves.

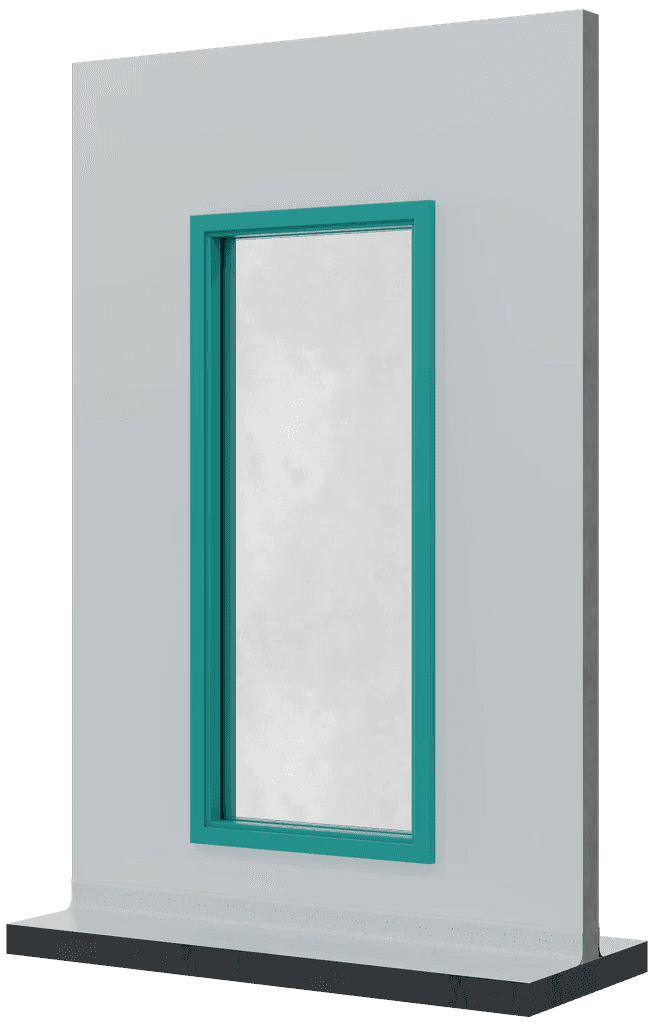

Fire-rated toughened glass panel for Hygiscreen

Glass screen

Fire-rated toughened glass panel providing clear visibility within the Hygiscreen assembly.

10 Hygiscreen resources

Resource library

Access a comprehensive library of technical resources to support your project, including BIM files, installation guides, CAD drawings, NBS clauses, datasheets, and 3D DWGs. Everything you need to specify, design, install, and deliver Trovex solutions with confidence.

View resources

10 Hygiscreen resources

Resource library

View resources

10 Hygiscreen resources

Resource library

View resources

Hygiscreen

Frequently asked questions

Hygiscreen is Trovex's internal glazed screen system for healthcare environments. It combines fire-rated toughened glass with PVC-wrapped frames for observation windows that are hygienic and easy to clean. Built on the Hygidoor platform, available in 45+ colours.

Hygiscreen is available in NFR, FD30 and FD60 options. Fire-rated screens use 15mm single glazed fire-resisting safety glazing.

Yes, integrated venetian blinds are available but for NFR (non-fire-rated) screens only. Blind option uses clear double glazed units with integral venetian blinds.

Option A: Clear 15mm single glazed fire-resisting safety glazing (NFR, FD30 or FD60 rated).

Option B: Clear double-glazed unit with integral venetian blinds (NFR only).

Hygiscreen frames are available in Diamond White as standard, or any colour from the Trovex Ambience, Radiance, Resilience, or Essence ranges - 45+ options. PVC-wrapped architrave is 60mm wide with preformed styling.

Hygiscreen is available in NFR, FD30 and FD60 options. Fire-rated screens use 15mm single glazed fire-resisting safety glazing.

Yes, integrated venetian blinds are available but for NFR (non-fire-rated) screens only. Blind option uses clear double glazed units with integral venetian blinds.

Option A: Clear 15mm single glazed fire-resisting safety glazing (NFR, FD30 or FD60 rated).

Option B: Clear double-glazed unit with integral venetian blinds (NFR only).
