Clinical Wash
Hand Basin

Hygipod IPS configurations for clinical handwashing and scrub environments, combining robust sanitaryware options with fully integrated plumbing systems .

A half height janitorial unit and slophopper integrated plumbing system
A half height janitorial unit and slophopper integrated plumbing system

Clinical Wash
Hand Basin

Clinical Wash
Hand Basin

Hygipod IPS configurations for clinical handwashing and scrub environments, combining robust sanitaryware options with fully integrated plumbing systems .

Hygipod IPS configurations for clinical handwashing and scrub environments, combining robust sanitaryware options with fully integrated plumbing systems .

A wash hand basin integrated plumbing system
1

Choose Your Configuration

Select from a range of Hygipod IPS sanitaryware configurations to suit your application.

CustomiseHygipod IPS Configurator
Choose your unit type
Clinical WHB

Features

Infection prevention

Infection prevention

Seamless thermoformed corners eliminate joins and bacterial harbours, keeping surfaces easy to clean.

Highly configurable

Highly configurable

Each unit arrives factory-assembled and air pressure-tested, reducing on-site installation risk.

PVC finishes

PVC finishes

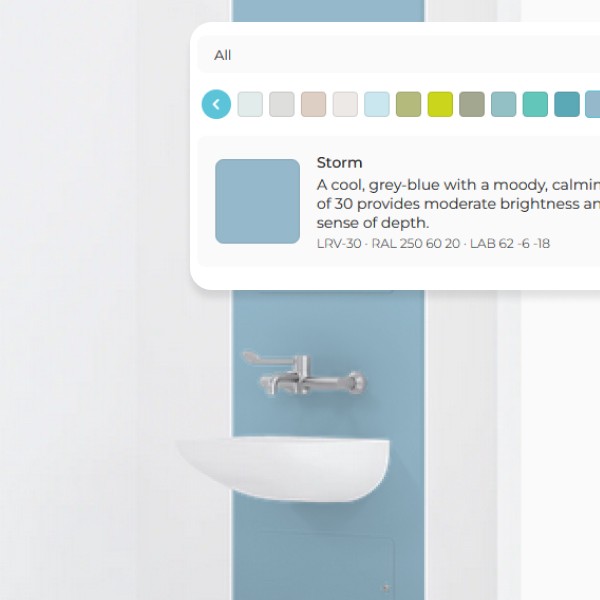

With 45+ colours and finishes, Hygipod enhances the look and feel of any project.

Easy maintenance

Easy maintenance

Projection hinged access doors with 180° opening and square profile key locks make servicing simple and secure.

Quick installation

Quick installation

Prefabrication and a bracket system ensures a basin can be installed in just 45 minutes.

Accessibility compliant

Accessibility compliant

Configured to meet HBN-0010 Part C for safe use in healthcare environments.

Type

Alternative widths and depths available.

Flat configurations provide a surface-mounted IPS solution with a minimal depth of 15 mm, offering a clean, hygienic finish with minimal projection from the wall.

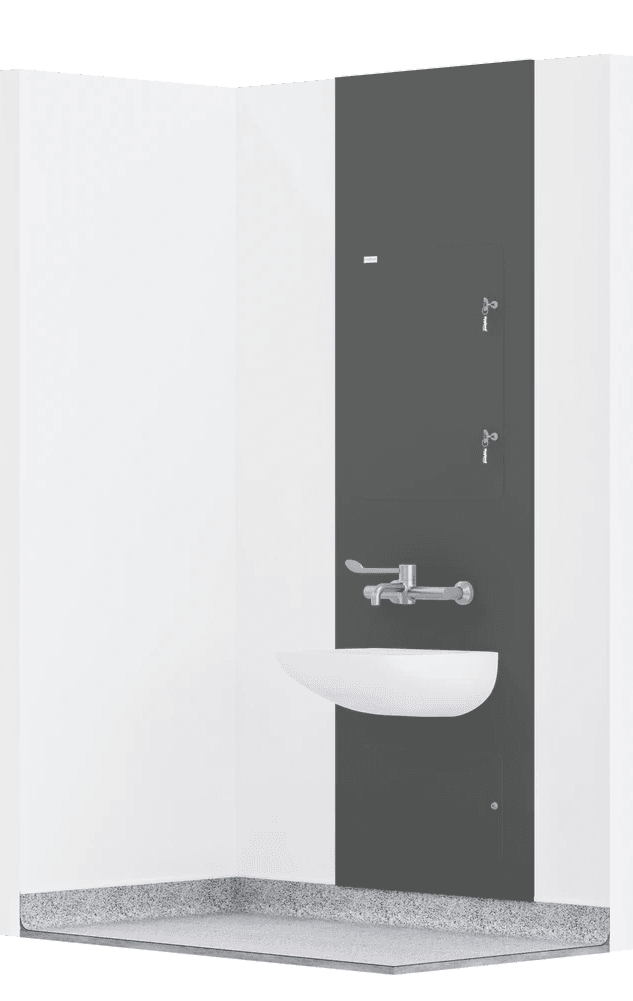

A flat type integrated plumbing system

Type

Alternative widths and depths available.

Flat configurations provide a surface-mounted IPS solution with a minimal depth of 15 mm, offering a clean, hygienic finish with minimal projection from the wall.

A flat type integrated plumbing system

Height Options

Various Heights Available

The Hygipod IPS Clinical Wash Hand Basin is available in through-ceiling, up-to-ceiling, and half-height with sloping top configurations. Through-ceiling units extend 50–100 mm above the ceiling line with a ceiling trim finish, up-to-ceiling units terminate flush at the soffit, and the half-height option features an angled sloping top to discourage item placement and support hygiene compliance.

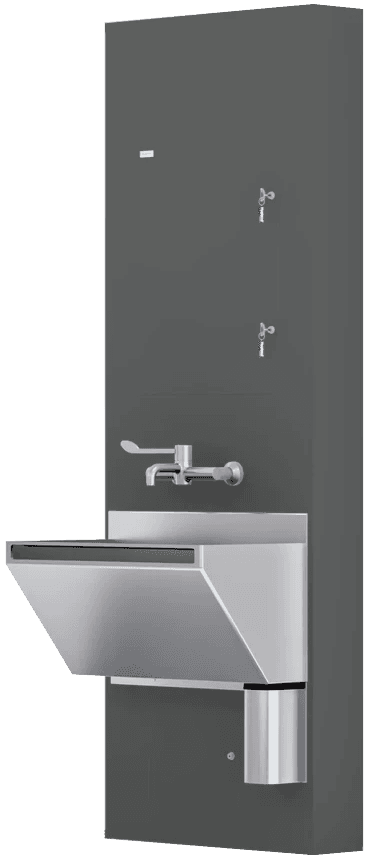

A up to ceiling type integrated plumbing system
Up to Ceiling
A half height sloping top type integrated plumbing system
Half Height
A through ceiling type integrated plumbing system
Through Ceiling

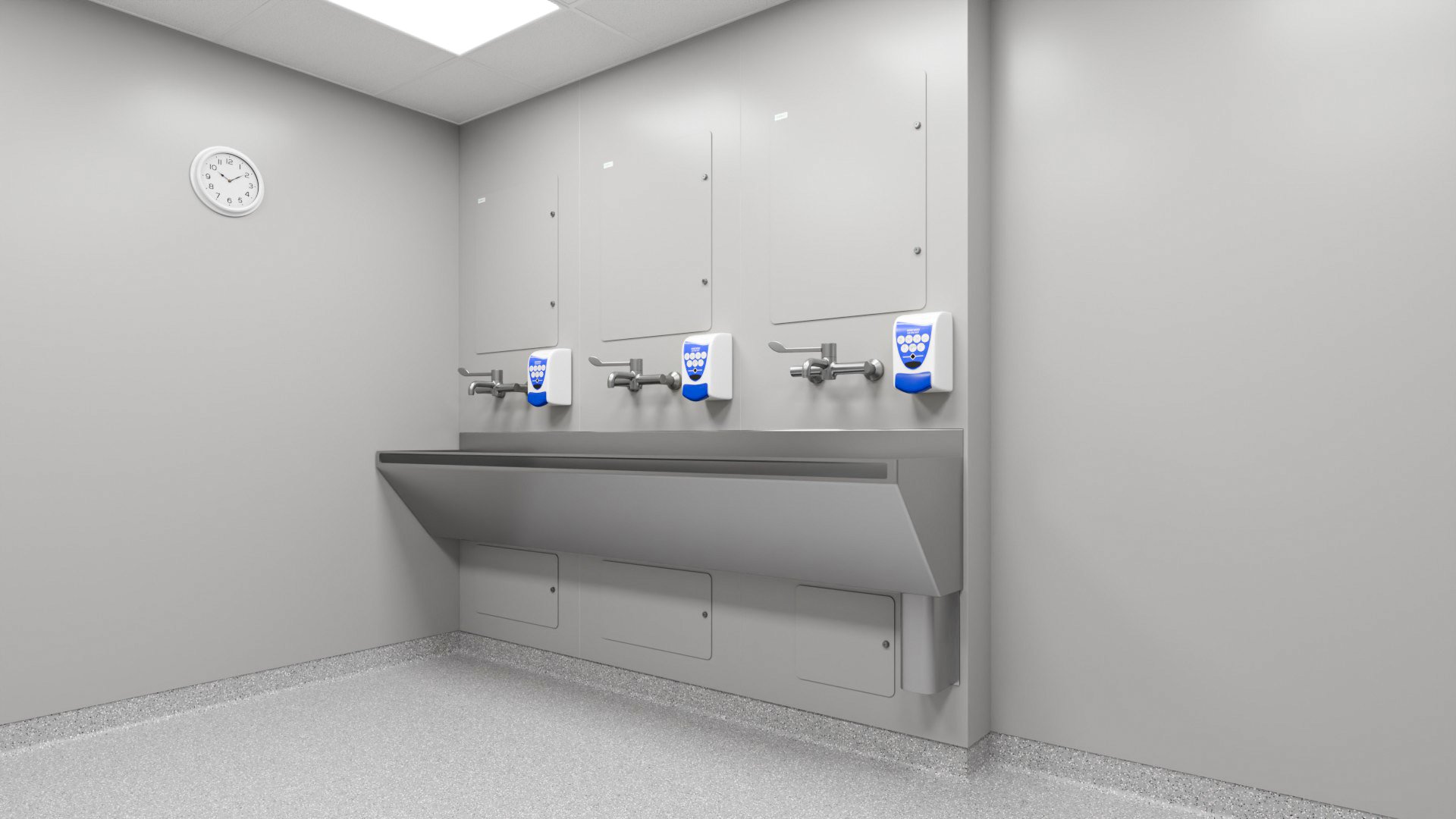

Silver lining single return type integrated plumbing system

Hygipod IPS panels are manufactured from single PVC sheets up to 3000 mm for solid colours and 2440 mm for Essence finishes. Where these heights are exceeded, a horizontal joint is introduced at the upper section to maintain a consistent, hygienic finish.

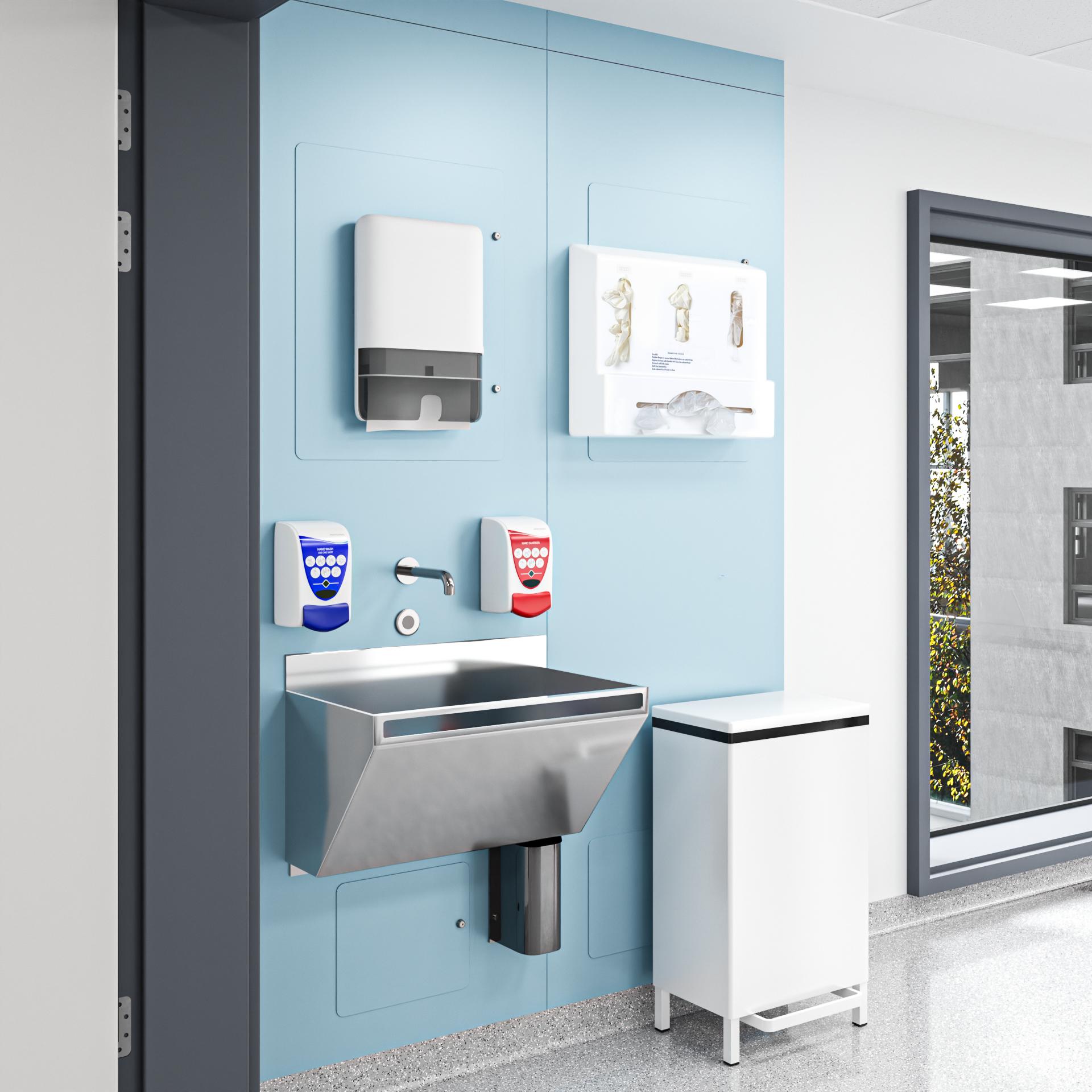

A double return type azure integrated plumbing system

Height Options

Various Heights Available

The Hygipod IPS Clinical Wash Hand Basin is available in through-ceiling, up-to-ceiling, and half-height with sloping top configurations. Through-ceiling units extend 50–100 mm above the ceiling line with a ceiling trim finish, up-to-ceiling units terminate flush at the soffit, and the half-height option features an angled sloping top to discourage item placement and support hygiene compliance.

A up to ceiling type integrated plumbing system
Up to Ceiling
A half height sloping top type integrated plumbing system
Half Height
A through ceiling type integrated plumbing system
Through Ceiling
Silver lining single return type integrated plumbing system

Hygipod IPS panels are manufactured from single PVC sheets up to 3000 mm for solid colours and 2440 mm for Essence finishes. Where these heights are exceeded, a horizontal joint is introduced at the upper section to maintain a consistent, hygienic finish.

A double return type azure integrated plumbing system

Height Options

Various Heights Available

The Hygipod IPS Clinical Wash Hand Basin is available in through-ceiling, up-to-ceiling, and half-height with sloping top configurations. Through-ceiling units extend 50–100 mm above the ceiling line with a ceiling trim finish, up-to-ceiling units terminate flush at the soffit, and the half-height option features an angled sloping top to discourage item placement and support hygiene compliance.

A up to ceiling type integrated plumbing system
Up to Ceiling

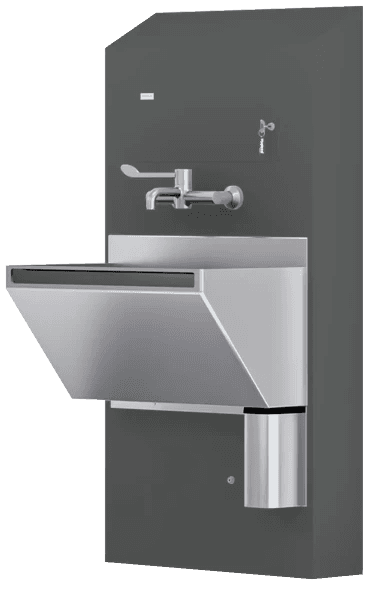

A half height sloping top type integrated plumbing system
Half Height

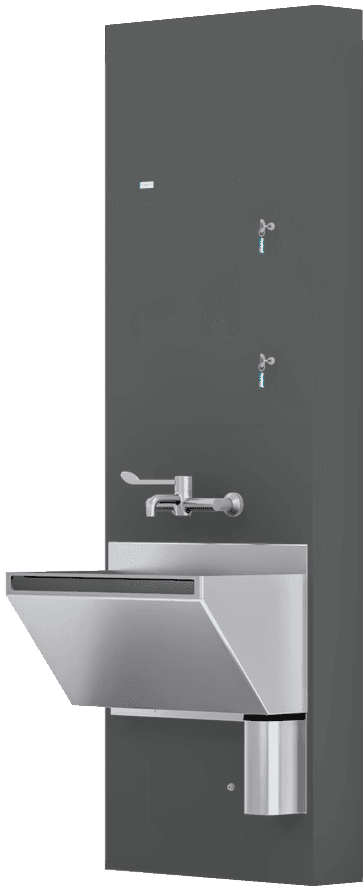

A through ceiling type integrated plumbing system
Through Ceiling
Silver lining single return type integrated plumbing system

Hygipod IPS panels are manufactured from single PVC sheets up to 3000 mm for solid colours and 2440 mm for Essence finishes. Where these heights are exceeded, a horizontal joint is introduced at the upper section to maintain a consistent, hygienic finish.

A double return type azure integrated plumbing system

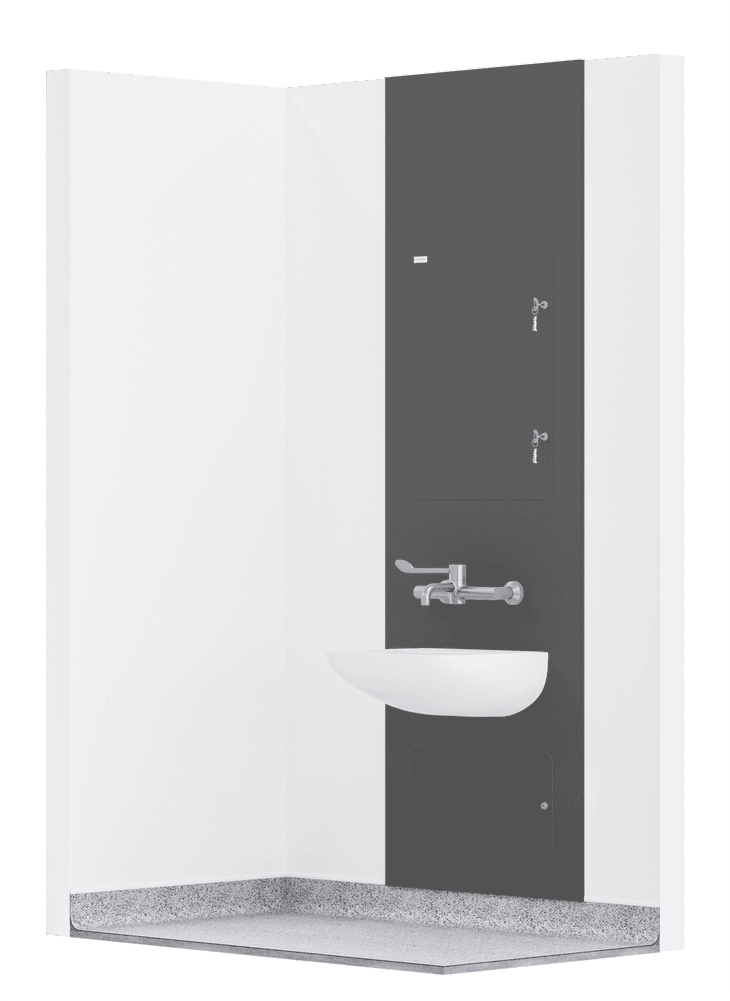

Wash hand basin integrated plumbing system
Wash Hand Basin

Sanitaryware

A selection of compatible sanitaryware

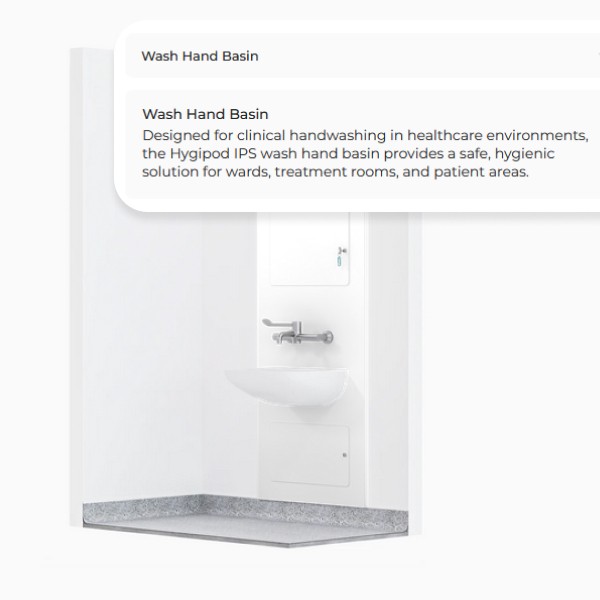

Designed for clinical handwashing in healthcare environments, the Hygipod IPS wash hand basin provides a safe, hygienic solution for wards, treatment rooms, and patient areas.

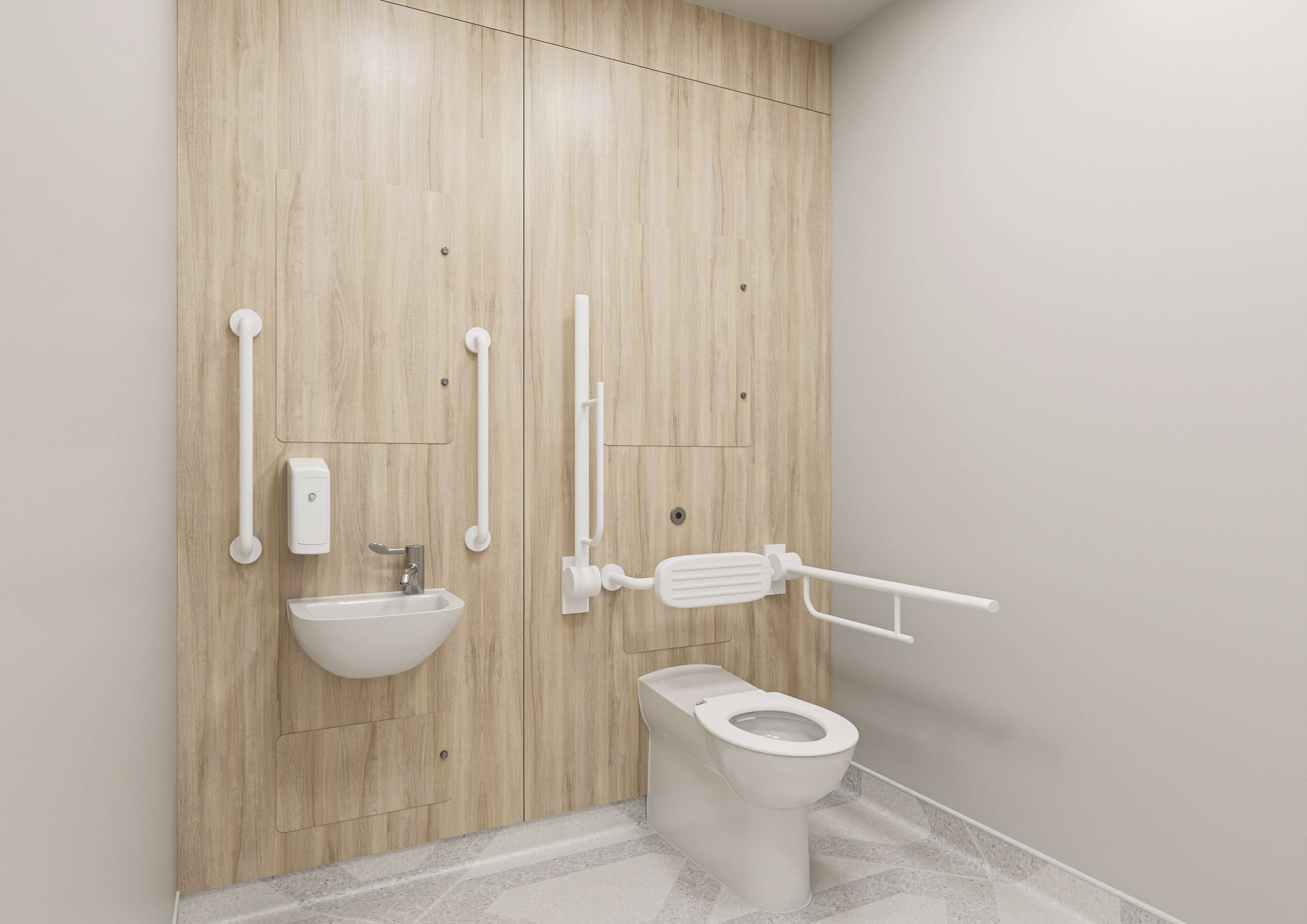

Fresh maple CWHB integrated plumbing system

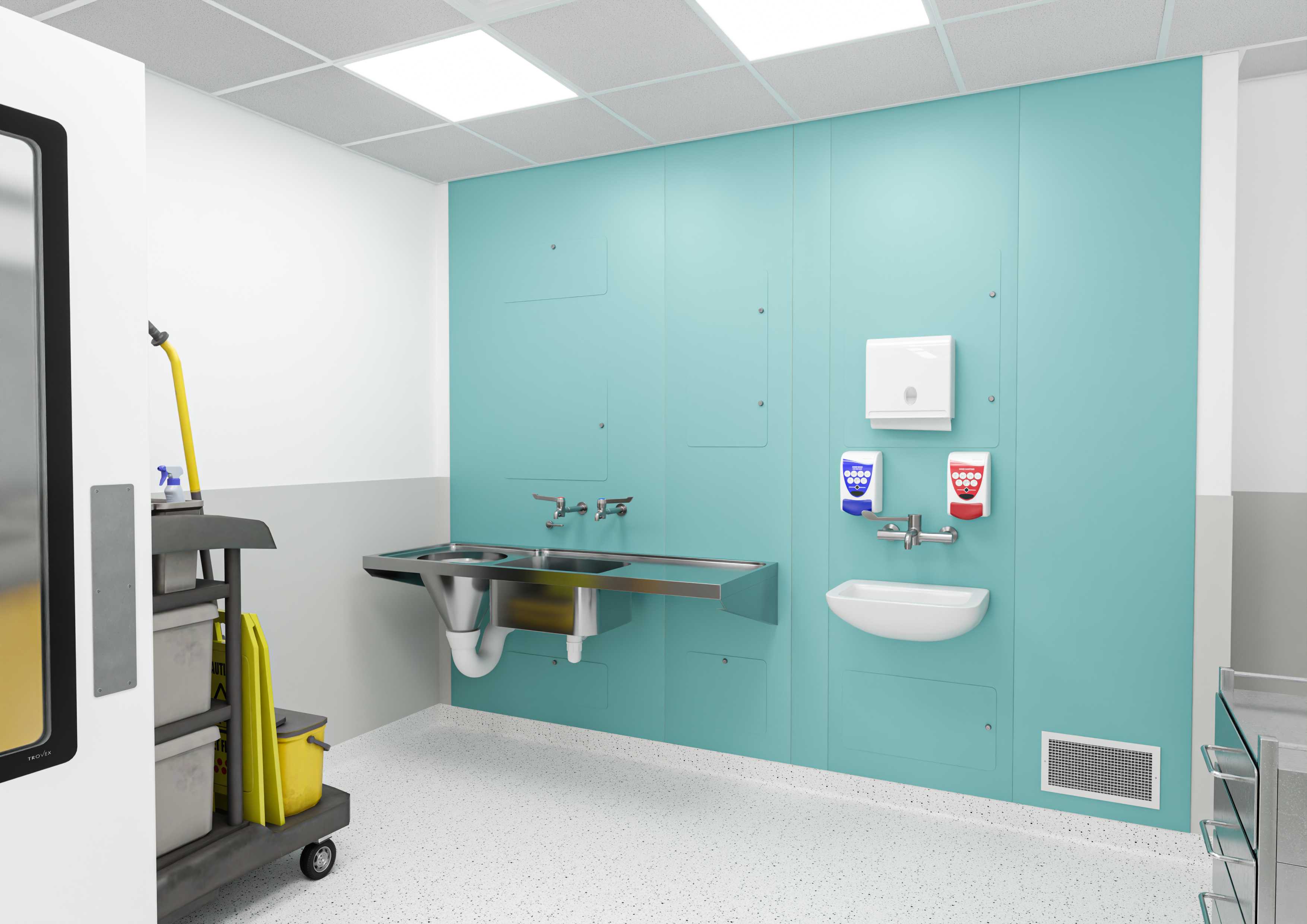

Caribbean sea wall to wall CWHB

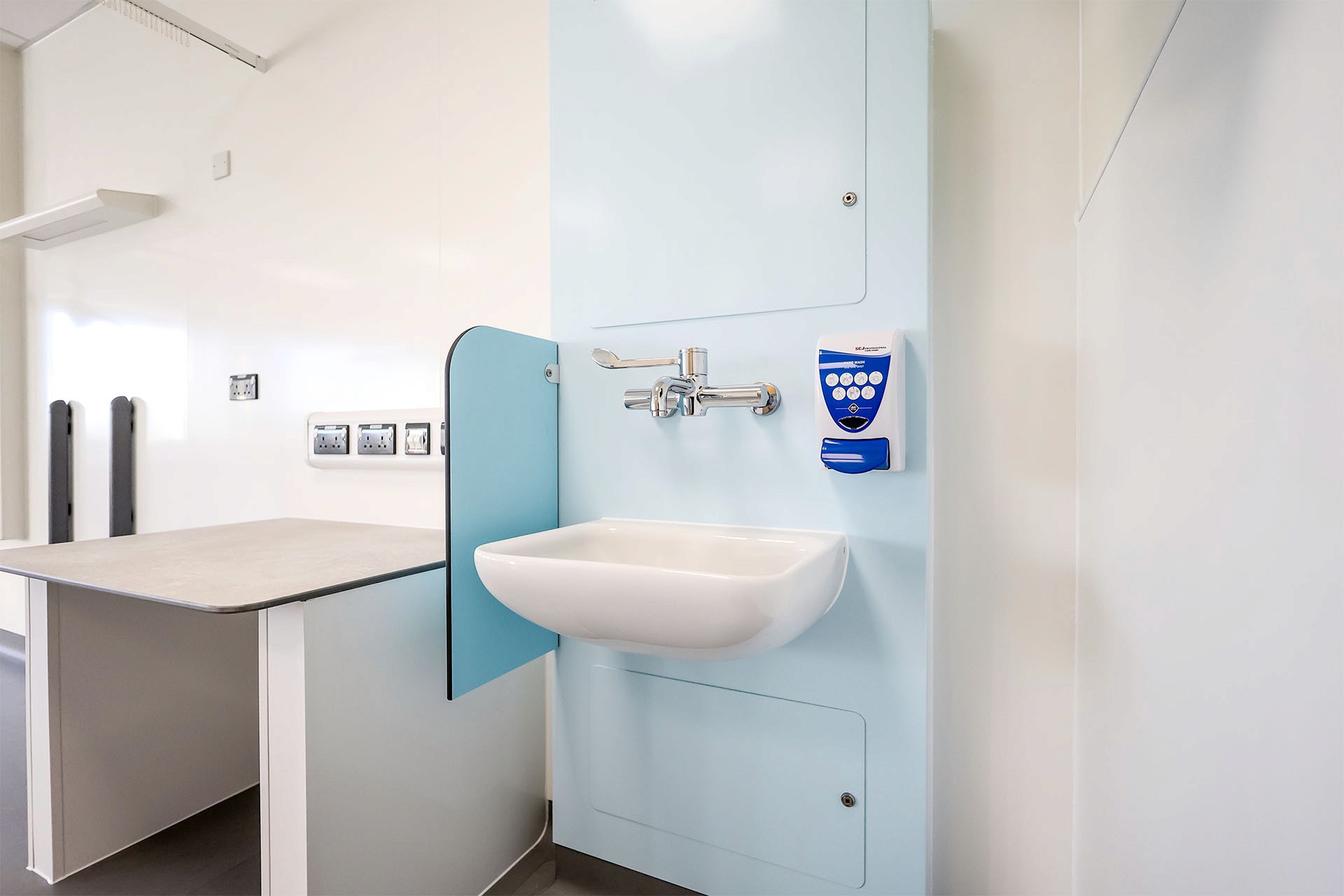

azure wash hand basin integrated plumbing system
Wash hand basin integrated plumbing system
Wash Hand Basin

Sanitaryware

A selection of compatible sanitaryware

Designed for clinical handwashing in healthcare environments, the Hygipod IPS wash hand basin provides a safe, hygienic solution for wards, treatment rooms, and patient areas.

Fresh maple CWHB integrated plumbing system
Caribbean sea wall to wall CWHB
azure wash hand basin integrated plumbing system
Hygipod plinth
Hygipod plinth
Direct to Floor
Direct to Floor
Prefinished plinth
Prefinished plinth

Hygipod IPS offers three floor interface options to suit different installation requirements. These include a Trovex-supplied plinth for a hygienic, coved floor finish, direct-to-floor installation onto existing surfaces, and a prefinished plinth for a clean, finished appearance without floor coving.

1

Choose configuration

Select from a range of Hygipod IPS sanitaryware configurations to suit your application.

2

Customise IPS

Adjust mounting type, height, and panel colour to match your project requirements and design preferences.

3

Share design

Export your configured design to share with colleagues or submit directly to receive a detailed quote for your project.

Integrated plumbing system

CWHB FAQs

CWHB FAQs

There are three options. The Hygipod plinth is the most common, supplied by Trovex and installed before floor finishes, allowing vinyl flooring to cove up to it for a hygienic seal at floor level. Direct to floor suits projects where the floor finish already exists, though it's not recommended where the ceiling is solid. The prefinished plinth is similar to the Hygipod plinth but laminated in Trovex PVC, providing a finished appearance where vinyl coving isn't required.

Yes. As well as full-height options that run to or through the ceiling, the Hygipod IPS is available in two half-height variants: flat top and sloping top. Both can be manufactured to any height to suit the installation. The sloping top option is commonly specified at 1,450mm and is designed to discourage items being placed on top of the unit, supporting hygiene compliance.

The Hygipod IPS comes in five configurations: flat, flush, single-return, double-return, and wall-to-wall. All share the same seamless, easy-clean PVC finish and compliant design. The standard width is 750mm across most configurations, with the wall-to-wall option spanning between opposing walls at a project-specific width. Alternative widths and depths are available across the range.

The Hygipod IPS Clinical WHB is available in three variants to suit a range of clinical handwashing requirements. The Wash Hand Basin provides a safe, hygienic solution for general clinical handwashing across wards, treatment rooms and patient areas. For surgical environments, the 1-Person Scrub delivers a compliant handwashing solution for theatre and clinical preparation settings, while the 3-Person Scrub is designed for high-throughput surgical preparation, providing an efficient scrubbing solution for busy theatre suites. Each variant is supplied pre-plumbed and pre-tested, simplifying installation and supporting infection prevention across healthcare settings.
