Utility & Sluice

Hygipod IPS configurations designed for utility and sluice environments, combining robust sanitaryware options with fully integrated plumbing systems.

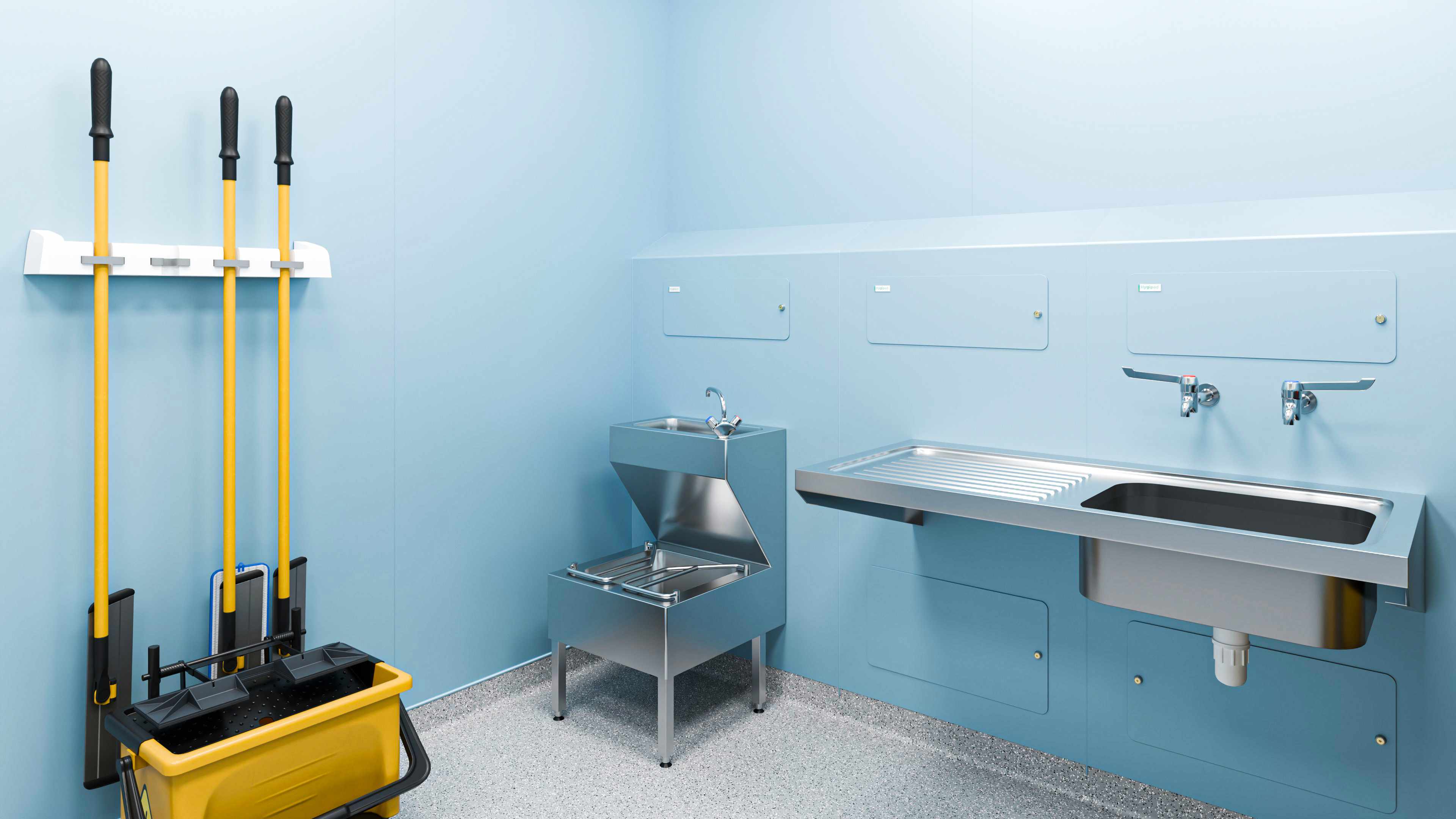

A half height janitorial unit and slophopper integrated plumbing system
A half height janitorial unit and slophopper integrated plumbing system

Utility & Sluice

Utility & Sluice

Hygipod IPS configurations designed for utility and sluice environments, combining robust sanitaryware options with fully integrated plumbing systems.

Hygipod IPS configurations designed for utility and sluice environments, combining robust sanitaryware options with fully integrated plumbing systems.

A half height janitorial unit and slophopper integrated plumbing system
1

Choose Your Configuration

Select from a range of Hygipod IPS sanitaryware configurations, including janitorial units, slophoppers, plaster sinks, and sluice units to suit your application.

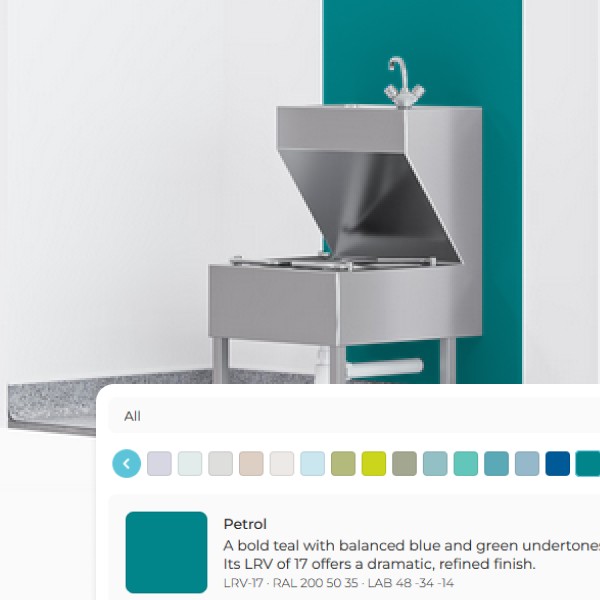

CustomiseHygipod IPS Configurator
1. Choose Your Configuration
Utility & Sluice

Features

Infection prevention

Infection prevention

Hygipod offers superior infection prevention vs. IPS panels and is easy to clean

Highly configurable

Highly configurable

A configurable platform that links into units for sluice stations, Doc M packs and more

PVC finishes

PVC finishes

With 45+ colours and finishes, Hygipod enhances the look and feel of any project

Easy maintenance

Easy maintenance

With lockable hinged doors instead of snap panels, maintenance is simple and secure

Quick installation

Quick installation

Thanks to prefabrication and a bracket system, a basin can be installed in just 45 minutes

Fast lead times

Fast lead times

From sign-off, Hygipod IPS is built and delivered in 2–3 weeks with sanitaryware included

Type

Alternative widths and depths available.

Flat configurations provide a surface-mounted IPS solution with a minimal depth of 15 mm, offering a clean, hygienic finish with minimal projection from the wall.

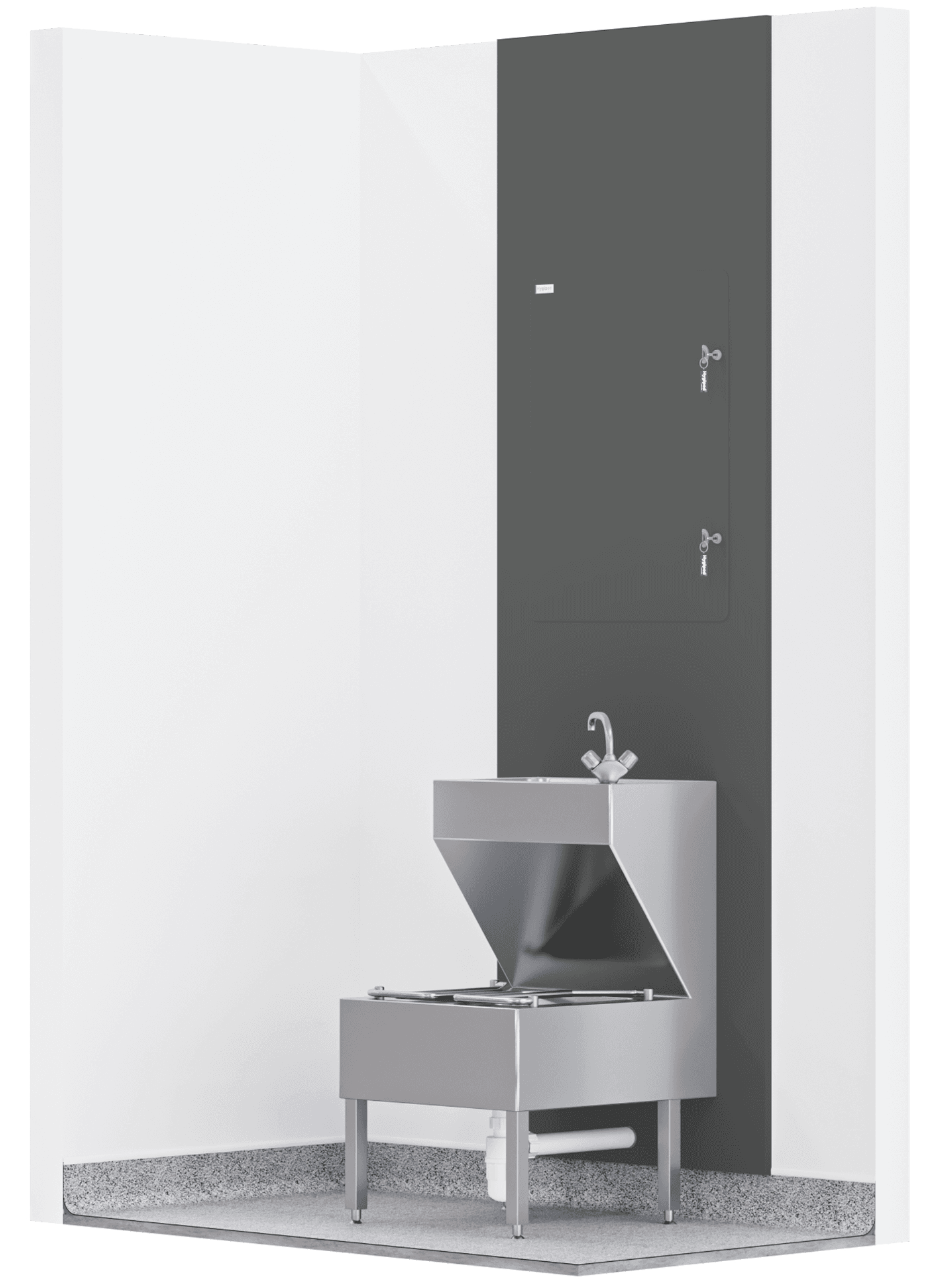

Flat type integrated plumbing system

Type

Alternative widths and depths available.

Flat configurations provide a surface-mounted IPS solution with a minimal depth of 15 mm, offering a clean, hygienic finish with minimal projection from the wall.

Flat type integrated plumbing system

Height options

Various Heights Available

Available in through-ceiling, up-to-ceiling, and half-height with sloping top configurations. Through-ceiling units extend 50–100 mm above the ceiling line with a ceiling trim finish, up-to-ceiling units terminate flush at the soffit, and the half-height option features an angled sloping top to discourage item placement and support hygiene compliance.

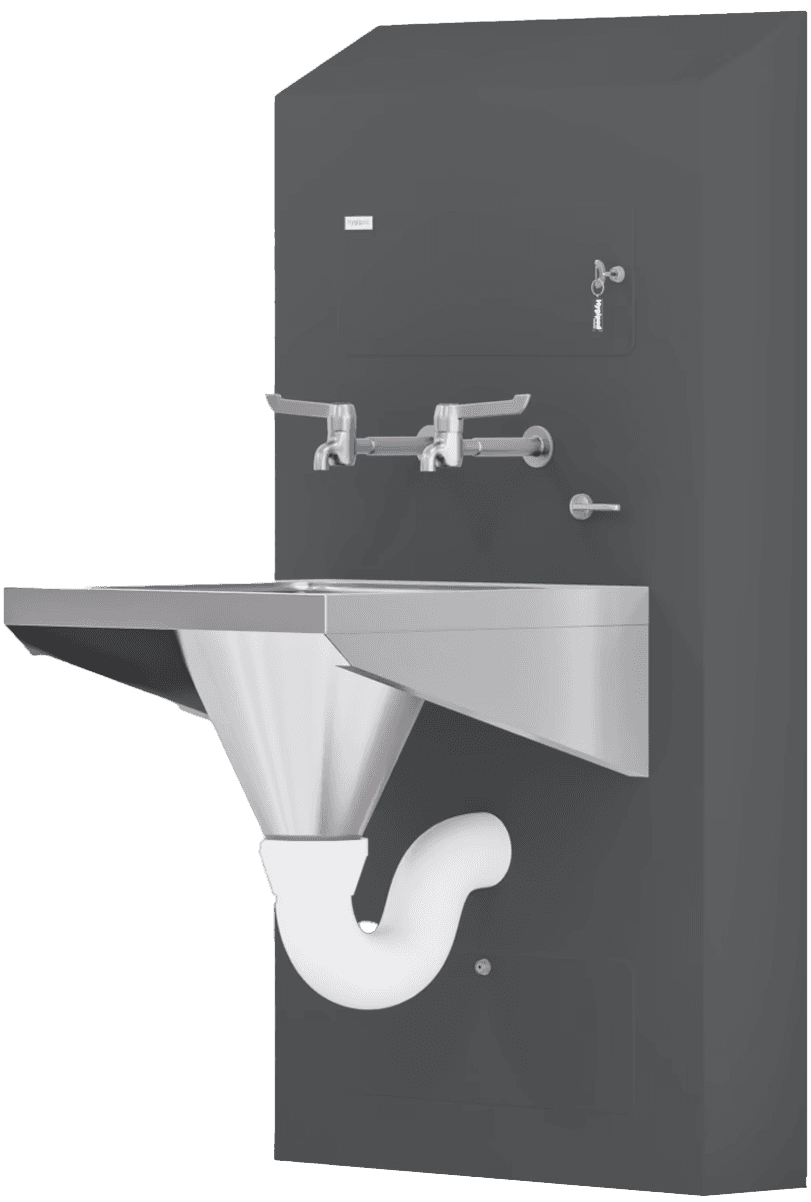

half height sloping top integrated plumbing system
half-height
Up to ceiling integrated plumbing system
up to ceiling

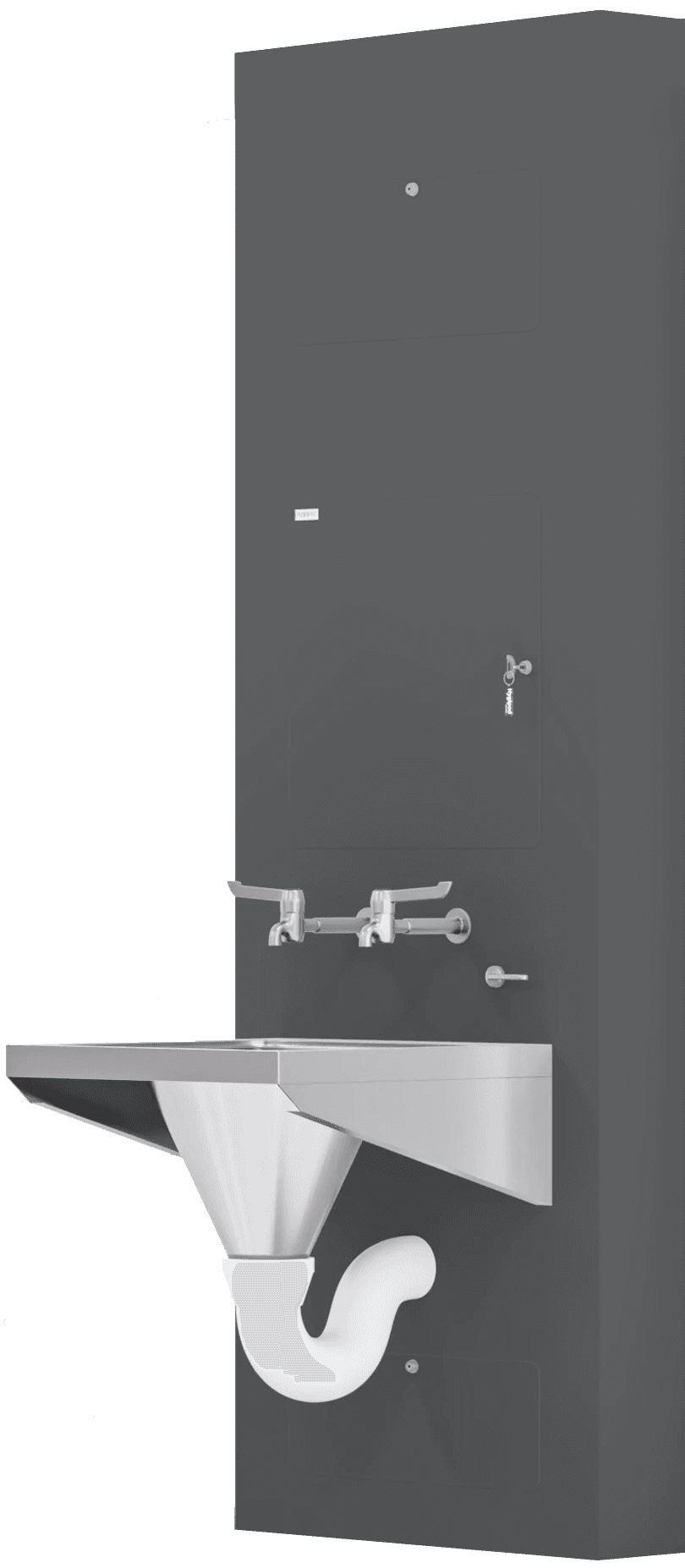

Through-ceiling type integrated plumbing system
through ceiling

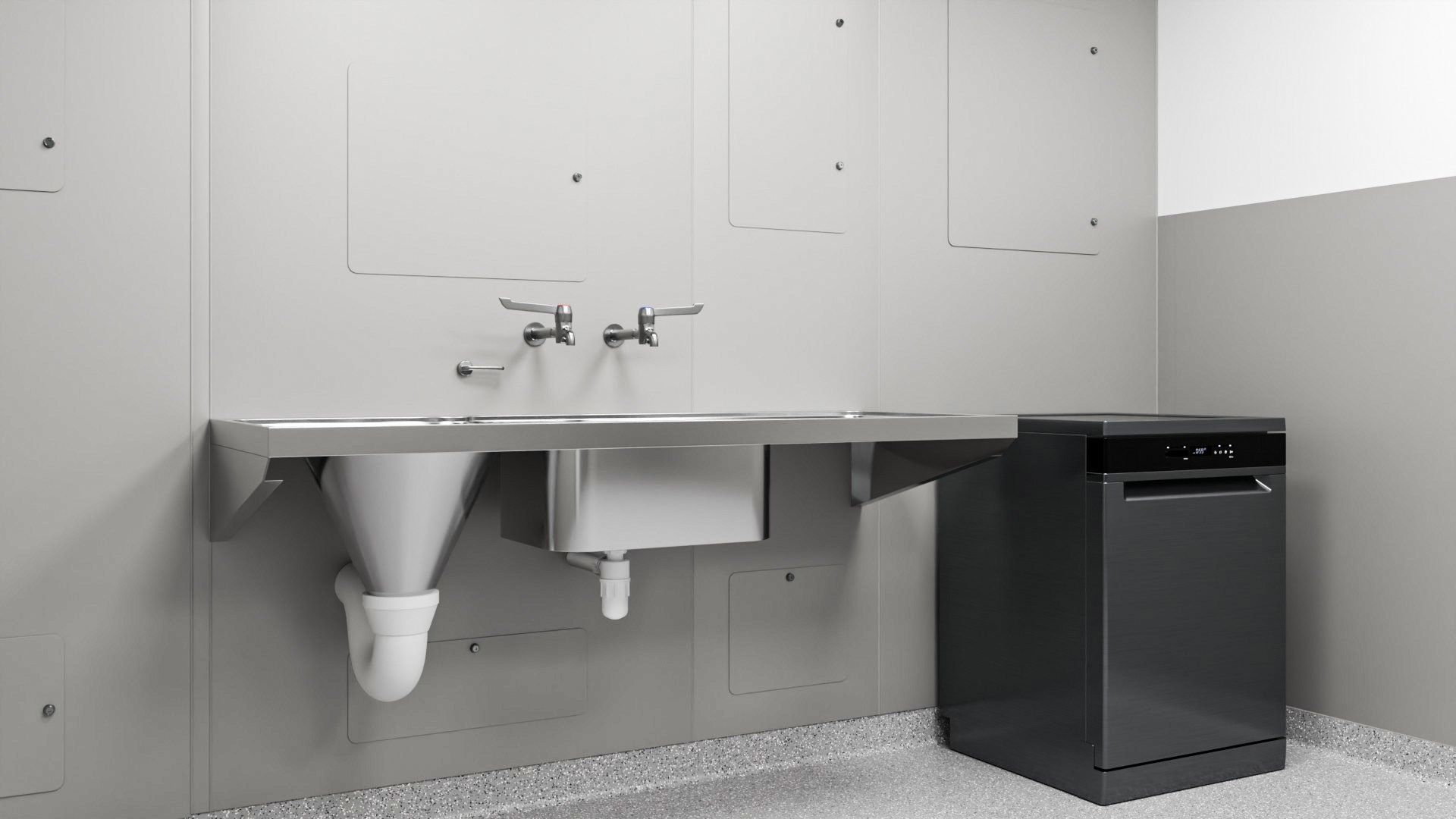

Silver lining utility & sluice integrated plumbing system

Hygipod IPS panels are manufactured from single PVC sheets up to 3000 mm for solid colours and 2440 mm for Essence finishes. Where these heights are exceeded, a horizontal joint is introduced at the upper section to maintain a consistent, hygienic finish.

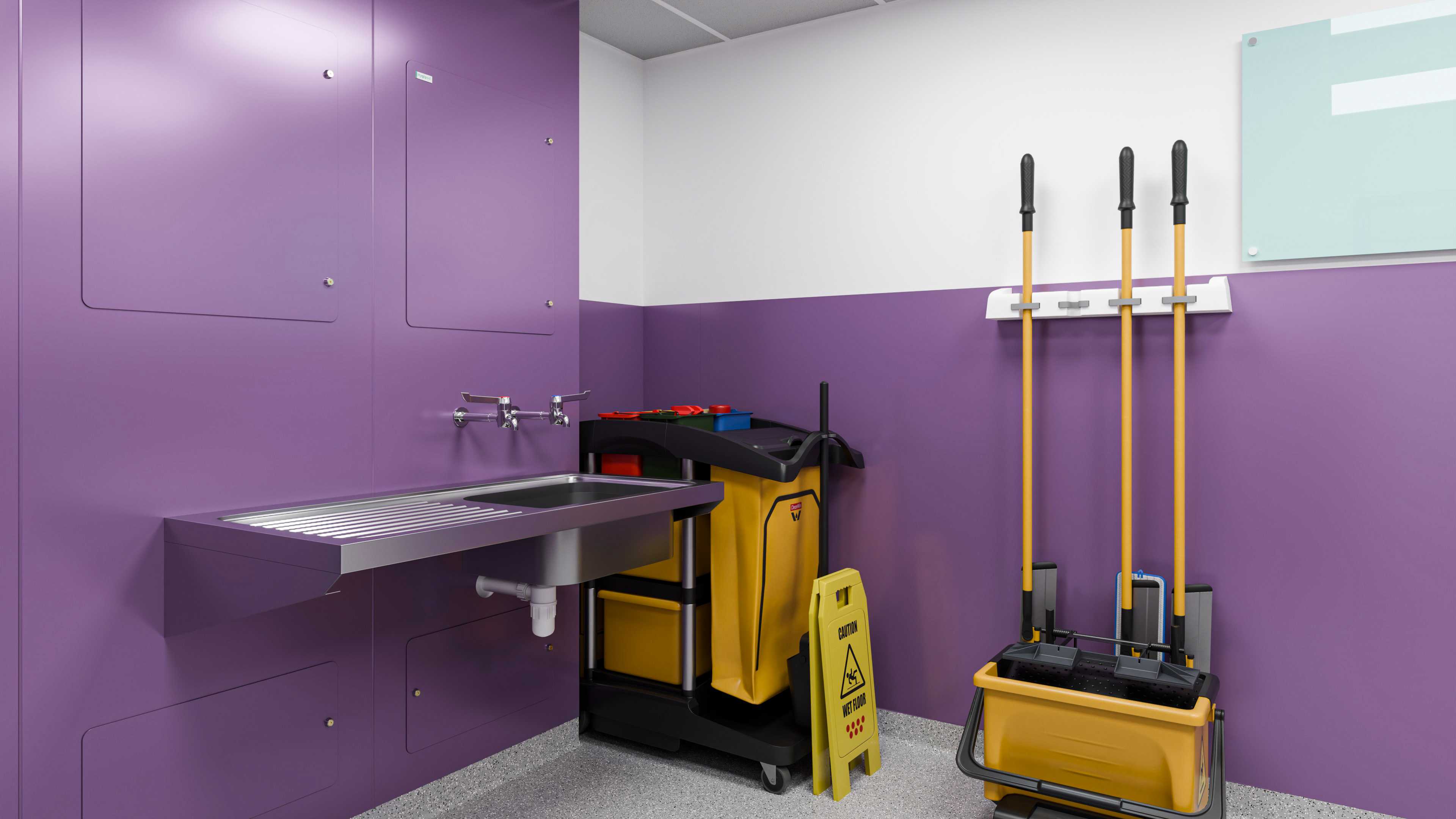

Fantasy utility & sluice integrated plumbing system

Height options

Various Heights Available

Available in through-ceiling, up-to-ceiling, and half-height with sloping top configurations. Through-ceiling units extend 50–100 mm above the ceiling line with a ceiling trim finish, up-to-ceiling units terminate flush at the soffit, and the half-height option features an angled sloping top to discourage item placement and support hygiene compliance.

half height sloping top integrated plumbing system
half-height
Up to ceiling integrated plumbing system
up to ceiling
Through-ceiling type integrated plumbing system
through ceiling
Silver lining utility & sluice integrated plumbing system

Hygipod IPS panels are manufactured from single PVC sheets up to 3000 mm for solid colours and 2440 mm for Essence finishes. Where these heights are exceeded, a horizontal joint is introduced at the upper section to maintain a consistent, hygienic finish.

Fantasy utility & sluice integrated plumbing system

Height options

Various Heights Available

Available in through-ceiling, up-to-ceiling, and half-height with sloping top configurations. Through-ceiling units extend 50–100 mm above the ceiling line with a ceiling trim finish, up-to-ceiling units terminate flush at the soffit, and the half-height option features an angled sloping top to discourage item placement and support hygiene compliance.

half height sloping top integrated plumbing system
half-height
Up to ceiling integrated plumbing system
up to ceiling
Through-ceiling type integrated plumbing system
through ceiling
Silver lining utility & sluice integrated plumbing system

Hygipod IPS panels are manufactured from single PVC sheets up to 3000 mm for solid colours and 2440 mm for Essence finishes. Where these heights are exceeded, a horizontal joint is introduced at the upper section to maintain a consistent, hygienic finish.

Fantasy utility & sluice integrated plumbing system

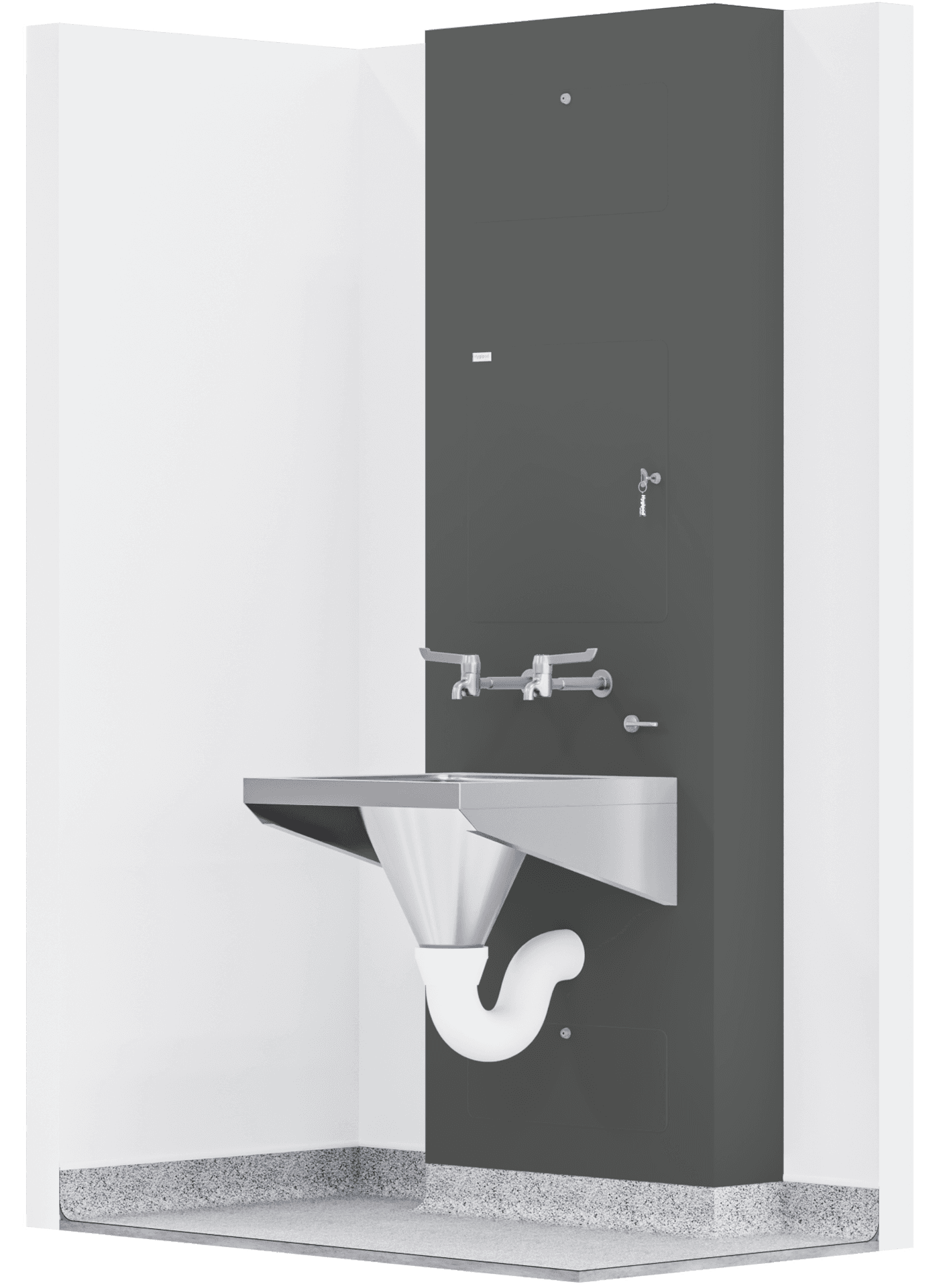

Slophopper utility & sluice integrated plumbing system
Slophopper

Sanitaryware

A selection of compatible sanitaryware

Designed for the safe disposal of liquid waste, slophopper units provide a robust, hygienic solution for sluice room environments.

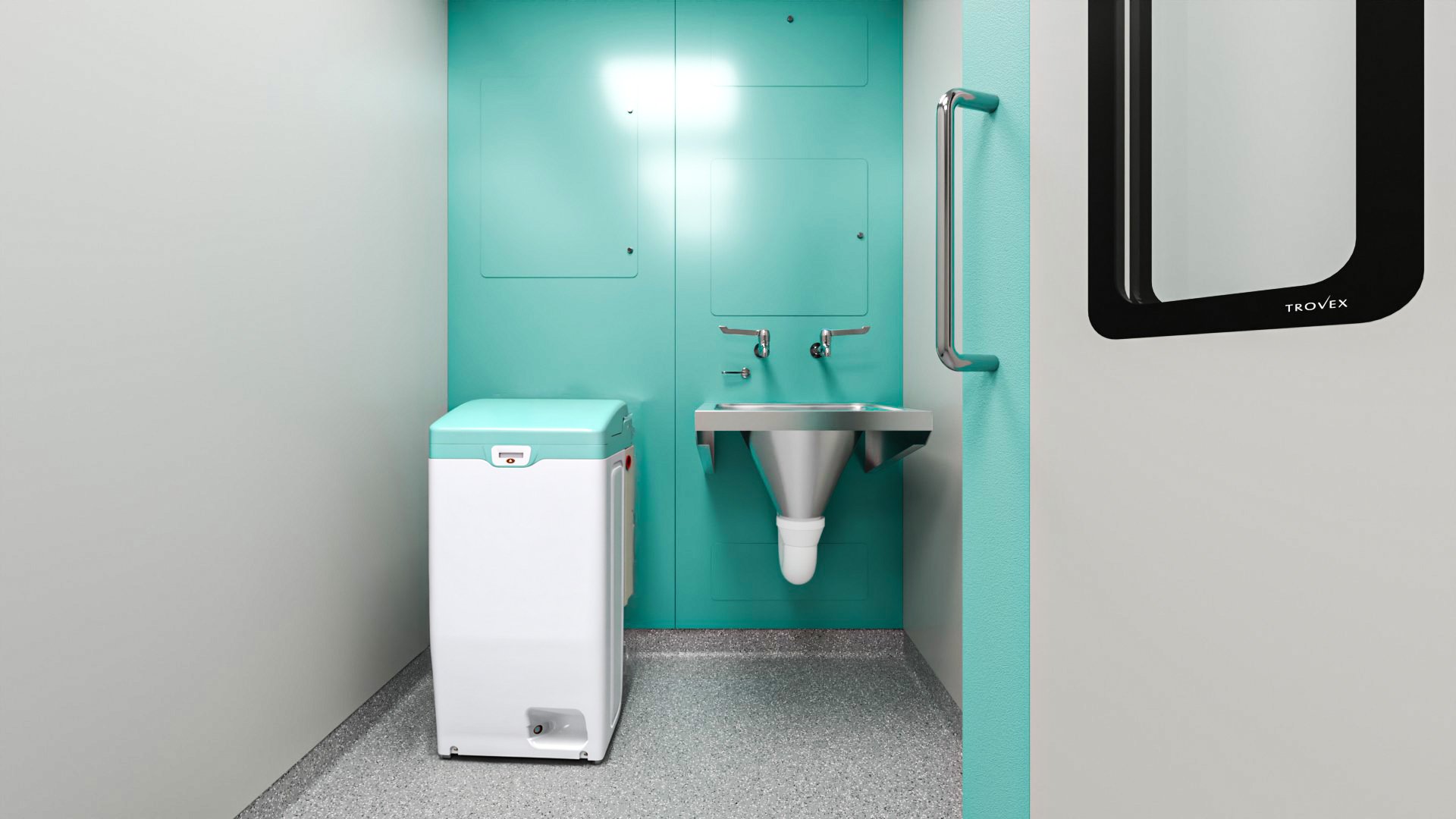

Caribbean sea utility & sluice integrated plumbing system

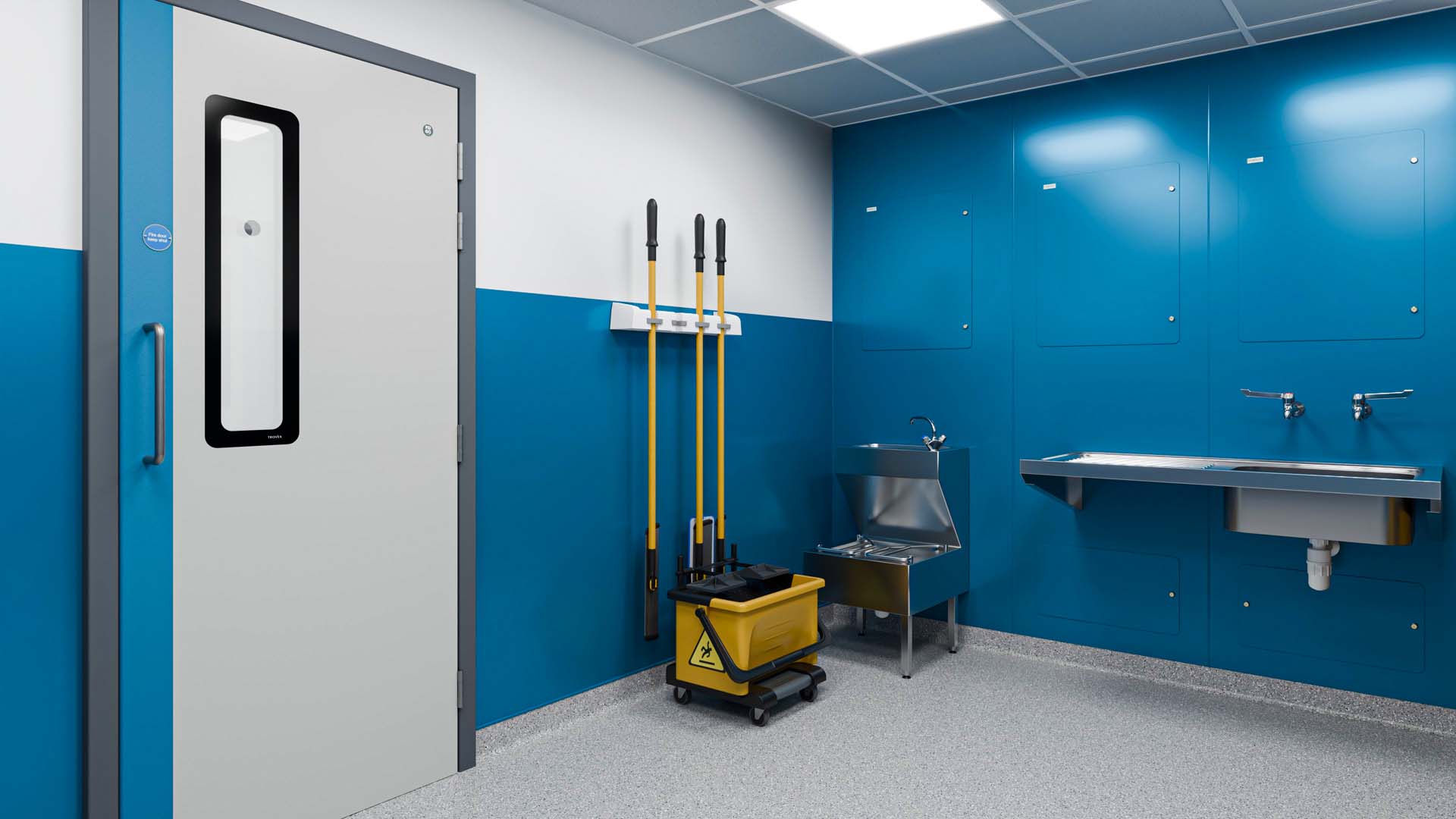

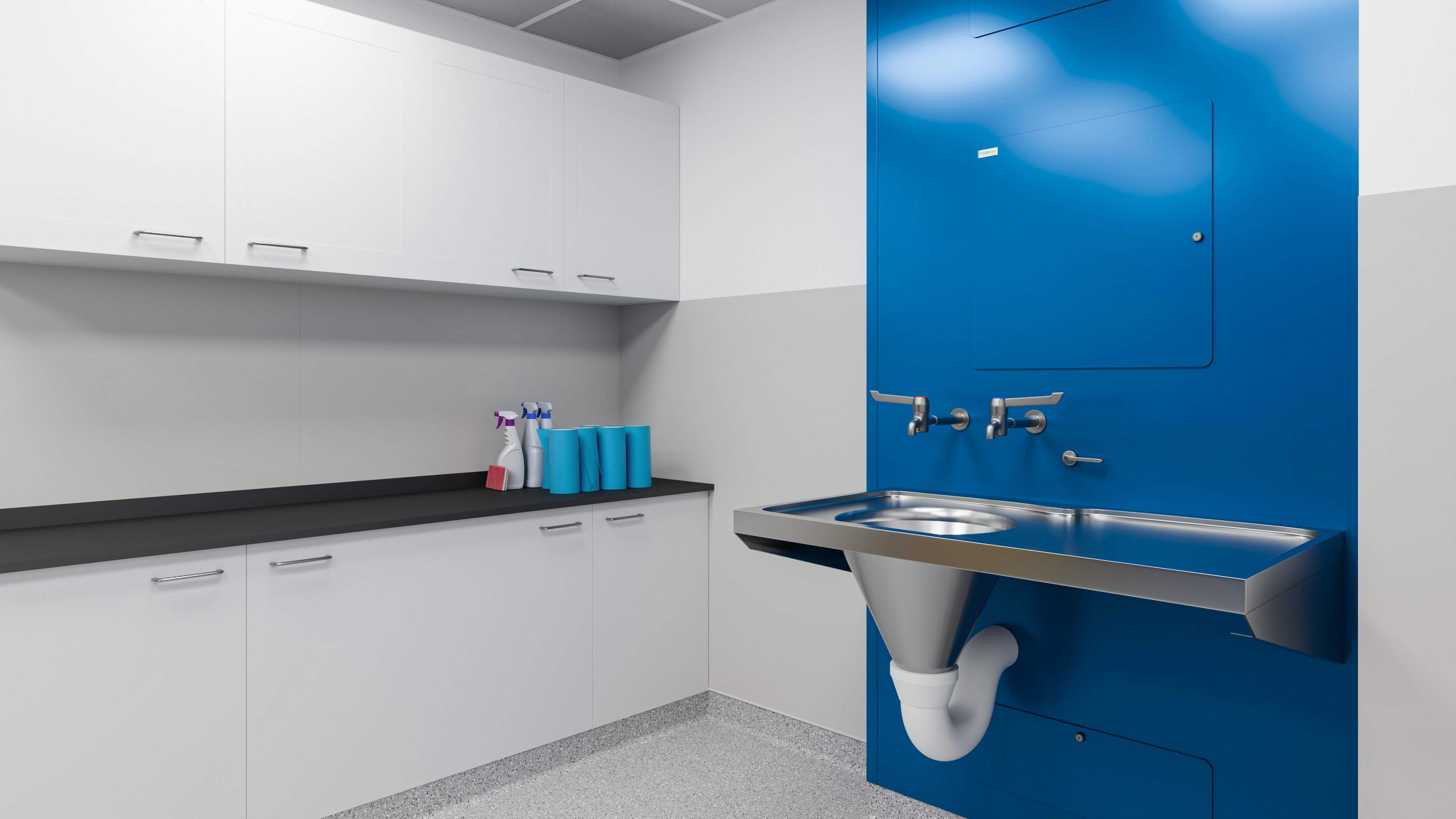

Monsoon utility & sluice integrated plumbing system
Monsoon utility & sluice integrated plumbing system
Slophopper utility & sluice integrated plumbing system
Slophopper

Sanitaryware

A selection of compatible sanitaryware

Designed for the safe disposal of liquid waste, slophopper units provide a robust, hygienic solution for sluice room environments.

Caribbean sea utility & sluice integrated plumbing system
Monsoon utility & sluice integrated plumbing system
Monsoon utility & sluice integrated plumbing system

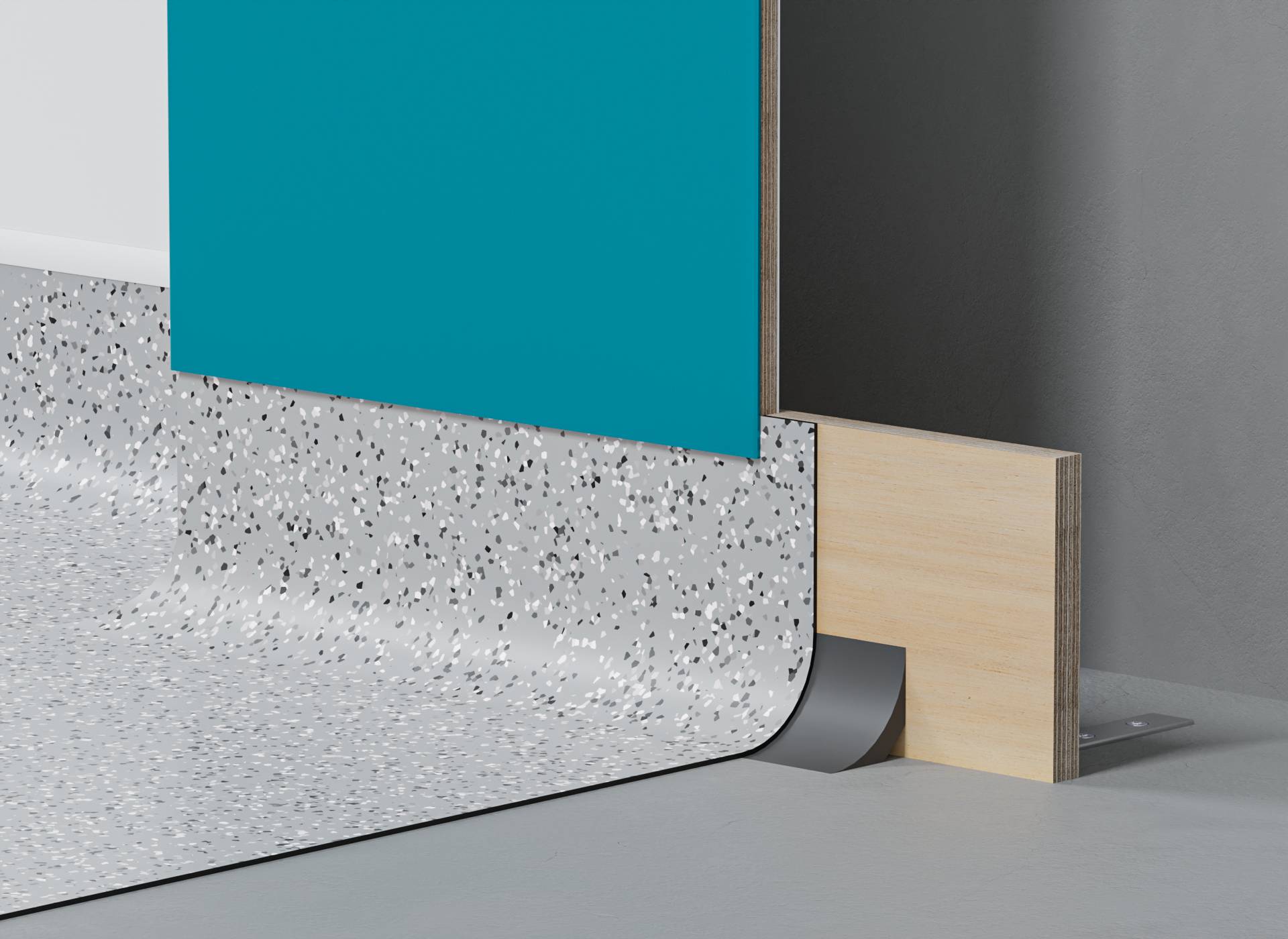

Hygipod Plinth
Hygipod Plinth

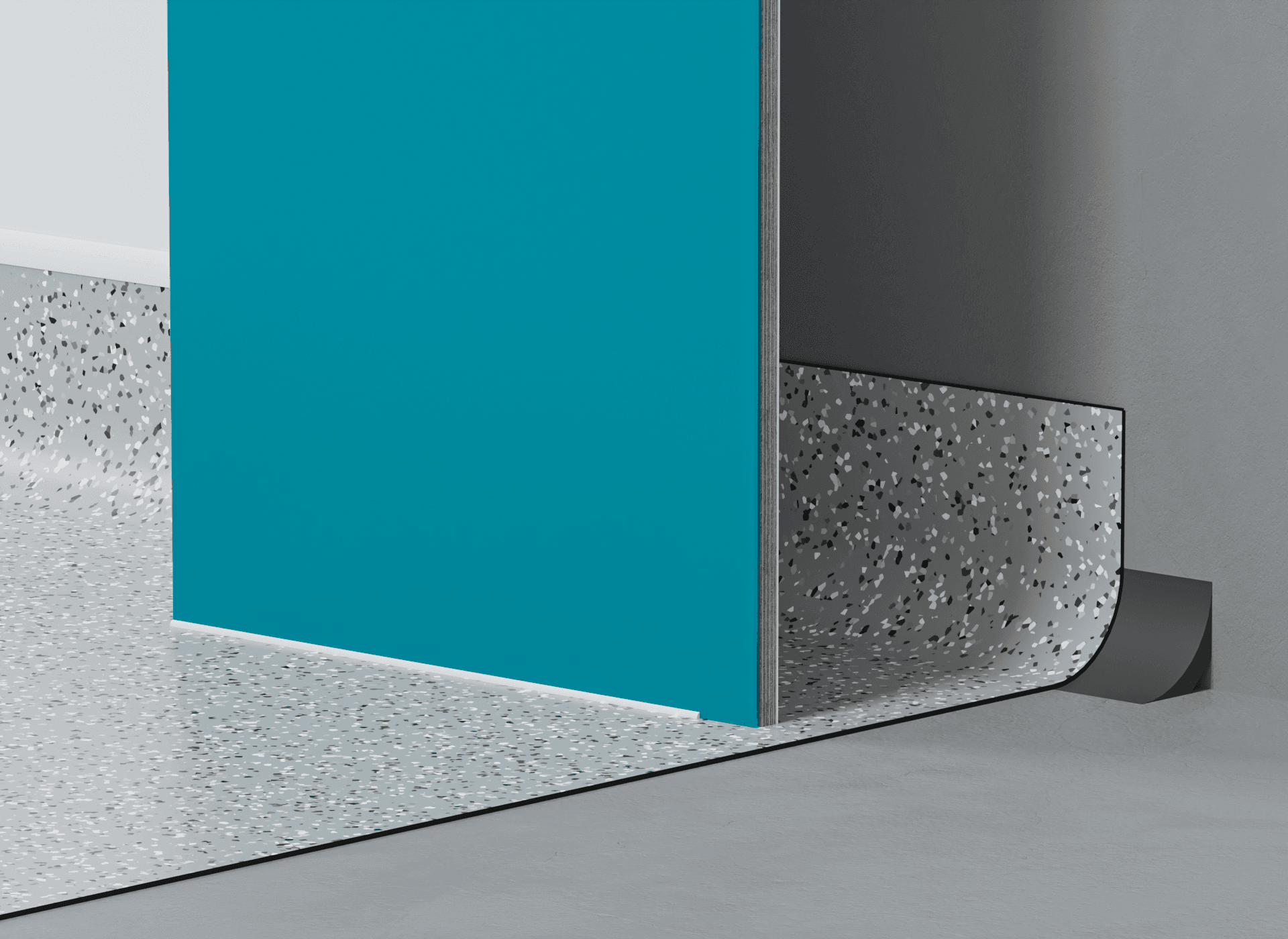

Direct to Floor plinth
Direct to Floor

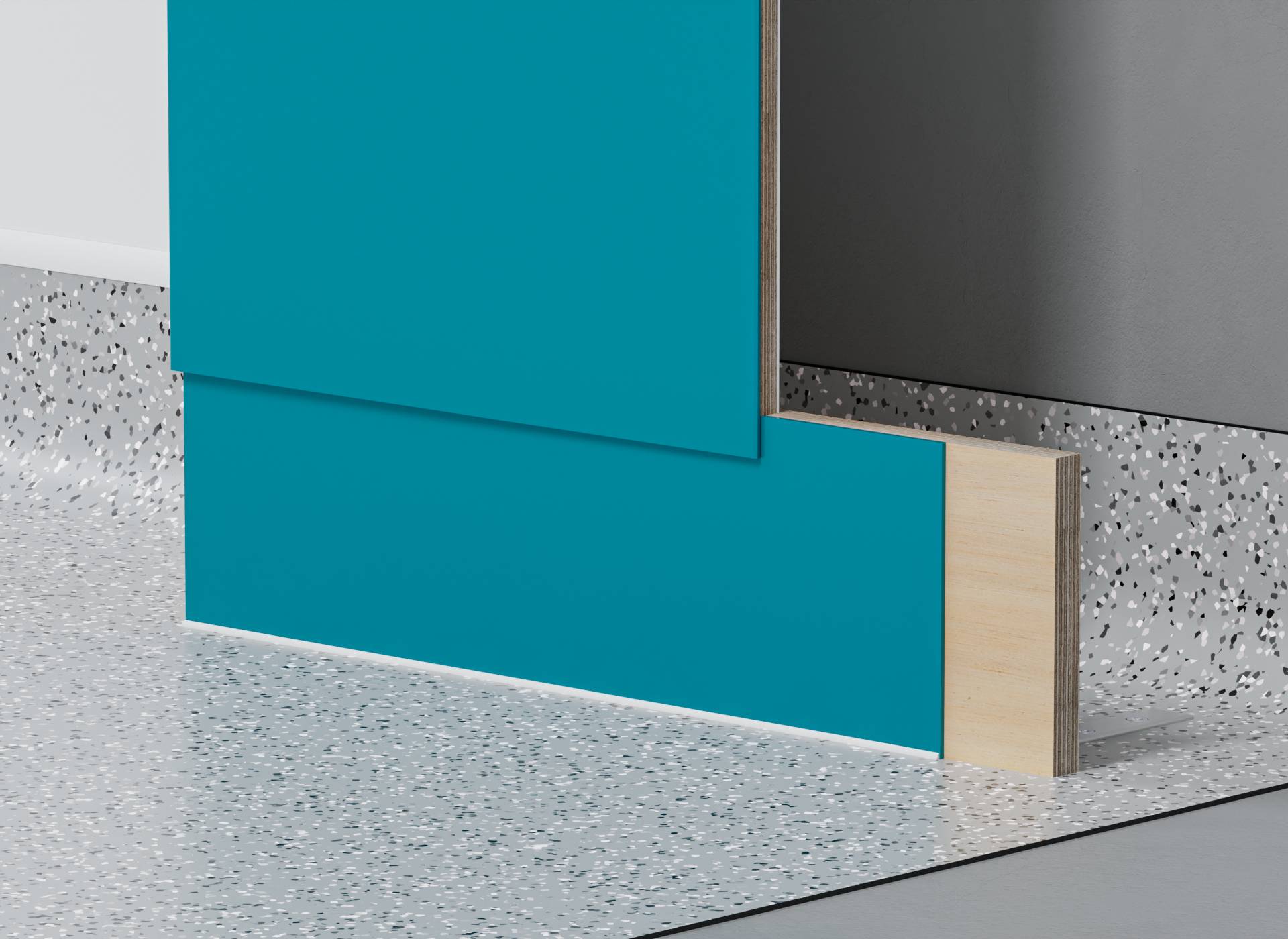

Prefinished Plinth
Prefinished Plinth

Hygipod IPS offers three floor interface options to suit different installation requirements. These include a Trovex-supplied plinth for a hygienic, coved floor finish, direct-to-floor installation onto existing surfaces, and a prefinished plinth for a clean, finished appearance without floor coving.

1

Choose configuration

Select from a range of Hygipod IPS sanitaryware configurations, including janitorial units, slophoppers, plaster sinks, and sluice units to suit your application.

2

Customise IPS

Adjust mounting type, height, and panel colour to match your project requirements and design preferences.

3

Share design

Export your configured design to share with colleagues or submit directly to receive a detailed quote for your project.

Integrated plumbing system

Utility & Sluice FAQs

Utility & Sluice FAQs

There are three options. The Hygipod plinth is the most common, supplied by Trovex and installed before floor finishes, allowing vinyl flooring to cove up to it for a hygienic seal at floor level. Direct to floor suits projects where the floor finish already exists, though it's not recommended where the ceiling is solid. The prefinished plinth is similar to the Hygipod plinth but laminated in Trovex PVC, providing a finished appearance where vinyl coving isn't required.

Yes. As well as full-height options that run to or through the ceiling, the Hygipod IPS is available in two half-height variants: flat top and sloping top. Both can be manufactured to any height to suit the installation. The sloping top option is commonly specified at 1,450mm and is designed to discourage items being placed on top of the unit, supporting hygiene compliance.

The Hygipod IPS comes in five configurations: flat, flush, single-return, double-return, and wall-to-wall. All share the same seamless, easy-clean PVC finish and compliant design. The standard width is 750mm across most configurations, with the wall-to-wall option spanning between opposing walls at a project-specific width. Alternative widths and depths are available across the range.

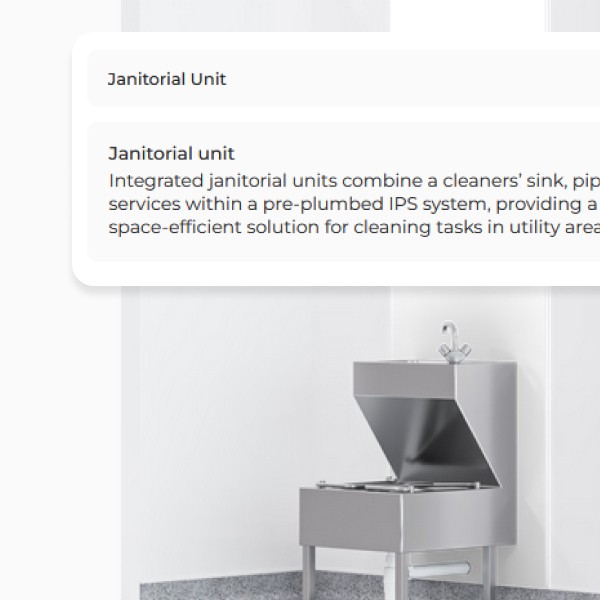

The Hygipod IPS Utility & Sluice is available with six robust sanitaryware configurations to suit the specific demands of utility and sluice environments. The Janitorial Unit provides a reliable solution for general cleaning and waste management in ward and corridor utility rooms. The Slophopper is designed for the safe, hygienic disposal of clinical waste in sluice and decontamination areas, while the Plaster Sink delivers a deep-bowl solution for orthopaedic and treatment rooms. The Doon Sink covers general utility tasks across a range of clinical settings, and for dedicated sluice requirements the Fiji Sluice and Java Sluice offer compact and higher-capacity options respectively, suited to spaces of varying size and throughput. Each variant is supplied pre-plumbed and compliant, reducing on-site work and supporting infection prevention from day one.
