Hygipod IPS configurations for accessible washing environments, combining robust sanitaryware options with fully integrated plumbing systems .
Hygipod IPS configurations for accessible washing environments, combining robust sanitaryware options with fully integrated plumbing systems .
Choose Your Configuration
Select from a range of Hygipod IPS sanitaryware configurations to suit your application.
ConfigureFeatures
Infection prevention
Infection prevention
Seamless thermoformed corners eliminate joins and bacterial harbours, keeping surfaces easy to clean.
Seamless thermoformed corners eliminate joins and bacterial harbours, keeping surfaces easy to clean.
Highly configurable
Highly configurable
Each unit arrives factory-assembled and air pressure-tested, reducing on-site installation risk.
Each unit arrives factory-assembled and air pressure-tested, reducing on-site installation risk.
PVC finishes
PVC finishes
With 45+ colours and finishes, Hygipod enhances the look and feel of any project.
With 45+ colours and finishes, Hygipod enhances the look and feel of any project.
Easy maintenance
Easy maintenance
Showerproof lockable access panels make servicing simple, secure, and ward-safe.
Showerproof lockable access panels make servicing simple, secure, and ward-safe.
Quick installation
Quick installation
Thanks to prefabrication and a bracket system, a basin can be installed in just 45 minutes.
Thanks to prefabrication and a bracket system, a basin can be installed in just 45 minutes.
Accessibility compliant
Accessibility compliant
Configured to meet HBN-0010 Part C for safe use in healthcare environments.
Configured to meet HBN-0010 Part C for safe use in healthcare environments.
Type

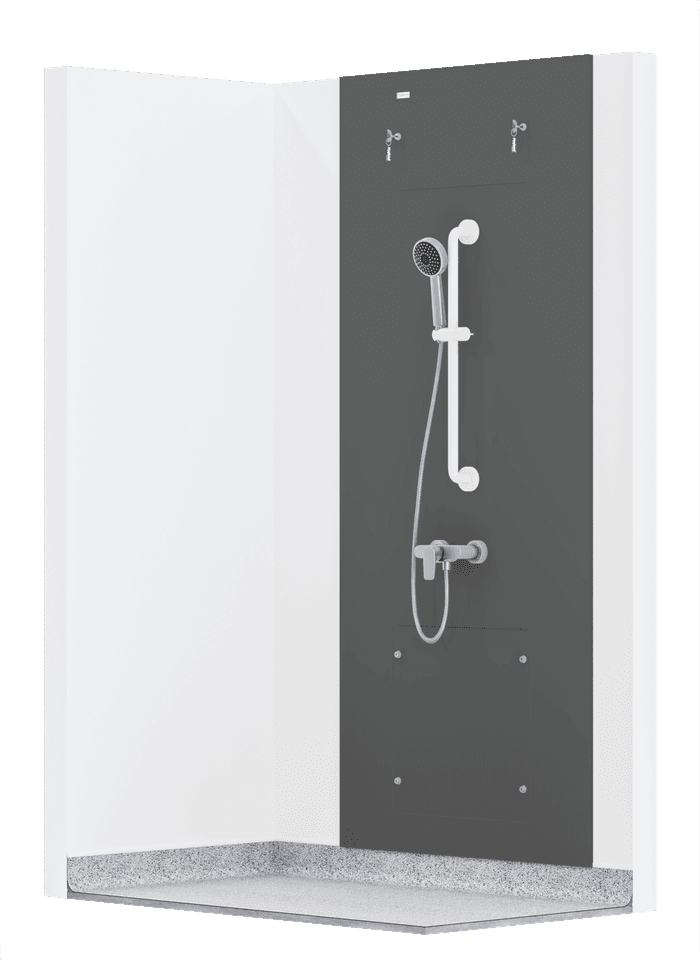

Alternative widths and depths available.Flat configurations provide a surface-mounted IPS solution with a minimal depth of 15 mm, offering a clean, hygienic finish with minimal projection from the wall.
Type
Alternative widths and depths available.Flat configurations provide a surface-mounted IPS solution with a minimal depth of 15 mm, offering a clean, hygienic finish with minimal projection from the wall.
Height Options

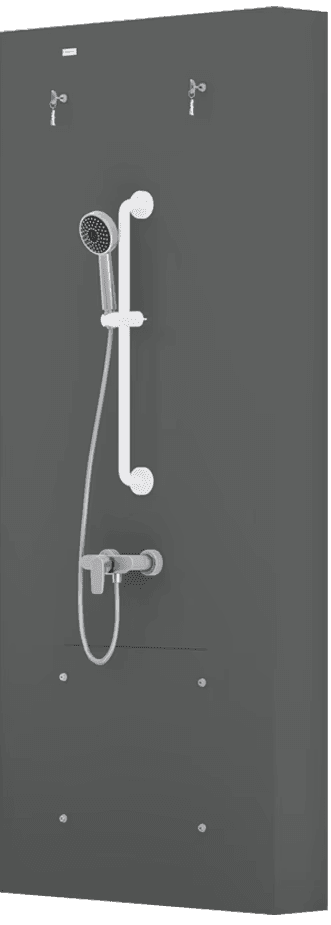

The Hygipod IPS Ambulant Shower is available in both up-to-ceiling and through-ceiling configurations to suit a range of installation requirements. Through-ceiling units extend 50–100 mm above the ceiling line with a ceiling trim finish, suitable where concealed pipework is required. Up-to-ceiling units terminate flush at the ceiling soffit, ideal for solid ceilings where a clean finish is required without penetrating the ceiling structure.
Hygipod IPS panels are manufactured from single PVC sheets up to 3000 mm for solid colours and 2440 mm for Essence finishes. Where these heights are exceeded, a horizontal joint is introduced at the upper section to maintain a consistent, hygienic finish.
Height Options
The Hygipod IPS Ambulant Shower is available in both up-to-ceiling and through-ceiling configurations to suit a range of installation requirements. Through-ceiling units extend 50–100 mm above the ceiling line with a ceiling trim finish, suitable where concealed pipework is required. Up-to-ceiling units terminate flush at the ceiling soffit, ideal for solid ceilings where a clean finish is required without penetrating the ceiling structure.
Hygipod IPS panels are manufactured from single PVC sheets up to 3000 mm for solid colours and 2440 mm for Essence finishes. Where these heights are exceeded, a horizontal joint is introduced at the upper section to maintain a consistent, hygienic finish.
Height Options
The Hygipod IPS Ambulant Shower is available in both up-to-ceiling and through-ceiling configurations to suit a range of installation requirements. Through-ceiling units extend 50–100 mm above the ceiling line with a ceiling trim finish, suitable where concealed pipework is required. Up-to-ceiling units terminate flush at the ceiling soffit, ideal for solid ceilings where a clean finish is required without penetrating the ceiling structure.
Hygipod IPS panels are manufactured from single PVC sheets up to 3000 mm for solid colours and 2440 mm for Essence finishes. Where these heights are exceeded, a horizontal joint is introduced at the upper section to maintain a consistent, hygienic finish.
Sanitaryware

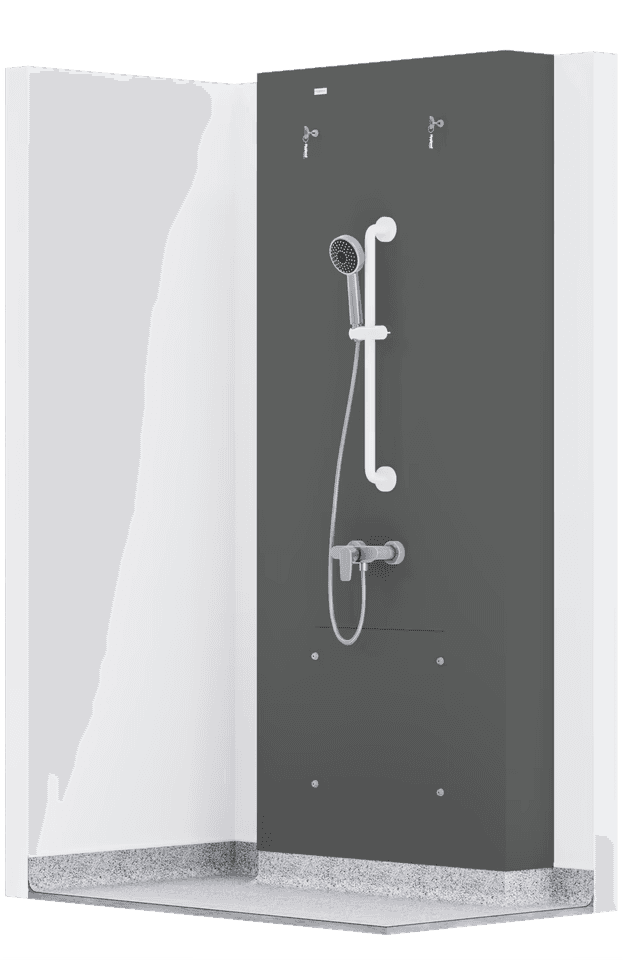

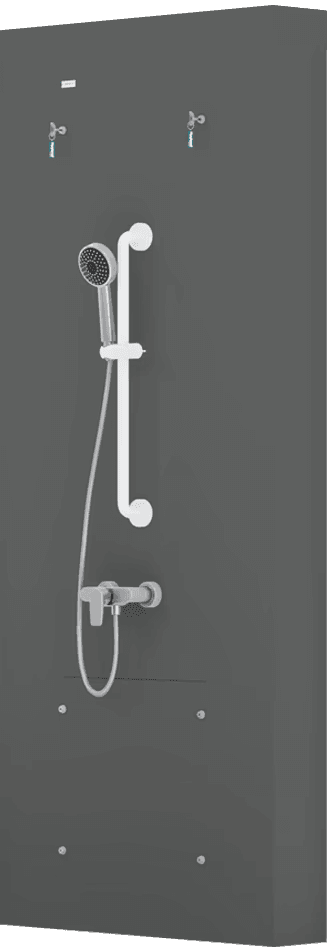

A selection of compatible sanitarywareDesigned to support patients with reduced mobility, the ambulant shower provides a safe, hygienic showering solution for accessible healthcare environments.
Sanitaryware
A selection of compatible sanitarywareDesigned to support patients with reduced mobility, the ambulant shower provides a safe, hygienic showering solution for accessible healthcare environments.

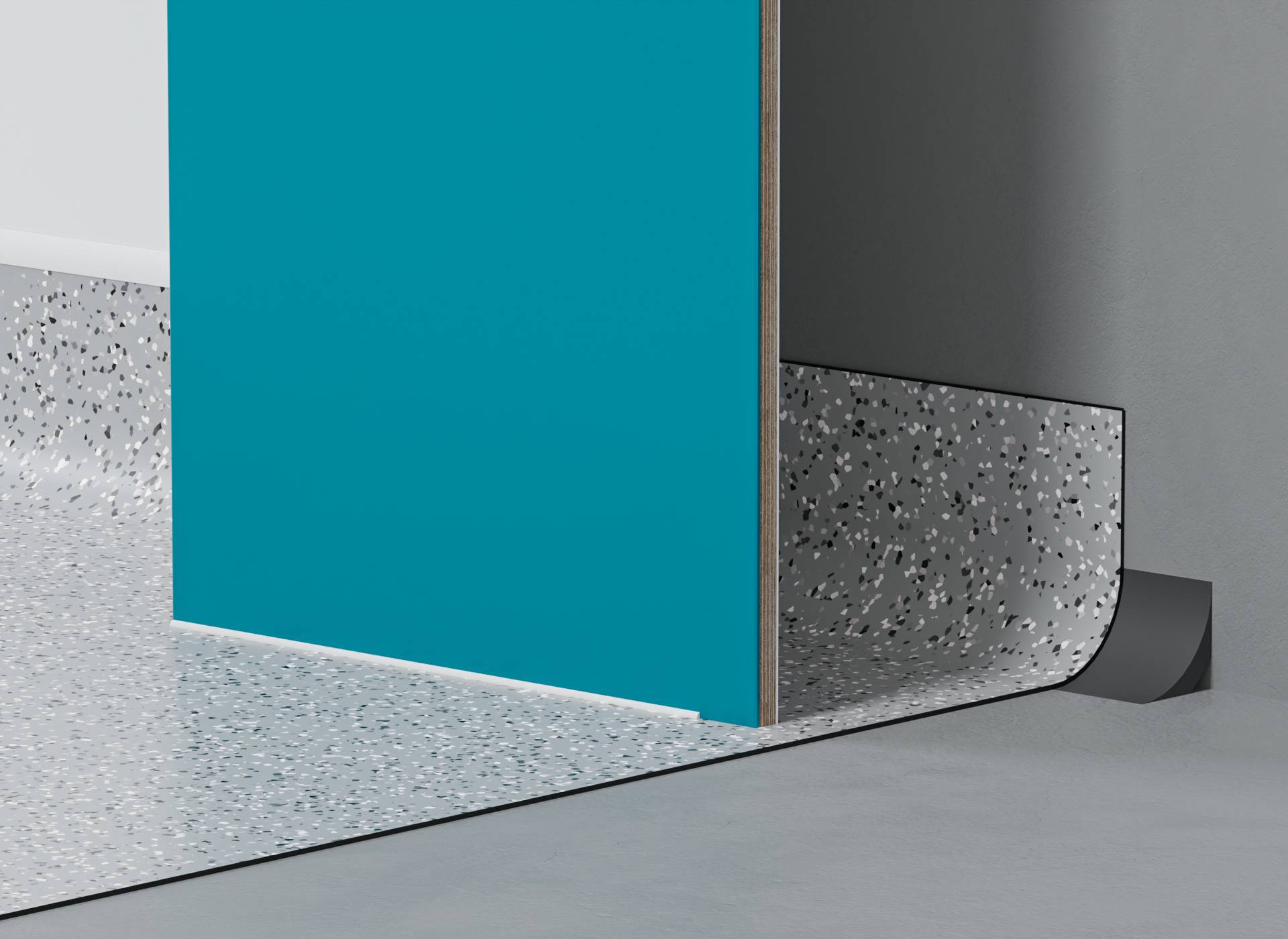

Hygipod IPS offers three floor interface options to suit different installation requirements. These include a Trovex-supplied plinth for a hygienic, coved floor finish, direct-to-floor installation onto existing surfaces, and a prefinished plinth for a clean, finished appearance without floor coving.

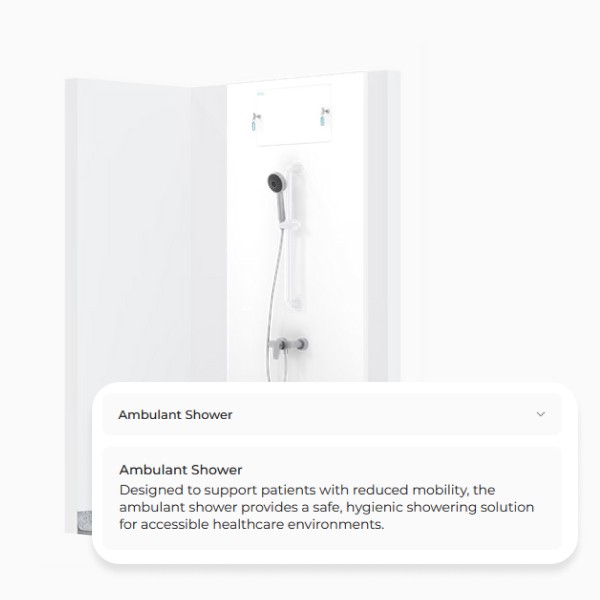

Choose configuration
Select from a range of Hygipod IPS sanitaryware configurations to suit your application.

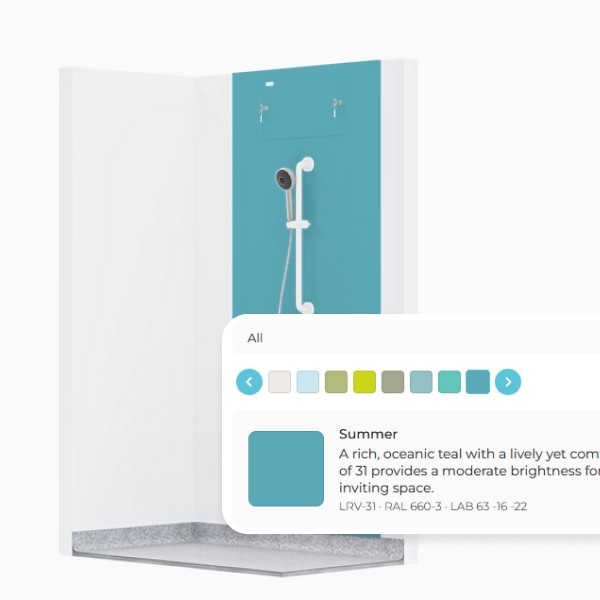

Customise IPS
Adjust mounting type, height, and panel colour to match your project requirements and design preferences.

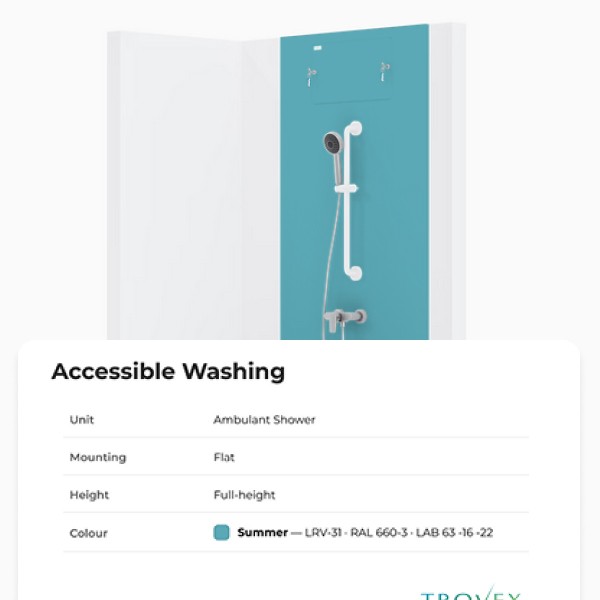

Share design
Export your configured design to share with colleagues or submit directly to receive a detailed quote for your project.
Integrated plumbing system
Accessible washing FAQs
Accessible washing FAQs
There are three options. The Hygipod plinth is the most common, supplied by Trovex and installed before floor finishes, allowing vinyl flooring to cove up to it for a hygienic seal at floor level. Direct to floor suits projects where the floor finish already exists, though it's not recommended where the ceiling is solid. The prefinished plinth is similar to the Hygipod plinth but laminated in Trovex PVC, providing a finished appearance where vinyl coving isn't required.
Yes. As well as full-height options that run to or through the ceiling, the Hygipod IPS is available in two half-height variants: flat top and sloping top. Both can be manufactured to any height to suit the installation. The sloping top option is commonly specified at 1,450mm and is designed to discourage items being placed on top of the unit, supporting hygiene compliance.
The Hygipod IPS comes in five configurations: flat, flush, single-return, double-return, and wall-to-wall. All share the same seamless, easy-clean PVC finish and compliant design. The standard width is 750mm across most configurations, with the wall-to-wall option spanning between opposing walls at a project-specific width. Alternative widths and depths are available across the range.

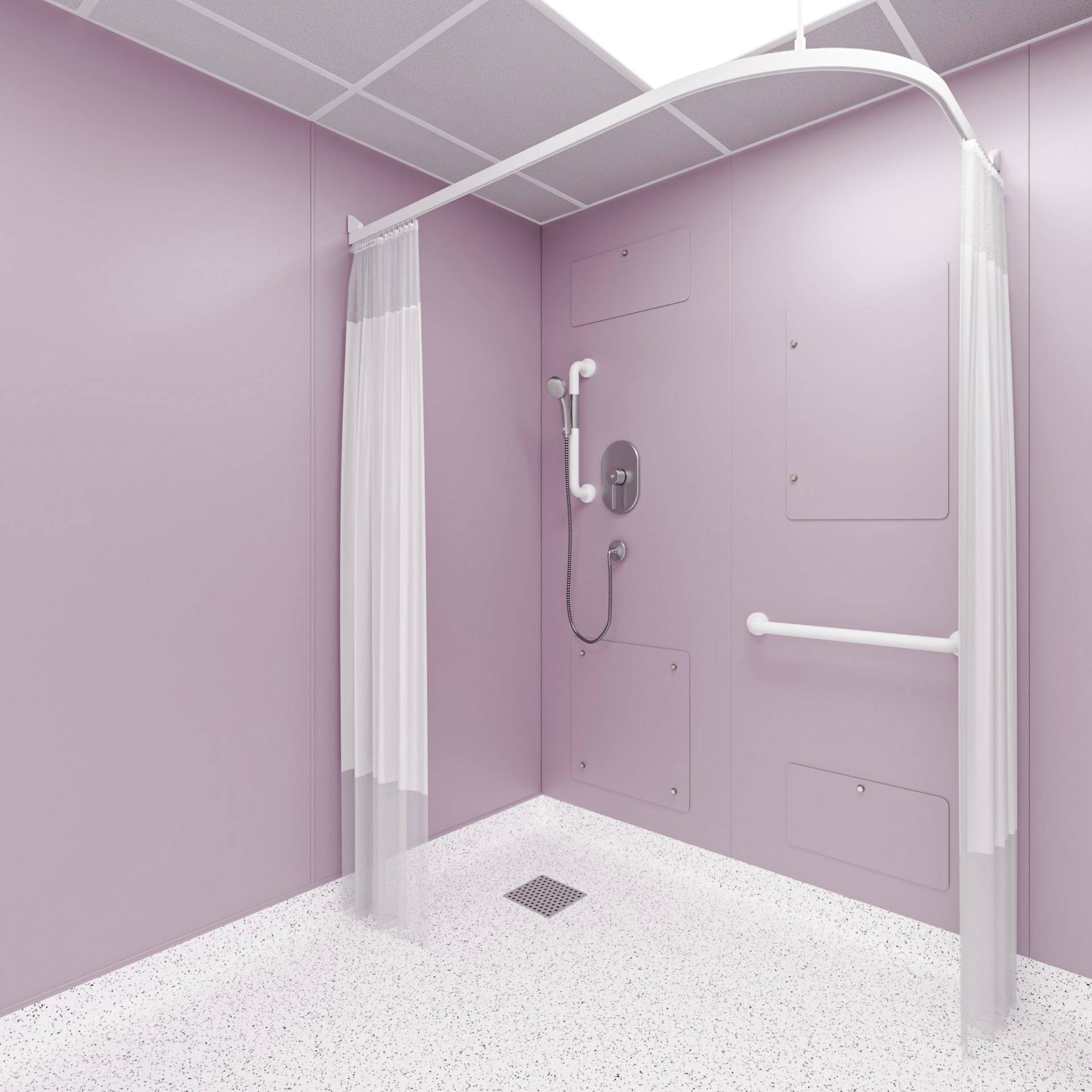

The Hygipod IPS Accessible Washing range includes the Ambulant Shower, designed to support patients with reduced mobility. It provides a safe, hygienic showering solution for accessible healthcare environments, combining the robust, pre-plumbed construction of the Hygipod IPS system with a compliant layout suited to ambulant and assisted use. Supplied pre-plumbed and pre-tested, it simplifies installation while meeting the hygiene and accessibility requirements of modern healthcare settings.
Hygipod IPS
Other configurations
One hygienic finish
One hygienic finish
