The reduced-ligature, pre-plumbed integrated plumbing system that makes mental healthcare washrooms safer, faster to build and easier to maintain.
The reduced-ligature, pre-plumbed integrated plumbing system that makes mental healthcare washrooms safer, faster to build and easier to maintain.
Why choose Hygipod Safe?
Low-ligature design
Low-ligature design
Flush doors, keyed locks, and tight gaps reduce ligature risks to meet secure guidance.
Ready to install
Ready to install

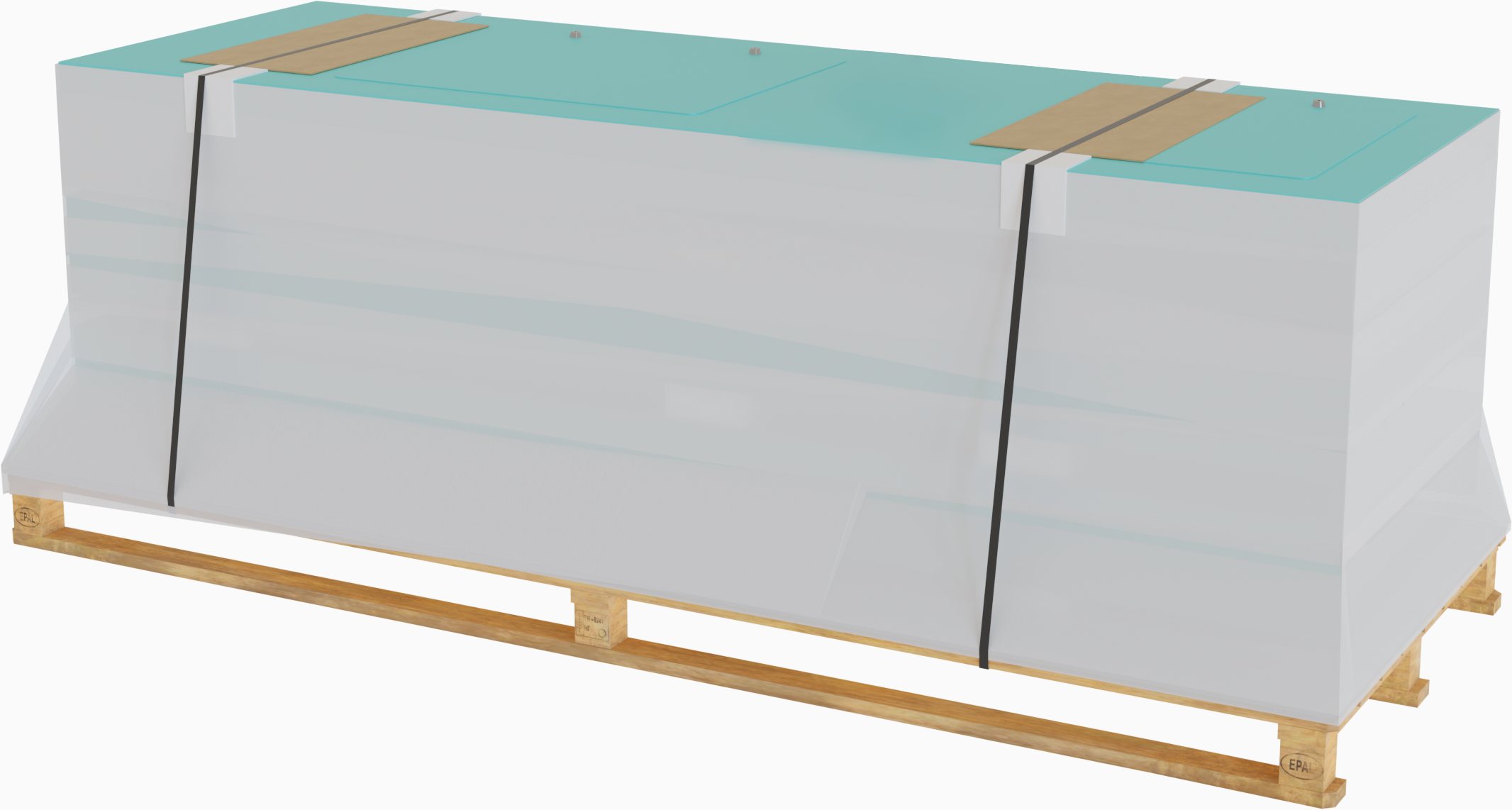

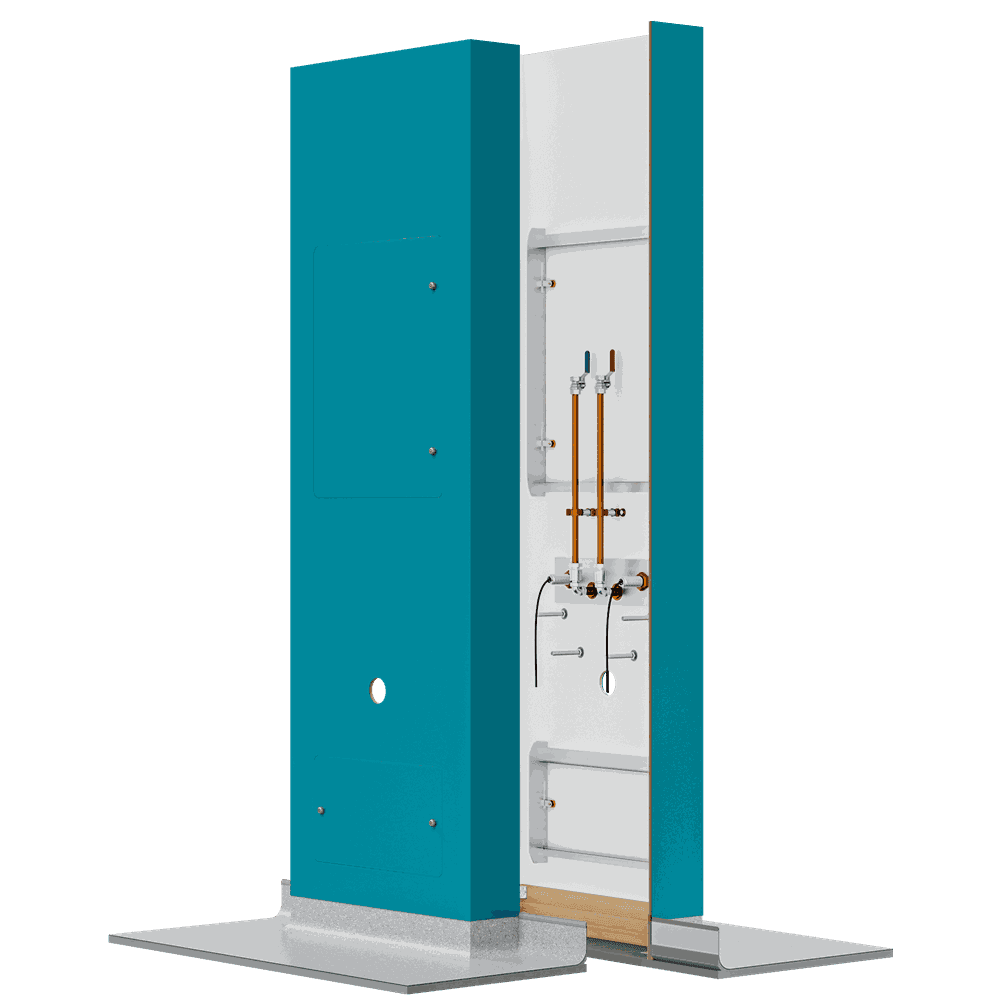

Pre-plumbed basin and copper tails for installs up to 50% faster than traditional IPS.
PVC finishes
PVC finishes

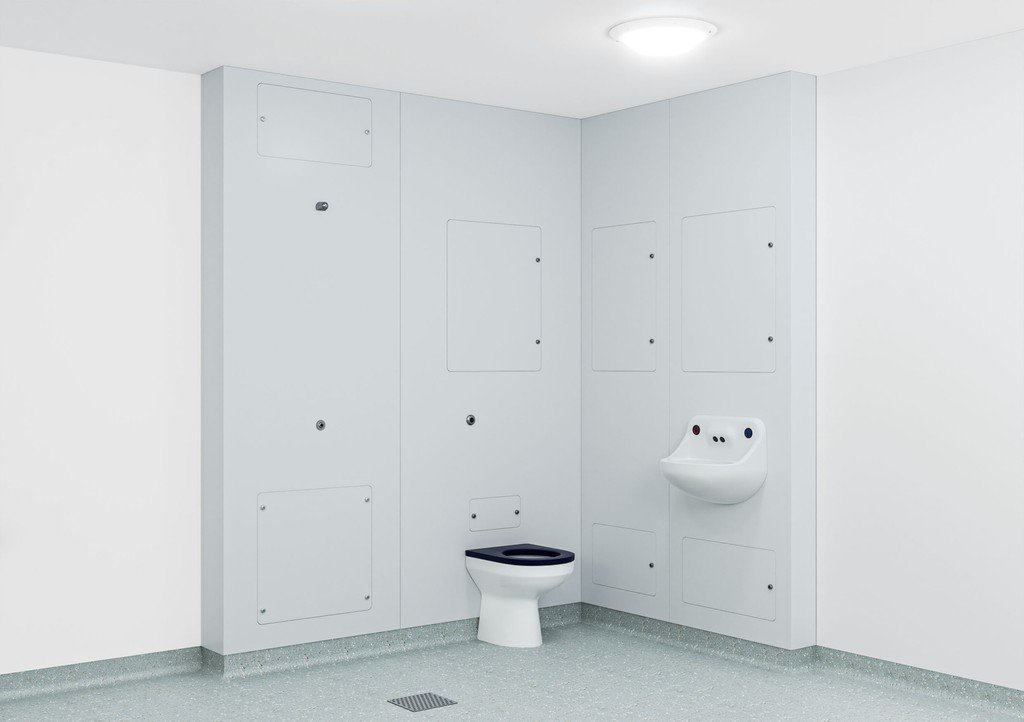

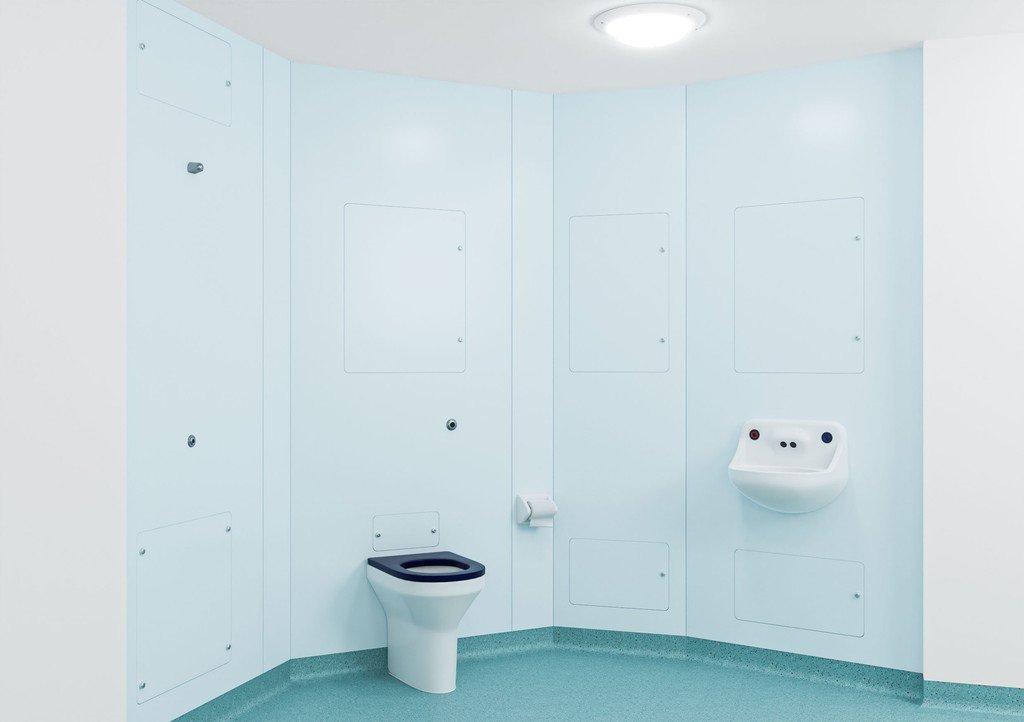

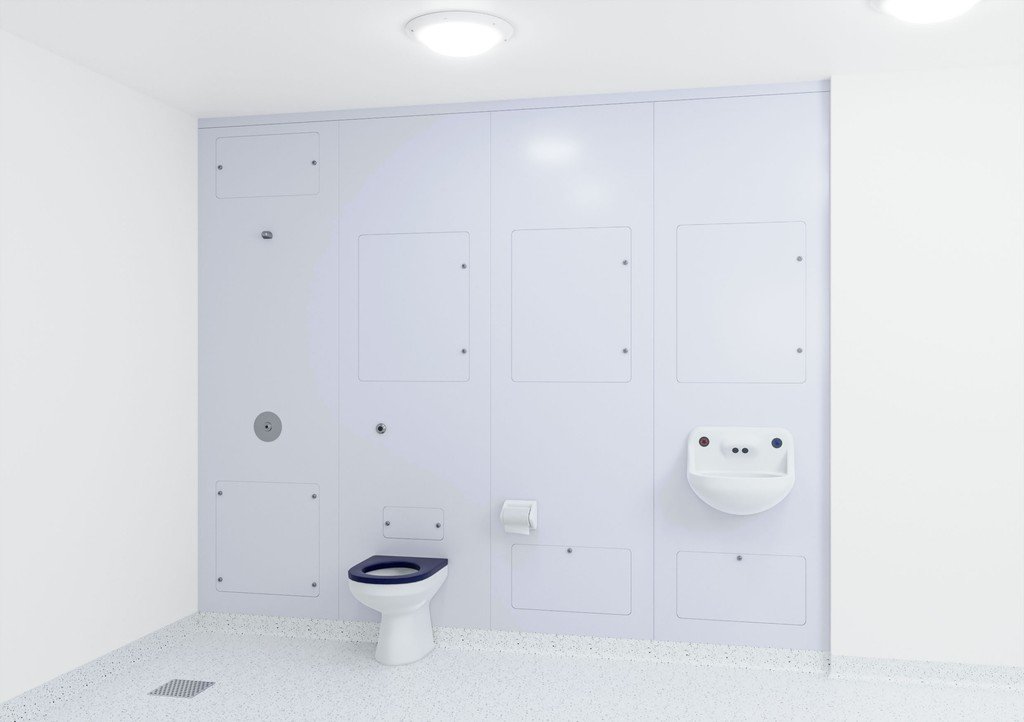

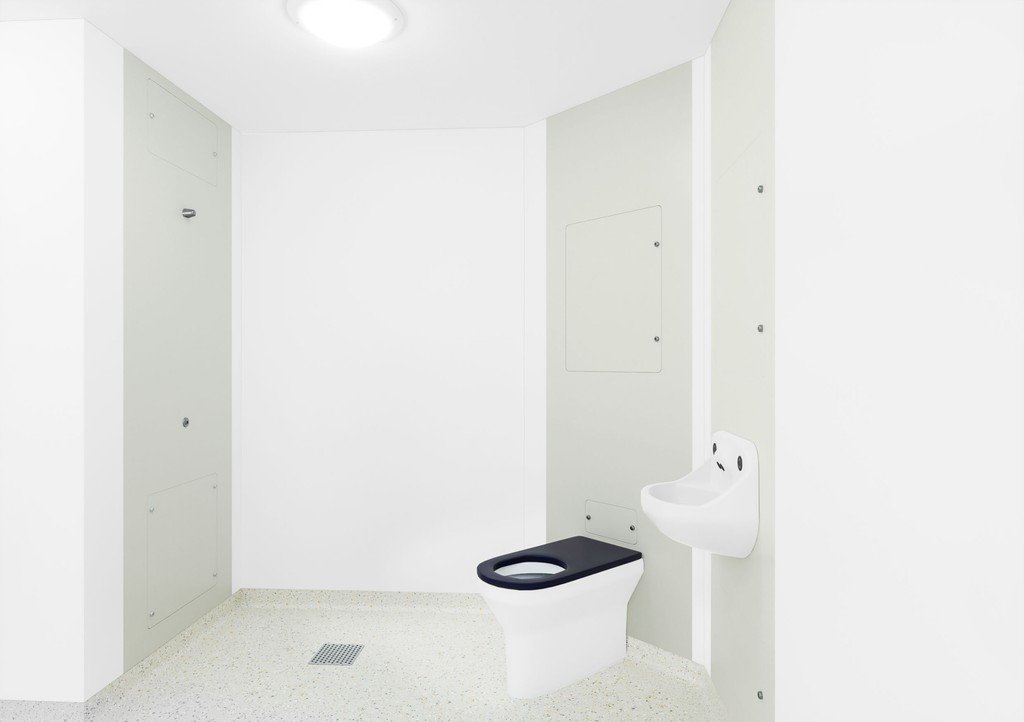

PVC surfaces in 45+ colours match wall cladding for seamless, durable, easy cleaning.
Strong & durable
Strong & durable

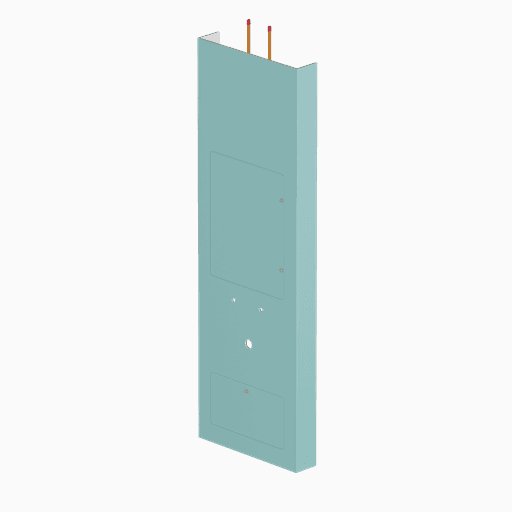

11-layer core with steel reinforcements built to endure tough healthcare use.
Secure & serviceable
Secure & serviceable
Hinged or removable panels let teams access systems easily for tests and repairs.
Hygienic PVC
Hygienic PVC
Seamless, non-porous PVC with rounded edges prevents bacteria build-up.

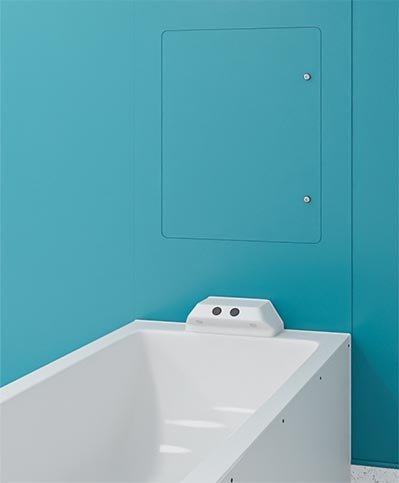

Secure locks & hinged access panels
Anti-pick secure locks are designed to resist tampering and unauthorised access, maintaining integrity even under repeated use. Reinforced hinged access doors incorporate a robust steel frame, enhancing durability while supporting reduced-ligature performance and improved vandal resistance.
Reduced ligature sanitaryware & tight tolerances

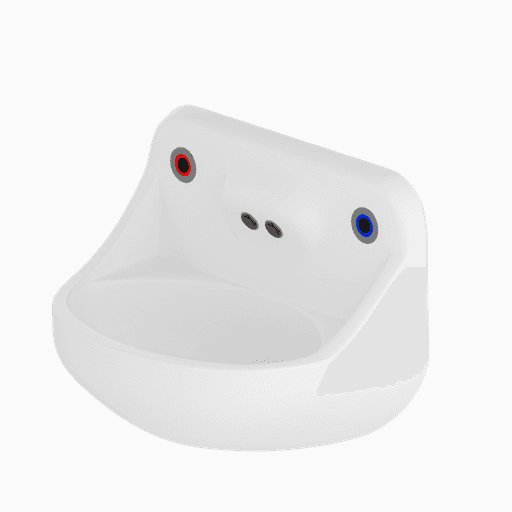

Sanitaryware is pre-assembled with precision cut-outs and pressure-tested pre-plumbing to minimise ligature risks and ensure reliable performance. A 0.7mm gap tolerance on all access doors provides a close, flush fit, enhancing reduced-ligature properties and limiting opportunities for misuse.
Safe & Tough
Variants

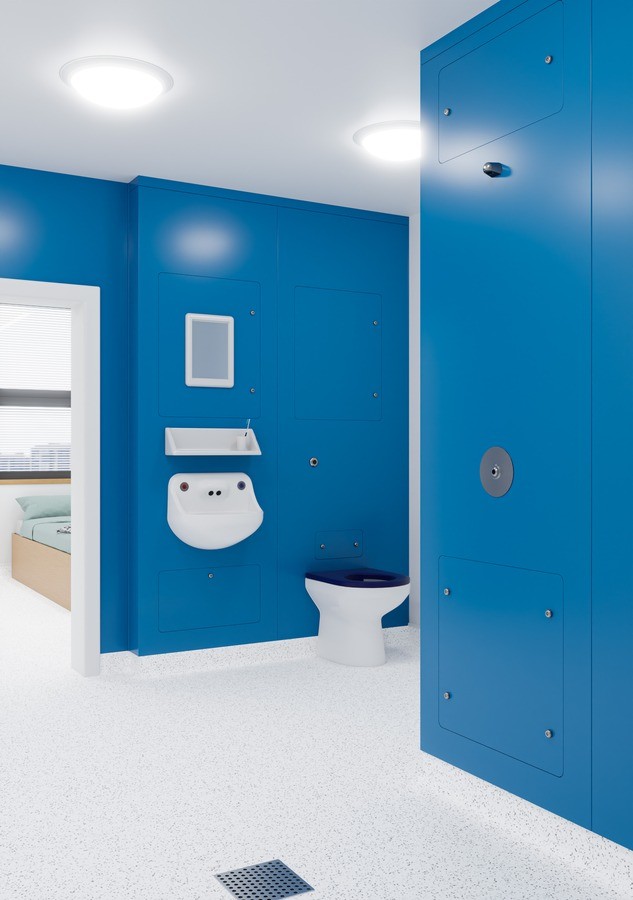

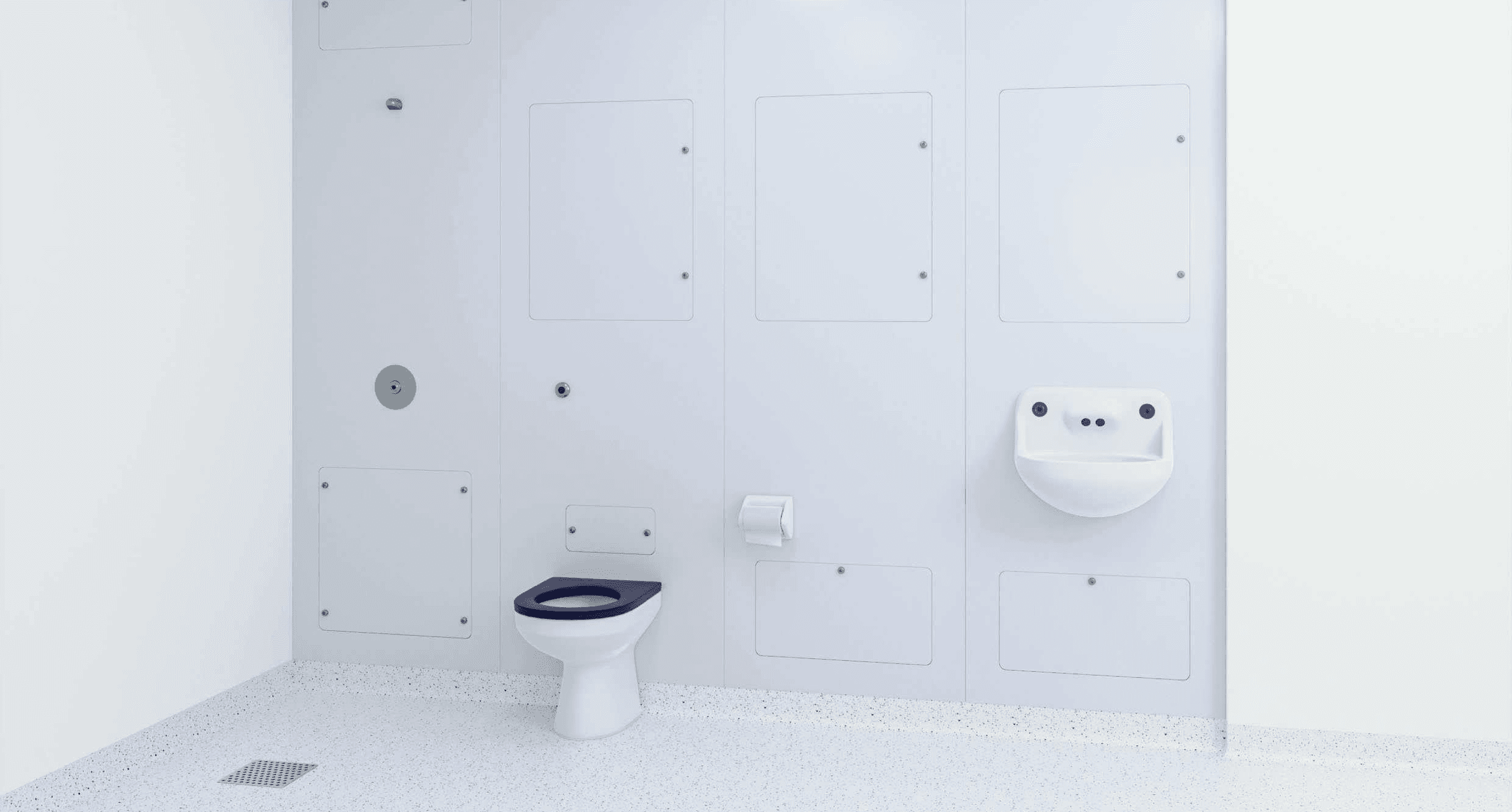

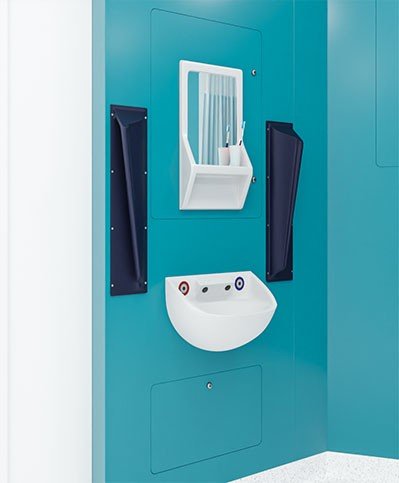

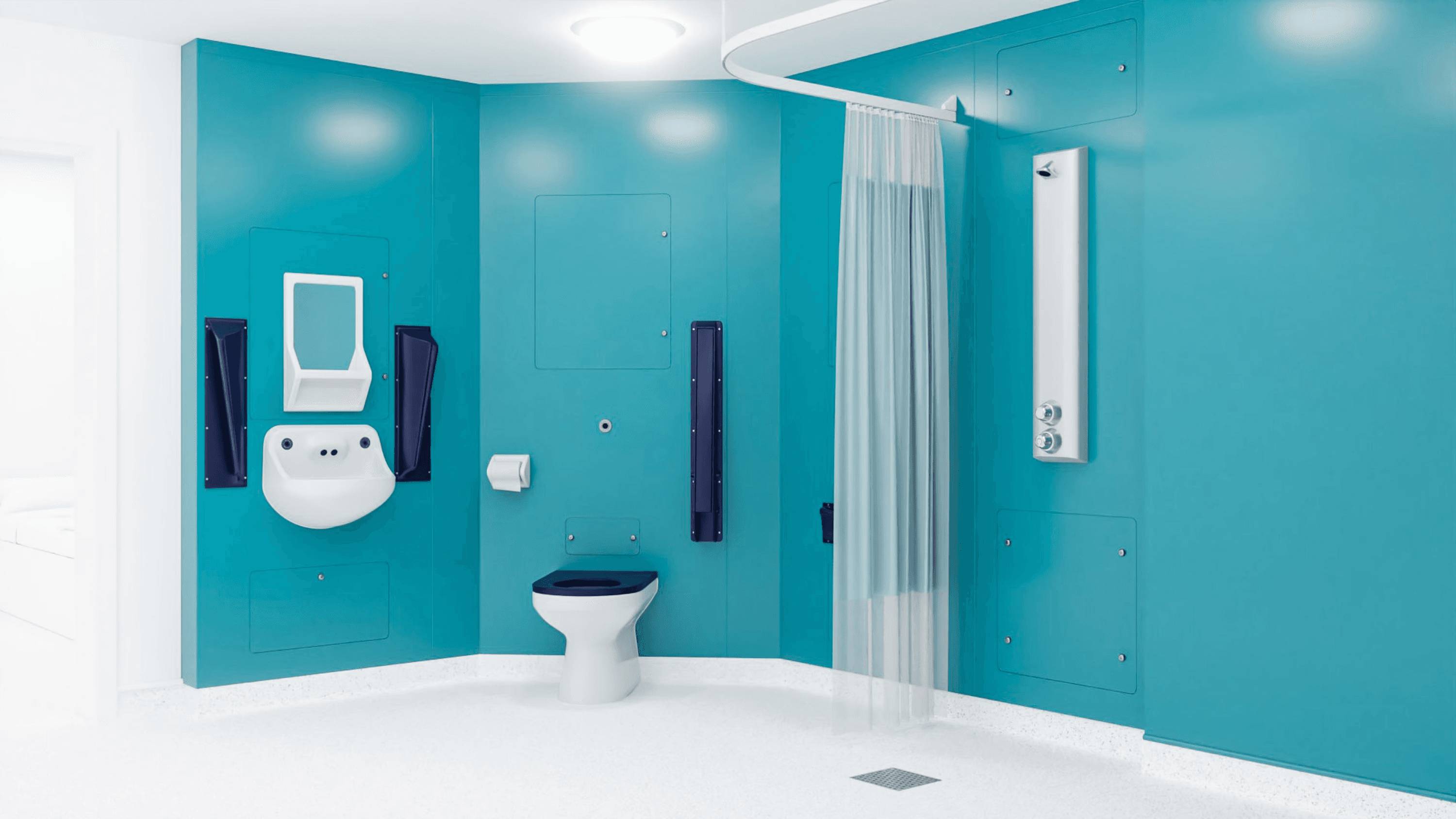

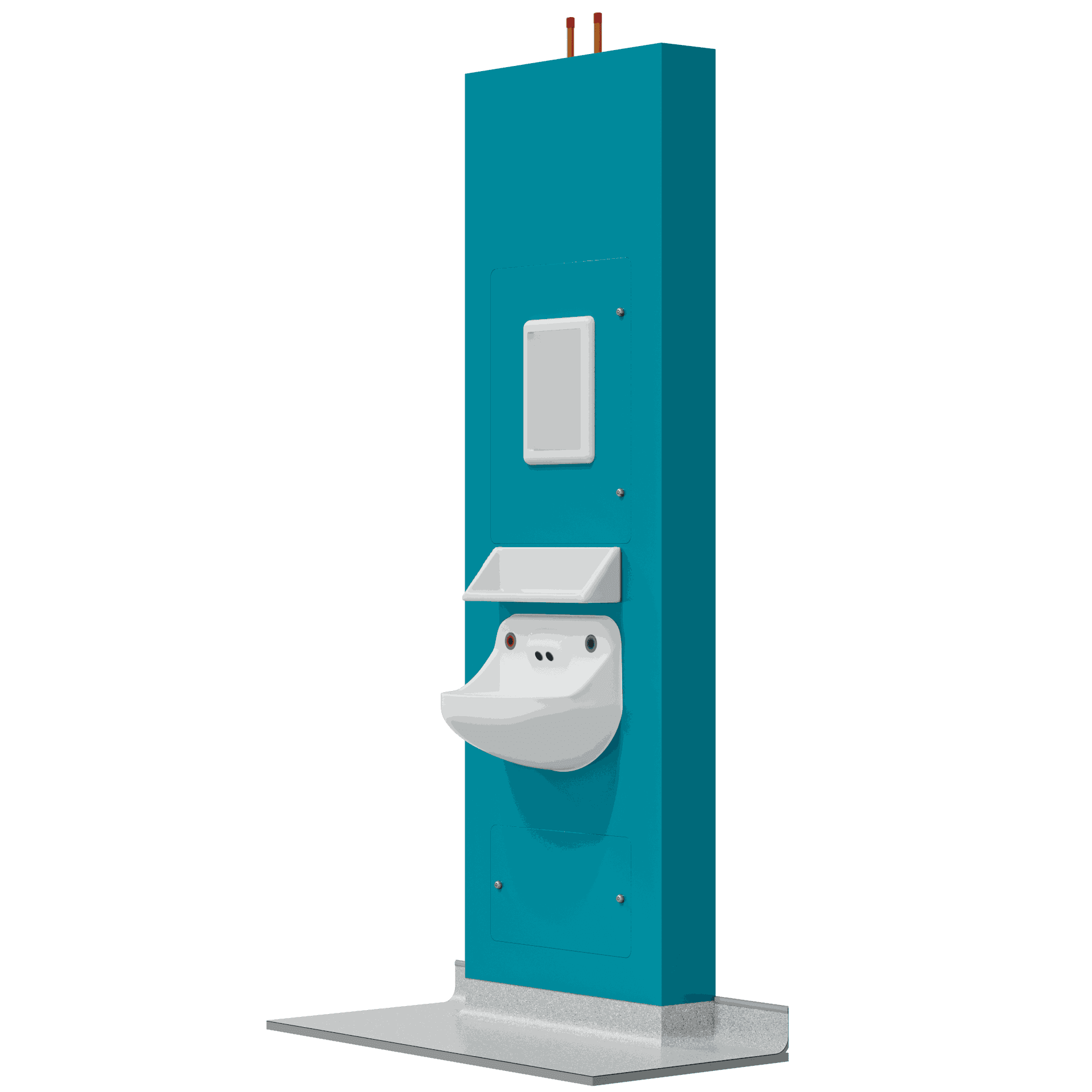

Available as standalone systems or combine to form complete roomsets.A reduced-ligature wash hand basin configuration with hinged or removable secure-lockable access panels for installation and maintenance. Includes a pre-plumbed basin and taps, anti-tamper locks, thermoformed edges and hygienic PVC surfaces.
Variants
Available as standalone systems or combine to form complete roomsets.A reduced-ligature wash hand basin configuration with hinged or removable secure-lockable access panels for installation and maintenance. Includes a pre-plumbed basin and taps, anti-tamper locks, thermoformed edges and hygienic PVC surfaces.
Height options

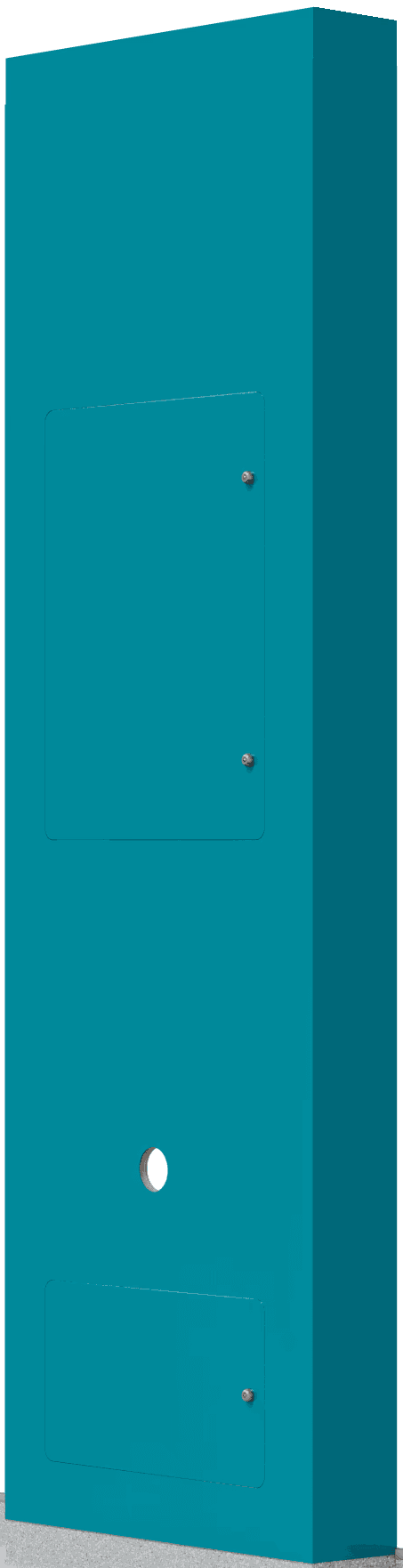

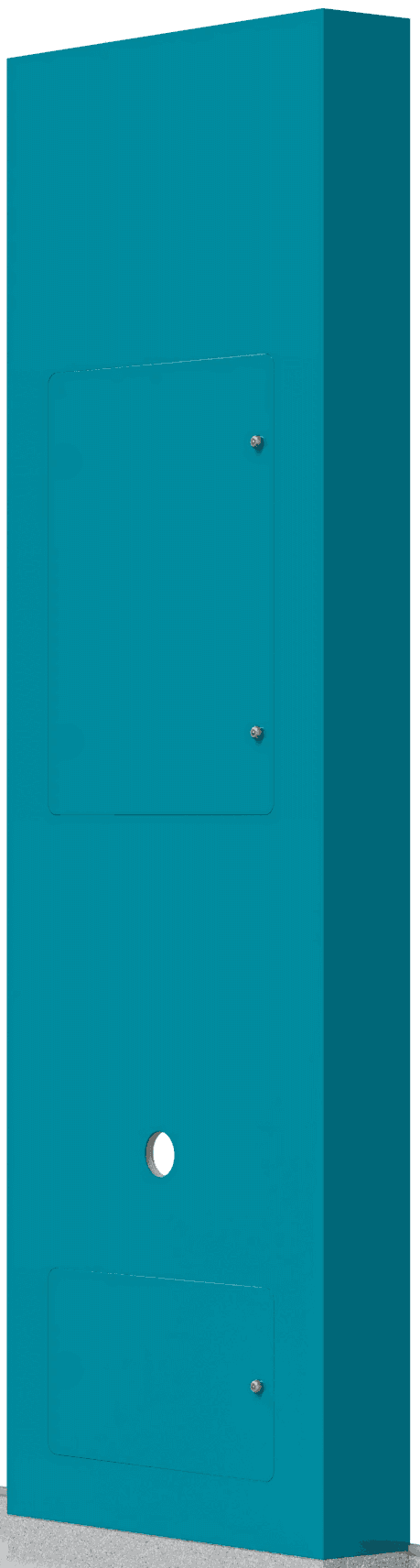

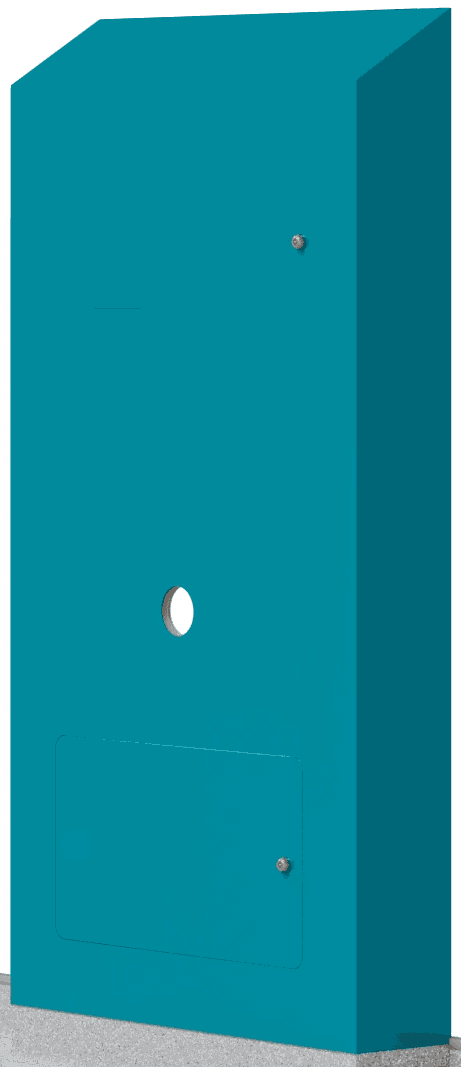

Hygipod Safe is available in three height variants including up to the ceiling (terminating flush at the soffit), or half-height with either a sloping or flat top. Through ceiling is available, but not common in high secure environments due to solid ceilings.
Hygipod Safe is designed for patient safety, featuring a reduced-ligature design that minimises the risk of self-harm and supports safer environments. Pre-plumbed with compliant sanitaryware, it ensures accurate, safe and efficient installation through simple processes. Built with a tamper-resistant design, including anti-pick high-secure locks and reinforced hinged access doors, Hygipod Safe provides dependable performance across low and medium secure settings, Section 136 suites and dementia care environments.
Height options
Hygipod Safe is available in three height variants including up to the ceiling (terminating flush at the soffit), or half-height with either a sloping or flat top. Through ceiling is available, but not common in high secure environments due to solid ceilings.
Hygipod Safe is designed for patient safety, featuring a reduced-ligature design that minimises the risk of self-harm and supports safer environments. Pre-plumbed with compliant sanitaryware, it ensures accurate, safe and efficient installation through simple processes. Built with a tamper-resistant design, including anti-pick high-secure locks and reinforced hinged access doors, Hygipod Safe provides dependable performance across low and medium secure settings, Section 136 suites and dementia care environments.
Height options
Hygipod Safe is available in three height variants including up to the ceiling (terminating flush at the soffit), or half-height with either a sloping or flat top. Through ceiling is available, but not common in high secure environments due to solid ceilings.
Hygipod Safe is designed for patient safety, featuring a reduced-ligature design that minimises the risk of self-harm and supports safer environments. Pre-plumbed with compliant sanitaryware, it ensures accurate, safe and efficient installation through simple processes. Built with a tamper-resistant design, including anti-pick high-secure locks and reinforced hinged access doors, Hygipod Safe provides dependable performance across low and medium secure settings, Section 136 suites and dementia care environments.
Hygipod Safe offers three floor interface options to suit different installation requirements. These include a Trovex-supplied plinth for a hygienic, coved floor finish, direct-to-floor installation onto existing surfaces, and a prefinished plinth for a clean, finished appearance without floor coving.
Frequently asked questions
Frequently asked questions
An anti-ligature washroom is a washroom facility for mental health environments where fixtures, fittings, and surfaces are engineered to reduce ligature risks and prevent self-harm. These washrooms eliminate potential anchor points through flush-mounted fixtures, concealed services, and specially designed sanitaryware.
Anti-ligature washrooms like Hygipod Safe use integrated plumbing systems (IPS) where all pipework, valves, and services are concealed within reinforced duct panels. Key safety features include flush doors with keyed locks, tight gaps preventing anchor points, rounded edges, seamless non-porous surfaces, and vandal-resistant components. Essential in psychiatric wards, secure mental health units, and facilities caring for vulnerable patients where safety is paramount alongside dignity.

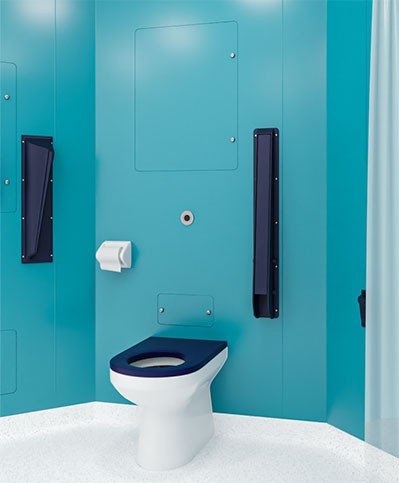

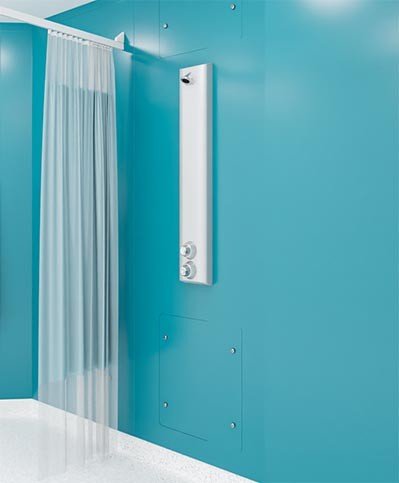

Anti-ligature washrooms prevent self-harm by eliminating potential ligature points through concealed services, flush-mounted fixtures, reinforced construction, and tamper-resistant hardware. Hygipod Safe systems use lockable hinged doors with keyed access, infrared flush actuation with no exposed buttons, and vandal-resistant shower heads to reduce risk.
The prevention strategy works on multiple levels: concealing all pipework and services within an 11-layer reinforced carcass removes visible anchor points; flush panel designs with tight gaps prevent insertion of ligatures; rounded edges eliminate sharp corners; and keyed locks restrict unauthorised access to service areas. Pre-plumbed IPS construction ensures consistent safety standards across every installation, with factory testing confirming all safety features meet secure guidance requirements before delivery to site.
Anti-ligature washroom features include flush-mounted doors, concealed services, tight tolerances, reinforced duct panels, rounded edges, vandal-resistant fixtures, and keyed maintenance access. Hygipod Safe incorporates an 11-layer core with steel reinforcements, seamless PVC finishes, and lockable panels to meet mental health safety standards.
Specific anti-ligature design features include: infrared flush actuation on toilets eliminating exposed buttons or levers; concealed cisterns and controls with no visible fixings; vandal-resistant shower heads with anti-tamper fasteners; flush panel construction minimising gaps between components; rounded corners and edges removing sharp protrusions; and non-porous seamless surfaces preventing material insertion. The reinforced carcass construction withstands impact whilst maintaining smooth external profiles. All hardware uses security screws and keyed access systems preventing patient tampering with service areas.
Ligature risks in washrooms include exposed pipework, protruding taps and fixtures, door handles, shower rails, towel hooks, toilet flush handles, gaps behind panels, sharp corners, and any anchor points where materials can be attached or looped. Standard washroom fixtures present multiple ligature opportunities.
In traditional washrooms, common ligature risks include pedestal basins with exposed traps and pipework, wall-mounted taps extending from walls, lever-style flush handles, shower heads on adjustable rails, conventional door handles and locks, gaps between panels and walls, service access panels with standard screws, and any protruding brackets or fixings. Anti-ligature IPS systems like Hygipod Safe address these risks by concealing all services, using flush designs, eliminating protrusions, minimising gaps, and securing all access points with keyed locks.
Anti-ligature washroom design requirements include eliminating ligature anchor points, concealing all services, minimising gaps and protrusions, using tamper-resistant fixtures, providing secure maintenance access, and meeting mental health facility guidance. Designs must balance patient safety with dignity, functionality, and ease of clinical maintenance.
Key design requirements include: flush-mounted construction with gaps under 6mm; concealed pipework within reinforced duct panels; vandal and tamper-resistant sanitaryware; non-removable fixtures secured with specialist fastenings; smooth, seamless surfaces with rounded edges; keyed access for maintenance preventing patient interference; infrared or push-button actuation eliminating levers; and robust construction withstanding impact. Hygipod Safe meets these requirements through factory-engineered IPS panels with 11-layer reinforced cores, lockable service access, and pre-tested anti-ligature fixtures. Compliance with secure mental health guidance ensures installations meet safety standards.
An anti-ligature washroom is a washroom facility for mental health environments where fixtures, fittings, and surfaces are engineered to reduce ligature risks and prevent self-harm. These washrooms eliminate potential anchor points through flush-mounted fixtures, concealed services, and specially designed sanitaryware.
Anti-ligature washrooms like Hygipod Safe use integrated plumbing systems (IPS) where all pipework, valves, and services are concealed within reinforced duct panels. Key safety features include flush doors with keyed locks, tight gaps preventing anchor points, rounded edges, seamless non-porous surfaces, and vandal-resistant components. Essential in psychiatric wards, secure mental health units, and facilities caring for vulnerable patients where safety is paramount alongside dignity.
Anti-ligature washrooms prevent self-harm by eliminating potential ligature points through concealed services, flush-mounted fixtures, reinforced construction, and tamper-resistant hardware. Hygipod Safe systems use lockable hinged doors with keyed access, infrared flush actuation with no exposed buttons, and vandal-resistant shower heads to reduce risk.
The prevention strategy works on multiple levels: concealing all pipework and services within an 11-layer reinforced carcass removes visible anchor points; flush panel designs with tight gaps prevent insertion of ligatures; rounded edges eliminate sharp corners; and keyed locks restrict unauthorised access to service areas. Pre-plumbed IPS construction ensures consistent safety standards across every installation, with factory testing confirming all safety features meet secure guidance requirements before delivery to site.
Anti-ligature washroom features include flush-mounted doors, concealed services, tight tolerances, reinforced duct panels, rounded edges, vandal-resistant fixtures, and keyed maintenance access. Hygipod Safe incorporates an 11-layer core with steel reinforcements, seamless PVC finishes, and lockable panels to meet mental health safety standards.
Specific anti-ligature design features include: infrared flush actuation on toilets eliminating exposed buttons or levers; concealed cisterns and controls with no visible fixings; vandal-resistant shower heads with anti-tamper fasteners; flush panel construction minimising gaps between components; rounded corners and edges removing sharp protrusions; and non-porous seamless surfaces preventing material insertion. The reinforced carcass construction withstands impact whilst maintaining smooth external profiles. All hardware uses security screws and keyed access systems preventing patient tampering with service areas.
Ligature risks in washrooms include exposed pipework, protruding taps and fixtures, door handles, shower rails, towel hooks, toilet flush handles, gaps behind panels, sharp corners, and any anchor points where materials can be attached or looped. Standard washroom fixtures present multiple ligature opportunities.
In traditional washrooms, common ligature risks include pedestal basins with exposed traps and pipework, wall-mounted taps extending from walls, lever-style flush handles, shower heads on adjustable rails, conventional door handles and locks, gaps between panels and walls, service access panels with standard screws, and any protruding brackets or fixings. Anti-ligature IPS systems like Hygipod Safe address these risks by concealing all services, using flush designs, eliminating protrusions, minimising gaps, and securing all access points with keyed locks.
Anti-ligature washroom design requirements include eliminating ligature anchor points, concealing all services, minimising gaps and protrusions, using tamper-resistant fixtures, providing secure maintenance access, and meeting mental health facility guidance. Designs must balance patient safety with dignity, functionality, and ease of clinical maintenance.
Key design requirements include: flush-mounted construction with gaps under 6mm; concealed pipework within reinforced duct panels; vandal and tamper-resistant sanitaryware; non-removable fixtures secured with specialist fastenings; smooth, seamless surfaces with rounded edges; keyed access for maintenance preventing patient interference; infrared or push-button actuation eliminating levers; and robust construction withstanding impact. Hygipod Safe meets these requirements through factory-engineered IPS panels with 11-layer reinforced cores, lockable service access, and pre-tested anti-ligature fixtures. Compliance with secure mental health guidance ensures installations meet safety standards.
